25A M26 5 Pin Waterproof Circular Connector
25A M26 5 Pin Waterproof Circular Connector
25A M26 5 Pin Waterproof Circular Connector
25A M26 5 Pin Waterproof Circular Connector
Specifications
Brand Name :
HYFD
Model Number :
SQ26
Certification :
CE,RoHS,IP68,CQC
Place of Origin :
Mainland China
MOQ :
200/500
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20K sets per month
Delivery Time :
5~12 working days depending on exact order quantities
Packaging Details :
Carton
Material :
Nylon PA66
Contact material :
Brass
Finish :
Gold
Pin Numbers :
2/3/4/5/6/8 Pin
Wire OD :
6.0-12.5MM
Color :
Black
Mechanical life :
1500 mating cycles
Rated voltage :
300V AC.DC
Rated current :
5A~25A
Working temperature :
-40~105℃
Description

Waterproof Circular Connector M26 5 Pin Waterproof Connector IP68 Circular Power Connector

Introductions and features:

1) SQ26 LED Tape Light Connector IP68, soldering type.

2) 25A high current capacity.

3) Multi poles available, such as 3+6pin, 3+9pin, 3+12pin, 17pin, 19pin, 24pin.

4) Spiral locking with military standard.
5) Optional shell color to meet different environmental requirements.

Application:

It is widely used for safe control and power connections between equipment and LED driver, LED lighting etc.

Product Parameters:

Item name SQ26 LED Tape Light Connector IP68 Connecting code Soldering assembly
Current rating 5A-25A Operating temperature -40℃--105℃
Operating voltage 300V Wire OD 6.0~12.5mm
Mechanical life 1500 mating cycles Contact pin material Gold plated brass
Contact resistance ≤5mΩ Shell material Nylon(PA66)
Contacts numbers 2p, 3p, 4p, 5p, 6p, 8p, 17p, 19p, 24p, 2+3p, 3+6p, 3+9p, 3+12p Waterproof level IP68
Cable specification 0.3mm2~4.0mm2 Seal-O-Ring Silicon

Packing Details:

1) Carton.

2) Plastic bag.

3) Customized packing as per requirement.

Service

We are a professional manufacturer who owns a factory. We can provide you with:

● Cable and hardware production

● Independent research and development

● Injection molding and mould making

● Perfect assembly workshop

With us, you can get the best goods in shortest time.

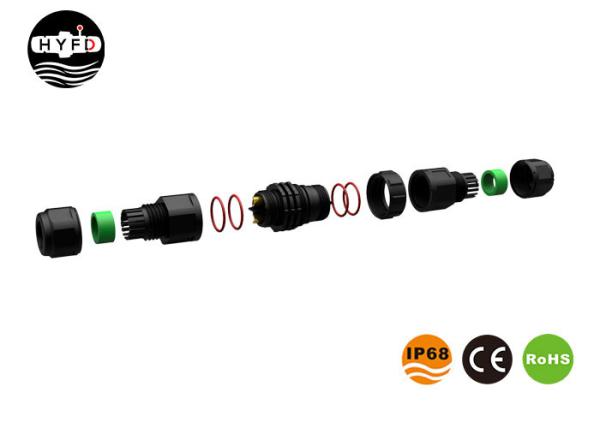

Product Details
