14500 3.2V600mah Lithium LiFePO4 Battery
14500 3.2V600mah Lithium LiFePO4 Battery
14500 3.2V600mah Lithium LiFePO4 Battery
14500 3.2V600mah Lithium LiFePO4 Battery
14500 3.2V600mah Lithium LiFePO4 Battery
14500 3.2V600mah Lithium LiFePO4 Battery
14500 3.2V600mah Lithium LiFePO4 Battery
14500 3.2V600mah Lithium LiFePO4 Battery
Specifications
Brand Name :
Purple Horn
Model Number :
3.2V LiFePO4 Battery AA 14500 600mah
Certification :
MSDS REACH ROHS
Place of Origin :
China
MOQ :
10PCS/ORDER
Price :
negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union
Supply Ability :
100,000pcs/Day
Delivery Time :
3-5days
Packaging Details :
Package according to product specification
MOQ : :
200PCS
Payment Terms : :
TT, LC, Paypal etc
Nominal Capacity : :
600mAh
Minimum Capacity : :
550mAh
Nominal Voltage : :
3.2V
Circle life : :
2000times
warranty : :
12 months
pvc : :
blue or oem
Description

3.2V LiFePO4 Battery Cell AA 14500 600mah for Solar Lamp and Led

Some company called this model 14505 also, in order to avoid misunderstand , pls take close attention to below information

IFR14500 3.2v flat type

IFR14505 3.2V Top type

The size is High:50.0±0.5mm Diameter: 14.3±0.2 mm

Pls check the max size if your measure with strict require .

Features:

1. 14500 /14505 cell ,the rated voltage is 3.2V and the normal capacity is 600mAh

2. Widely application in solar product field.

3. There are a varity of capacity for your choose,such as 250mAh,400mAh,500mAh,600mAh etc.

4. deep cycle life is about 2000 times

5. the cell is flat type can be assembled various lithium pack

6.Lithium Ion AA 3.2v Lifepo4 Battery 600mah For Led Lamp and Solar Lamp

Application:

  1. Solar LED light
  2. Lawn lap
  3. Digital camero
  4. Electrial toy
  5. Flash light

BatterySpecification For IFR14500/AA 600mAh 3.2V LiFePO4 Battery Cell for Solar Light,Flashlight

No. Items Specifications Remark
1 Nominal Capacity 600mAh 0.2C Standard discharge
2 Minimum Capacity 550mAh
3 Nominal Voltage 3.2V Mean Operation Voltage
4 Delivery voltage 3.28~3.32V Within 10 days from Factory
5 Charge Voltage 3.65V±0.03V By standard charge method
6 Standard charging method 0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C
7 Charge current 0.2C 120mA Standard charge, charge time about 7h(Ref)
1.0C 600mA Rapid Charge, charge time about: ::1.5h(Ref)
8 Standard discharging method 0.2C constant current discharge to 2.5V,
9 Cell Internal Impedance ≤60m&OPurple Horn; Internal resistance measured at AC 1KHZ after 50% charge

Test Standard For Charge And Discharge With IEC Standard

10 Maximum charge current 1C 600mA For continuous charging mod
11 Maximum discharge current 3C 1800mA For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity)
12 Operation Temperature and relative humidity Range Charge

0~45℃

60±25%R.H.

 Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
Discharge

-20~60℃

60±25%R.H.
13 Storage temperature for a long time

-20~25℃

60±25%R.H.

 Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.

Pictures for3.2V LiFePO4 Battery Cell AA 14500 600mah for Solar Lamp and Led :

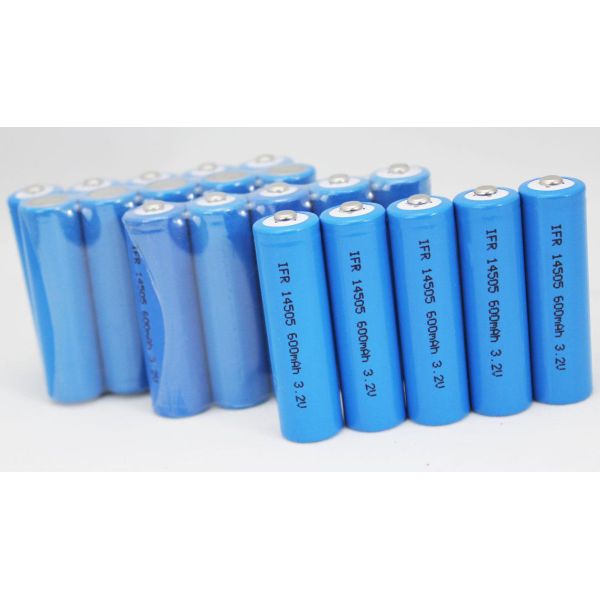

Flat cell picture

14500 3.2V600mah Lithium LiFePO4 Battery
