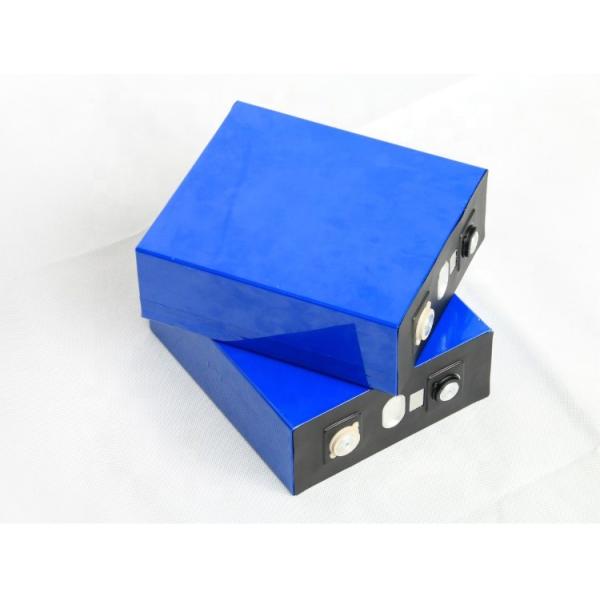

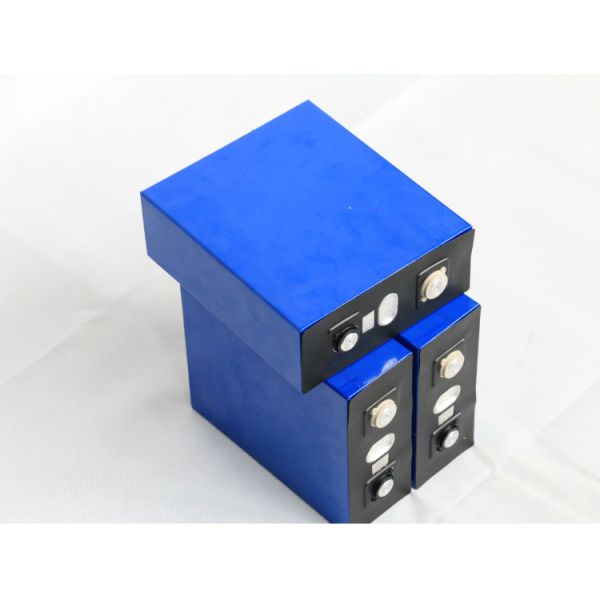

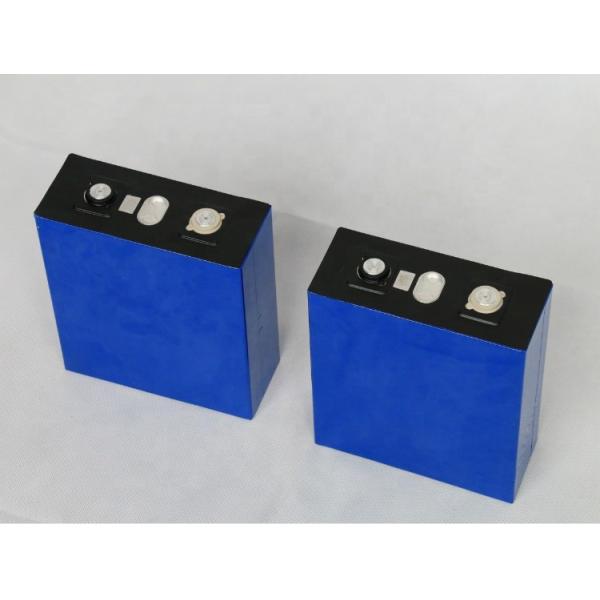

MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
Specifications
Brand Name :
Purple Horn
Model Number :
LFP 3.2V 202Ah LiFePO4 cell
Certification :
CE, RoHS,MSDS
Place of Origin :
China
MOQ :
10PCS/ORDER
Price :
negotiable
Supply Ability :
1000000pcs/day
Delivery Time :
3-5days
Packaging Details :
Standard Package
Warranty: :
5Year
LifeCycle: :
>6000times (100%DOD)
Battery Capacity: :
202Ah
Voltage: :
3.2v
Cell Size :
52*174*201mm
Weight: :
4.1KG
Description

3.2V 202Ah LiFePo4 prismatic battery Deep Cycle for Solar battery pack LFP prismatic battery

Key Specifications/Special Features:
Nominal Voltage:3.2V
Nominal Capacity:202Ah
Battery Dimension:52*174*201mm

3.2V 202AH LiFePO4 Lithium Battery cell

• High lifespan: Six thousand cycles and more (see chart)
• Deep discharge allowed up to 100 %
• Ultra safe Lithium Iron Phosphate chemistry (no thermal run-away, no fire or explosion risks)
• Embedded BMS (Battery Management System) : improve lifespan AND secure the battery
• No Lead, no heavy metal, no toxic element • Calendar life > 10 years
• Excellent temperature robustness (-20 °C up to +60 °C)
• Flexible deployment : up to 10 packs in parallel and 4 in serial
• Constant power during discharge (very low internal resistance)
• Very low Peukert's losses (energy efficiency >96 %)
• Very low self discharge (<3 % per month)>
• No memory effect
• About 50% lighter and 40% smaller than equivalent Lead-AGM battery with same usable energy
• Certification : CE, RoHS,MSDS

Nominal Voltage 3.2V
Capacity 202Ah
Core size 52*174*201mm
Cell Weight 4.1KG
Charging Current Standard Charging:0.2C
Max Charging:1C
Max Discharging Rate Continuous Discharging:2C
Cut-off Voltage Charging:3.65V
Discharging:2.5V
Internal Resistance ≤ 0.5m&OPurple Horn; (At 0.2C rate, 2.0V cut-off)
Working Temperature Charging: -10°C~55°C
Discharging: -20°C~70°C
Storage Temperature ≤1month: -10–45°C
≤3month: 0–30°C
≤6month: 20±5°C
Life Cycle >6000 times (100%D0D)

MSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy PackMSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy PackMSDS 3.2V 202Ah Lithium LiFePO4 Battery Deep Cycle For Solar Energy Pack
