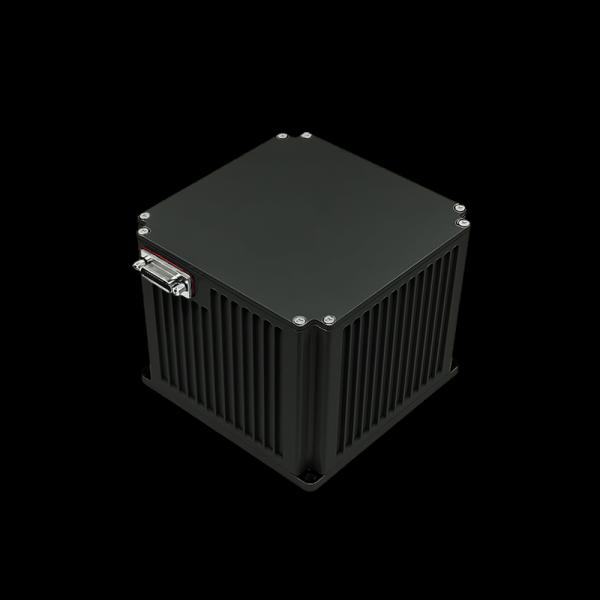

Small Size High Accuracy TDF51IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions


♦ Overview

Fiber optic inertial units have the advantages of small size, light weight, low power consumption, and high accuracy. They can be used to design pure strapdown, single axis, and dual axis modulation inertial units, meeting the needs of new unmanned platforms, water/torpedo weapons, as well as land and airborne weapon platforms for small size and high-precision inertial unit equipment. They have dynamic measurement functions for carrier angular and linear motion information.



♦ Performance

Project Content Index Notes
Performance indicators of gyroscope
Zero bias indicator Zero bias stability (100s) 0.05°/h
Zero bias stability (10s) 0.1°/h
Variable temperature zero bias stability 0.1°/h
Scale Factor Full temperature scale factor ≤200ppm
Other indicators Random walk coefficient 0.008°/√h
Input range 400°/s
Performance indicators of accelerometer
Deviation index Deviation monthly comprehensive error 50μg
Zero bias indicator Zero bias temperature sensitivity 50μg/℃
Scale Factor Scale factor monthly comprehensive error 50ppm
Scale factor temperature sensitivity 50ppm/℃
Range indicator Input range ±20g
Whole machine characteristics
Environmental performance indicators Operation temperature -40℃～60℃
Storage temperature -45℃～70℃
General requirements Power supply 18～36V(DC)
Stable power consumption ≤12W Startup power consumption ≤ 25W



♦ Electrical interfaces

Pin Connectivity Signal name Signal characteristics
1,14 External power supply PCS power supply positive 24V
2,15
PCS power supply ground Power Ground
10 200Hz signal output IMU_TX1+ IMU data output positive
9
IMU_TX1- IMU data output negative
7 Synchronization signal IMU_SYN+ IMU synchronization signal positive
6
IMU_SYN- IMU synchronization signal negative



♦ Structural appearance and dimensions
