F51 IMU Inertial Measurement Unit with High Precision Compact Size and Low Power Consumption for Speed Log Applications
F51 IMU Inertial Measurement Unit with High Precision Compact Size and Low Power Consumption for Speed Log Applications
F51 IMU Inertial Measurement Unit with High Precision Compact Size and Low Power Consumption for Speed Log Applications
F51 IMU Inertial Measurement Unit with High Precision Compact Size and Low Power Consumption for Speed Log Applications
Specifications
Brand Name :
Navioprics
Model Number :
F51 IMU
Certification :
CCS
Place of Origin :
China
MOQ :
one set
Payment Terms :
T/T
Supply Ability :
30 set per month
Delivery Time :
15 Days
Packaging Details :
carton box
Display Type :
Color LCD
Power Usage :
12-24 VDC
Display Size :
4.3 inches
Receiver Type :
33 inch Tri-Antenna
Weight :
Lightweight, approx. 1-2 kg
Transmission Frequency :
1605.0 ～ 27500.0kHz(100Hz steps)
Mkd :
1 set
Water Depth :
Deeper than 3 m
Data Cable :
1 pcs.
Rms Interface :
Built in
Distance Run :
0-999,999.99 NM,resettable to any value.
Components :
Accelerometer, Gyroscope, Magnetometer
Strobe Light :
24 flashes per minute (>1cd)
Data Storage Capacity :
2G
Sensitivity :
Less than 6 dB  V at SINAD 20 dB
Antenna Type :
Open Array
Operating Method :
Dual beam, pulse Doppler sensing.
Working Temperature :
﹣10℃~50℃
Test :
-10 and 40 kn
Description

I Introduction

The Inertial Measurement Unit (IMU) features advantages such as compact size, light weight, low power consumption, and high precision. It can be used to design pure strapdown, single-axis, and dual-axis modulated inertial navigation systems, meeting the demand for small-size, high-precision inertial navigation equipment in new unmanned platforms, underwater/torpedo weaponry, as well as land-based and airborne weapon platforms. It possesses the capability for dynamic measurement of carrier angular and linear motion information.

II.Technical Parameters

Item

Indicator

Description

Parameter

Remark

Gyro

Zero Bias

Bias Stability (100s)

0.04°/h

Zero Bias Stability at Variable Temperature (100s)

0.1°/h

Temperature Variation Rate 1℃/min(-40℃~60℃)

Scaling Factor

Scale Factor Nonlinearity

≤20ppm

Other Indicators

Random Walk Coefficient

0.005°/½h

Input Range

400°/s

Accelerometer

Deviation

Zero Bias Repeatability

50μg

Zero Bias

Bias Temperature Sensitivity

50μg/℃

Scaling Factor

Scale Factor Repeatability

50ppm

Scale Factor Temperature Sensitivity

50ppm/℃

Range Indicators

Input Range

±20g

Characteristics

Environmental Performance

Operating Temperature

-40℃～60℃

Storage Temperature

-45℃～70℃

General Requirements

Power Supply

18～36V(DC)

Stable Power Consumption

≤16W

Startup Power Consumption ≤20W

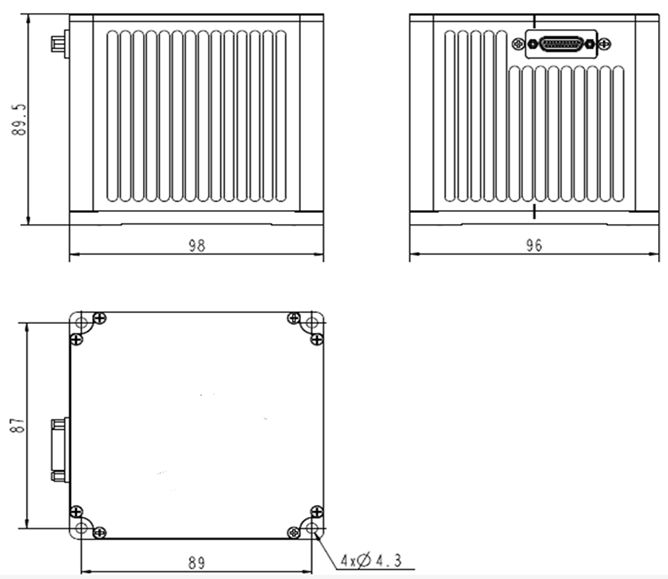

Mounting Hole Diameter

4-Φ4.3mm

Dimensions(mm)

98×96×89.5

Weight

≤1500g

F51 IMU Inertial Measurement Unit with High Precision Compact Size and Low Power Consumption for Speed Log Applications
