802.3at 48V Standard Power Over Ethernet Switch , Fast 24 Port POE Network Switch
802.3at 48V Standard Power Over Ethernet Switch , Fast 24 Port POE Network Switch
Specifications
Brand Name :
Yuncore
Model Number :
SP-926-P48/ SP-926HP-P48
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 PCS/ WEEK
Delivery Time :
4 working days
Packaging Details :
Giftbox + Carton box
Material :
Metal
Chipset :
Realtek
Packet Forwarding Rate: :
56.0 Gbps
MAC address table :
8K
Standard :
IEEE802.3af/at standard
Ports :
24*10/100/100MbPS PoE Ports,2* Gigabit SFP port, 2*gigabit UPLINK port
Support :
AUTO Negotiation/AUTO MDI/MDIX
POE Output :
48V, IEEE 802.3af/at Standard
Description
24 Ports Fast Ethernet 802.3at 48V Standard Power Over Ethernet Switch , Plug and Play

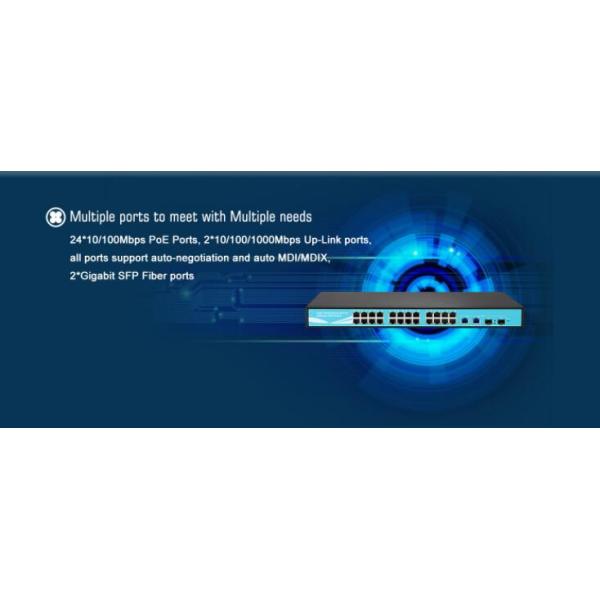

SP-926 is 26 ports PoE Switch comply with IEEE802.3af/at PoE standard, made up by 24*10/100Mbps PoE ports, 2*Gigabit uplink ports, 2*SFP fiber injector. designed with desktop/rack-mount metal case, easy to provide power and Ethernet for wireless access point, IP camera...

For SP-926, all 26 RJ45 ports support auto-negotiation, auto MDI/MDIX, for high density PD equipment environment; To guarantee the important data transmission without any delay, it deal with flow classification based on different environment and application.

This PoE switch with max 300W/450W power supply, 30W for each PoE ports, fully work with IEEE 802.3af/at standard PoE PD equipment, simply plug and play, With the innovative energy-efficient technology, users can choose the PoE switch according power consumption, making it an eco-friendly solution for business networking. such as hotel, campus, industry zone, shopping mall...

Mark:


1．10M/100Mbps link Indicator
2．10M/100Mbps auto-negotiation, auto MDI/MDIX RJ45 Ports
3．10/100/1000Mbps auto-negotiation, auto MDI/MDIX Up-Link Port
4．10/100/1000Base-T RJ45 Port Link LED Indicator
5．1000Base-X SFP Fiber Port
6．1000Base-X SFP Fiber Port Link LED Indicator
7．Power Indicator

Spec:

Ports

24* 10/100M RJ45 PoE Ports

2 * 10/100/1000M RJ45 Up-Link Ports

2 * 1000M SFP Fiber Ports
Compatible Fiber Module

nMXPD-243S

nSFP-SM

nTL-SM311LS

nH8518P1BNL-H3C

nGLC-LH-SMD

nOSG010N05
Functions Storage and forwarding
Back bandwidth:4.8Gbps
MAC Address Table: 8K
PoE Starndard IEEE802.3af,IEEE802.3at
Max Port PoE power 30W
Max Power 300W / 450W
DC Input 100－240V～ 50/60Hz
PoE Standard

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

IEEE 802.3af

IEEE 802.3at
Working Temperature 0ºC ~ 50ºC
Storage Temperature -40ºC ~ 70ºC
Working Humidity 10% ~ 90% RH
Storage Humidity 5% ~ 90% RH
EMI GB9254-2008 Class A
UL GB4943-2001
Size (L×W×H) 440×284×44
Weight 4 kg

Working Diagram:

802.3at 48V Standard Power Over Ethernet Switch , Fast 24 Port POE Network Switch

802.3at 48V Standard Power Over Ethernet Switch , Fast 24 Port POE Network Switch

802.3at 48V Standard Power Over Ethernet Switch , Fast 24 Port POE Network Switch
