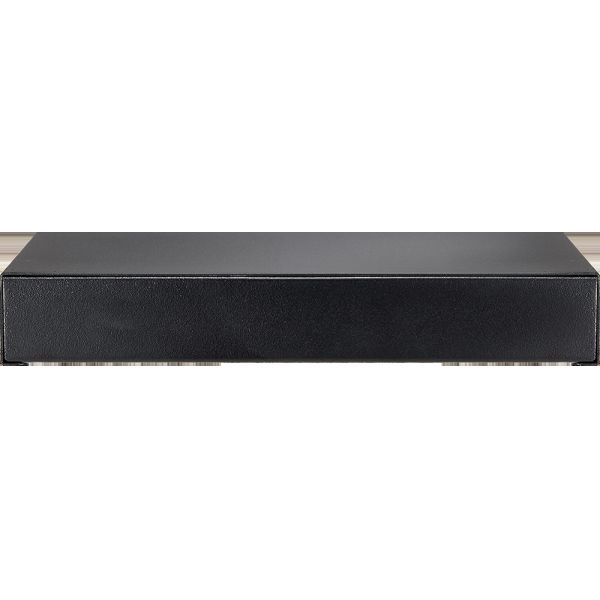

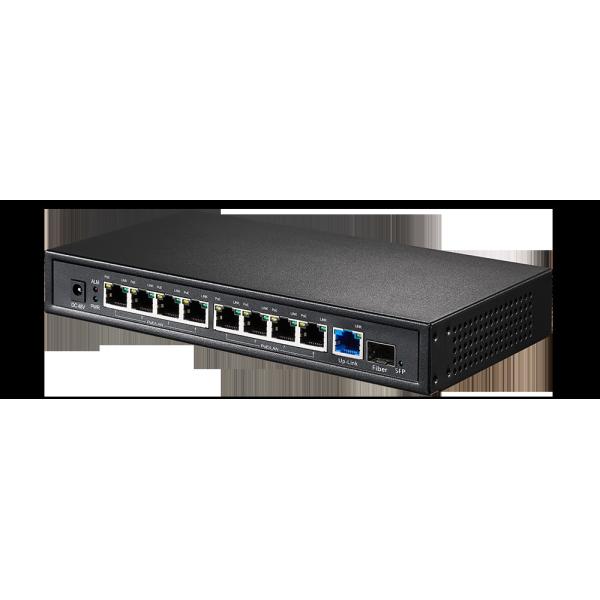

8-Port Gigabit Un-Management PoE Switch 802.3at 48V Standard With +1*Gigabit Up-Link Port +1*Gigabit SFP Port
8-Port Gigabit Un-Management PoE Switch 802.3at 48V Standard With +1*Gigabit Up-Link Port +1*Gigabit SFP Port
8-Port Gigabit Un-Management PoE Switch 802.3at 48V Standard With +1*Gigabit Up-Link Port +1*Gigabit SFP Port
8-Port Gigabit Un-Management PoE Switch 802.3at 48V Standard With +1*Gigabit Up-Link Port +1*Gigabit SFP Port
8-Port Gigabit Un-Management PoE Switch 802.3at 48V Standard With +1*Gigabit Up-Link Port +1*Gigabit SFP Port
8-Port Gigabit Un-Management PoE Switch 802.3at 48V Standard With +1*Gigabit Up-Link Port +1*Gigabit SFP Port
8-Port Gigabit Un-Management PoE Switch 802.3at 48V Standard With +1*Gigabit Up-Link Port +1*Gigabit SFP Port
8-Port Gigabit Un-Management PoE Switch 802.3at 48V Standard With +1*Gigabit Up-Link Port +1*Gigabit SFP Port
Specifications
Brand Name :
OEM
Model Number :
SP-1009-P48/ SP-1009HP-P48
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 PCS/ WEEK
Delivery Time :
7 working days
Packaging Details :
Giftbox + Carton box
Material :
Metal
Chipset :
RTL8370MB+MSC PD69104
Packet Forwarding Rate: :
20.0 Gbps
MAC address table :
4K
Standard :
IEEE802.3af/at standard
Ports :
8*10/100/1000MbPS PoE Ports,1* Gigabit SFP port, 1*gigabit UPLINK port
Support :
AUTO Negotiation/AUTO MDI/MDIX
POE Output :
48V, IEEE 802.3af/at Standard
Description
9 Ports Gigabit 802.3at 48V Standard PoE Switch with Gigabit SFP port , Plug and Play

SP-1009 Series PoE switch is an 9 ports 10/100/1000Mbps PoE switch with Gigabit PoE ports, uplink port injector and SFP fiber injector, designed with desktop/rack-mount metal case, easy to provide power and Ethernet for wireless access point, IP camera...

For SP-1009, all ports support auto-negotiation, auto MDI/MDIX, 8 ports support standard IEEE 802.3af/at POE, simply plug and play. With the innovative energy-efficient technology, users can choose the PoE switch according power consumption, making it an eco-friendly solution for home/business networking.

Main Features:


1. Desktop/rack-mount metal case, easy to set up.
2. 8*10/100/1000Mbps PoE Ports, comply with IEEE802.3af/at PD equipment, 1*10/100/1000Mbps Up-link port, 1*SFP Fiber port
3. Support PoE power up to 30W for each PoE port, total 96W for SP-1009, or 120W for SP-1009HP.
4. Port priority: if all PoE PD equipment power consumption become overloaded, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Spec:

Model

SP-1009

SP-1009HP
Ports 9*10/100/1000Mbps auto Negotiation /auto MDI/MDIX RJ45 Ports
8*10/100/1000Mbps PoE ports
1*10/100/1000Mbps up-link port
1*SFP Fiber Port
Cable requirement 10BASE-T: UTP 3,4,5 cable(≤100 meters)
100BASE-TX: UTP 5 cable(≤100 meters)
1000BASE-TX: UTP 5 cable(≤100 meters)
IEEE802.3 af Support/15.4W
IEEE802.3at Support/30W
POE

SP-1009: 96W, 48V-2A；

up to 30W for PoE port

SP-1009HP: 120W, 48V-2.5A；

up to 30W for PoE port
Overload Protection SP-1009: 85W
SP-1009HP: 112W
LED Indicator PWR(Power), POE,LINK, ALM(Alarm)
Size(L*W*H) 250mm*122mm*35mm
Working Environment Working Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Working Humidity: 10%~90% No Condensation
Storage Humidity: 5%~90% No Condensation
Input Power

SP-1009:DC 48V/2A

SP-1009HP: 48V/2.5A
POE Power

SP-1009:96W

SP-1009HP: 120W
MAX Port PoE Power 30W
PoE Standard IEEE 802.3, 802.3u, 802.3x, 802.3af,802.3at
CSMA/CD, TCP/IP
Advanced Functions Comply with IEEE 802.3at/af PDs
Port Priority Function
Wire-speed forwarding
MAC Address Auto-Learning and Auto-Aging.
IEEE802.3X Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
MAC Address Table 4K
Backplane Bandwidth 20Gbps
Forwarding Rate 10BASE-T:14880pps/port
100BASE-TX:148800pps/port
1000BASE-TX:148800pps/port
