2.4Ghz 150Mbps Outdoor Wireless CPE with QCA9531 CPU - Model CPE150-P24
2.4Ghz 150Mbps Outdoor Wireless CPE with QCA9531 CPU - Model CPE150-P24
2.4Ghz 150Mbps Outdoor Wireless CPE with QCA9531 CPU - Model CPE150-P24
2.4Ghz 150Mbps Outdoor Wireless CPE with QCA9531 CPU - Model CPE150-P24
2.4Ghz 150Mbps Outdoor Wireless CPE with QCA9531 CPU - Model CPE150-P24
2.4Ghz 150Mbps Outdoor Wireless CPE with QCA9531 CPU - Model CPE150-P24
2.4Ghz 150Mbps Outdoor Wireless CPE with QCA9531 CPU - Model CPE150-P24
2.4Ghz 150Mbps Outdoor Wireless CPE with QCA9531 CPU - Model CPE150-P24
Specifications
Brand Name :
OEM
Model Number :
CPE150
Certification :
CE, FCC, ROHS, TUV
Place of Origin :
China
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000PCS/ WEEK
Delivery Time :
4 working days
Packaging Details :
Giftbox + Carton box
Material :
ABS
Chipset :
QCA9531
Flash :
16M
RAM :
64M
WiFi Standard :
IEEE802.11b/g/n
PoE :
24V passive
Distance :
3KM
RF Power :
1000mW
Description

150Mbps Wireless Poe Outdoor Dustproof Waterproof ODU Outdoor Wireless Bridge

CPE150SR is a 150Mbps outdoor long distance wireless AP/CPE with Qualcomm Chipset, build in 12dBi high gain directional antenna, 2KM point to point distance. It support Wireless AP, Gateway, WISP, Wireless Bridge operation mode, effective solution for PTP, PTMP application and outdoor long range wifi coverage application. With an outdoor waterproof and dustproof enclosure,buidling in lighting protection IC, support 24V passive PoE, CPE150SR can be used in various weather conditions


Features:


1000mW High Power, More WiFi Range


CPE150SR's RF power can reach to 1000mW, equipped with 12dBi Panel Antenna, PTP WiFi distance up to 2000 meters. Meanwhile, the RF Power is adjustable for different country to comply with different WiFi Standards in different country


Multi operation mode for different application environment.


CPE150SR support multi operation mode such as Gateway, Wireless AP, Repeater, WISP, WDS mode to meet with multi application for different environment.


PoE Power and DC Power together make installation flexibility


CPE150SR support 24V passive PoE for some areas where power outlets are not readily available; It support DC power supply for some area near to power socket, flexibility in installation


Excellent Outdoor Weatherproof and Lighting Protection


With an outdoor waterproof and dustproof enclosure,buidling in lighting protection IC, CPE150 can be used in various weather conditions for stable performance

Spec:

Specification:

Hardware:
Chipset Qualcomm QCA9531
Wireless 802.11N, 2T2R 150M MIMO Technology
Memory 64MB RAM (128MB available by extra cost)
Flash 16MB Flash

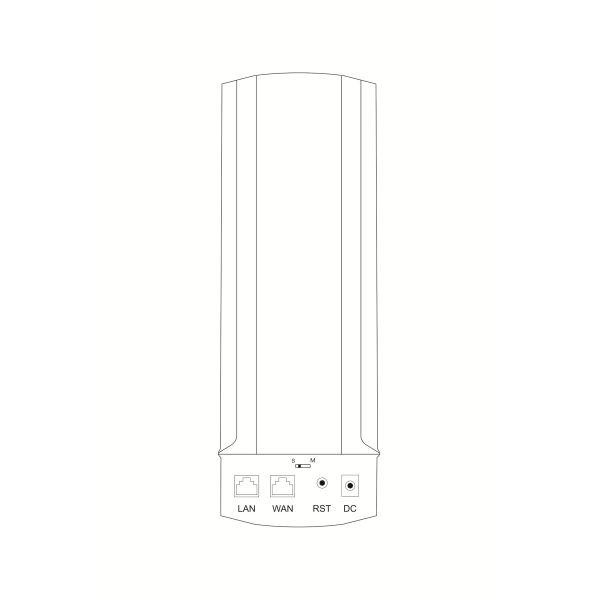

Interface 2 * 10/100 Mbps RJ45 Port, support 12~24V PoE
1 * Reset Button
1 * DC Jack, 12V/1A
Antenna 12dBi Panel Antenna
LED Light POWER WIFI WAN LAN
Size 230X75X40MM
Power 12V(POE 24V)/1A;110V/220V
RF Data
RF Data 802.11b/g/n:
2.312GHz to 2.4835GHz
Korea, Japan, ETSI, FCC, Debug
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Data Rate 150 Mbps
Receive Sensitivity

802.11n:25±2 DB

802.11g:26±2 DB

802.11b:27±2 DB .
RF Output Power

802.11n: -88dbm@MCS0,-65dbm@MCS7

802.11g: -88dbm@6Mbps;-70dbm@54Mbps

802.11b: -94dbm@1Mbps; -80dbm@11Mbps
EVM

802.11n: ≤-28 DB

802.11g: ≤-25 DB

802.11b: ≤-10 DB
PPM ±20ppm
End Users 64

Working diagram:

2.4Ghz 150Mbps Outdoor Wireless CPE with QCA9531 CPU - Model CPE150-P24
