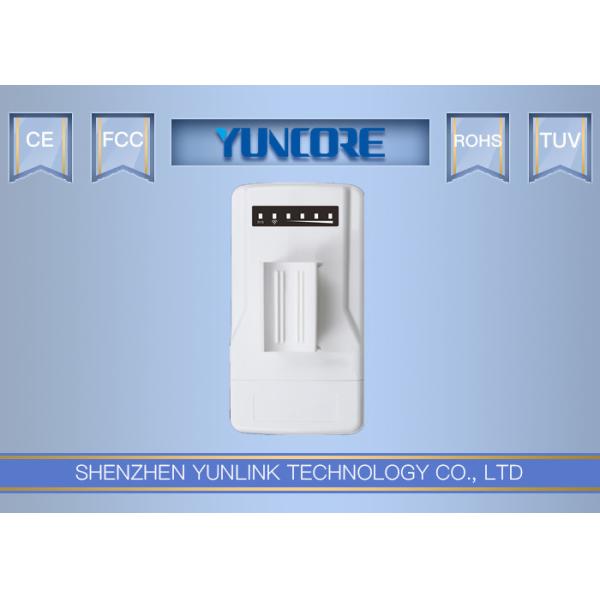

Qualcomm Solution 2.4 GHz Outdoor CPE , Outdoor Client Wireless WiFi Bridge
Qualcomm Solution 2.4 GHz Outdoor CPE , Outdoor Client Wireless WiFi Bridge
Specifications
Brand Name :
Yuncore
Model Number :
CPE130
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000PCS/ WEEK
Delivery Time :
4 working days
Packaging Details :
Giftbox + Carton box
Material :
ABS
Chipset :
QCA9531
Flash :
16M
RAM :
64M
WiFi Standard :
IEEE802.11b/g/n
PoE :
24V passive
Description

Qualcomm Solution 300mW Outdoor Wireless Client 300Mbps Data Rate 2.4 GHz Outdoor CPE

CPE130 is an economic type high power 300Mbps outdoor CPE/AP. Comply with IEEE 802.11b/g/n standard, adopt AR9531chipset, 300mW high power and 11dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 2000 meters.

It support Wireless AP, Gateway, WISP, Wireless Bridge, WDS operation mode, then there is a WDS switch button on the case, very easy to do the WDS PTP/PTMP connection by press the WDS switch button and reset button, zero configuration, save much human work and cost, more professional in outdoor wireless networking solution.

And it support special frequency from 2.312GHz to 2.4835GHz, total 27 channels, together with WiFi channel analysis tool, it make this outdoor CPE choose the best channel to avoid the WiFi Interference, to guarantee the stable wireless connection.

CPE130 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive, Meantime, it support 24V passive PoE, easy in setup even no power socket nearby, ideal for outdoor use;

Besides that, CPE-130 with LED signal light to show signal strength, easy to find a suitable place of outdoor CPE even in long range distance; Firmware comply with AC controller system and Cloud Management System, which helpful in central management and data setting, to implement Advertisement and authentication function, save much human work and cost, more professional in outdoor wireless networking solution.

Spec:

Specification:

Hardware:
Chipset Qualcomm QCA 9531
Wireless 802.11N, 2T2R 300M MIMO Technology
Memory 64MB DDR2 RAM (128MB available by extra cost)
Flash 16MB
Interface 1*10/100Mbps RJ45 Port, support 12~24V PoE
1*WDS Switch Button
1 Reset Button
Antenna 11dBi Panel Antenna, V: 60o L: 33o
LED Light SYS, WIFI, Signal Strength
Size 176*95*40MM
Power POE 24V/0.5A
RF Data
RF Data 802.11b/g/n:
2.312GHz to 2.4835GHz
Korea, Japan, ETSI, FCC, Debug
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Data Rate 300 Mbps
RF Power

802.11n:19±2 DB

802.11g:20±2 DB

802.11b:22±2 DB .
Receive Sensitivity

802.11n: -88dbm@MCS0,-65dbm@MCS7

802.11g: -88dbm@6Mbps;-70dbm@54Mbps

802.11b: -94dbm@1Mbps; -80dbm@11Mbps
EVM

802.11n: ≤-28 DB

802.11g: ≤-25 DB

802.11b: ≤-10 DB
PPM ±20ppm
End Users 64

Working Diagram:

Qualcomm Solution 2.4 GHz Outdoor CPE , Outdoor Client Wireless WiFi Bridge
