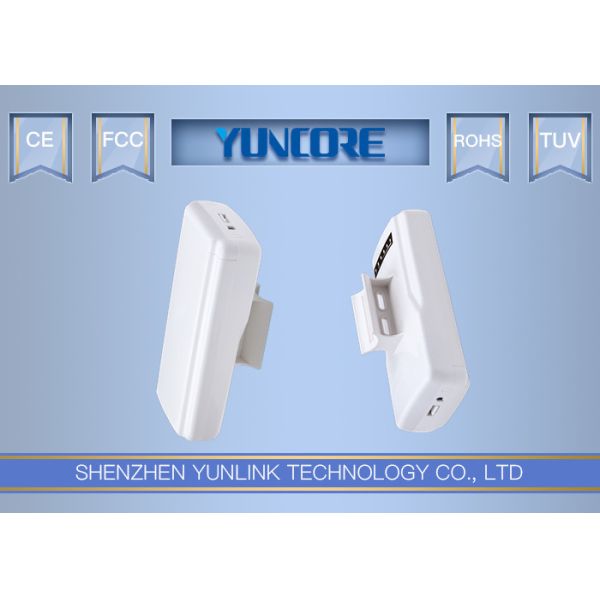

TDMA Support 2.4 Ghz Wireless CPE WiFi Bridge 300Mbps Data Rate Stable Signal
TDMA Support 2.4 Ghz Wireless CPE WiFi Bridge 300Mbps Data Rate Stable Signal
Specifications
Brand Name :
Yuncore
Model Number :
CPE90
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000PCS/ WEEK
Delivery Time :
4 working days
Packaging Details :
Giftbox + Carton box
Material :
ABS
Chipset :
Realtek RTL8197FNT
Flash :
8M
RAM :
64M
WiFi Standard :
IEEE802.11b/g/n
PoE :
24V passive
WDS :
Support
TDMA :
Support
Description

300Mbps Data Rate TDMA support More stable Signal in Terrible Condition 2.4 GHz Outdoor CPE

CPE90 is an very cheap 300Mbps outdoor CPE/AP support TDMA. It comply with IEEE 802.11b/g/n standard,, with 11dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 1000 meters.

It support Wireless AP, Gateway, WISP, Wireless Bridge, WDS operation mode, to suit for variety application environment. Besides that, there is a WDS switch button on the case, very easy to do the WDS PTP/PTMP connection by press the WDS switch button and reset button, zero configuration, save much human work and cost, more professional in outdoor wireless networking solution.

CPE90 support HI-MAX TDMA Technology, use polling to solve the hidden node and resource waste problem between the CPE and base station, provide low latency, high throughput in PTP/PTMP application like IP camera, long range WiFi Transmission.

CPE90 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it support 24V passive PoE, easy in setup even no power socket nearby, ideal for outdoor use;

CPE90 with LED signal lights to show signal strength, easy to find a suitable place of outdoor CPE, save much human work and cost, more professional in outdoor wireless networking solution.

Spec:

Specification:

Hardware:
Chipset Realtek RTL8197FNT
Wireless 802.11N, 2T2R 300M MIMO Technology
Memory 64MB RAM
Flash 8MB
Interface 1*10/100Mbps RJ45 Port, support 12~24V PoE
1*WDS Switch Button to do WDS connection
1*DC Injector, 12V/1A
1*Reset Button
Antenna 11dBi Panel Antenna, V: 60o L: 33o
LED Light SYS, WIFI, Signal Strength
Size 176*95*40MM
Power POE 24V/0.5A
RF Data
RF Data 802.11b/g/n:
2.4GHz to 2.4835GHz
Korea, Japan, ETSI, FCC, Debug
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Data Rate 300 Mbps
RF Power

11n: @MCS7:15±2DB, @MCS0:17±2DB.

11g: @54M:16±2DB, @6M:18±2DB.

11b: @11M:18±2DB, @1M:20±2DB.
Receive Sensitivity

11n: -65dbm@MCS7, -88dbm@MCS0.

11g: -70dbm@54Mbps, -88dbm@6Mbps.

11b: -80dbm@11Mbps, -94dbm@1Mbps,
EVM

11n: ≤-28 DB

11g: ≤-25 DB

11b: ≤-10 DB
PPM ±20ppm

Working Diagram:

TDMA Support 2.4 Ghz Wireless CPE WiFi Bridge 300Mbps Data Rate Stable Signal
