Table 550X560mm stroke 250 vulcanizing machine production blue and white silicone shell
Table 550X560mm stroke 250 vulcanizing machine production blue and white silicone shell
Table 550X560mm stroke 250 vulcanizing machine production blue and white silicone shell
Table 550X560mm stroke 250 vulcanizing machine production blue and white silicone shell
Table 550X560mm stroke 250 vulcanizing machine production blue and white silicone shell
Table 550X560mm stroke 250 vulcanizing machine production blue and white silicone shell
Specifications
Brand Name :
TuoWei
Model Number :
TW-P-200T
Place of Origin :
China
MOQ :
1group
Price :
USD22000-23000/group
Payment Terms :
T/T
Supply Ability :
30work days
Delivery Time :
30work days
Packaging Details :
simple packaging
Type :
TWP-200T
Clapping force（TON） :
200
Stroke（MM） :
250
Working Plate Size（MM） :
550*560
Dimeter of cyhnder（MM） :
355
Horse powet（HP） :
10*2
Heater power（KW） :
25
Total power（KW） :
42
Gross weight（KG） :
7000
Machine size（MM） :
2900*2200*2000
color :
blue
Machine body casting :
FCD50 ductile cast iron
Stand column :
Zhangwang(medium carbon steel)
Description
Type TWP-200T
Clapping force(TON) 200
Stroke(MM) 250
Working Plate Size(MM) 550*560
Dimeter of cyhnder(MM) 355
Horse powet(HP) 10*2
Heater power(KW) 25
Total power(KW) 42
Gross weight(KG) 7000
Machine size(MM) 2900*2200*2000

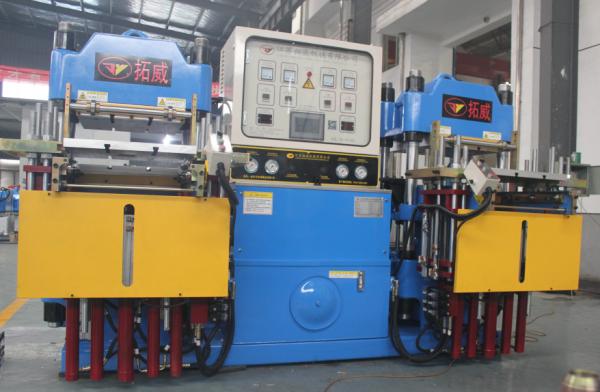

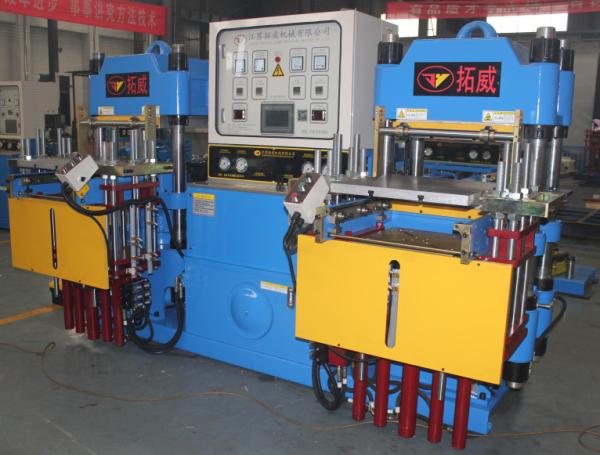

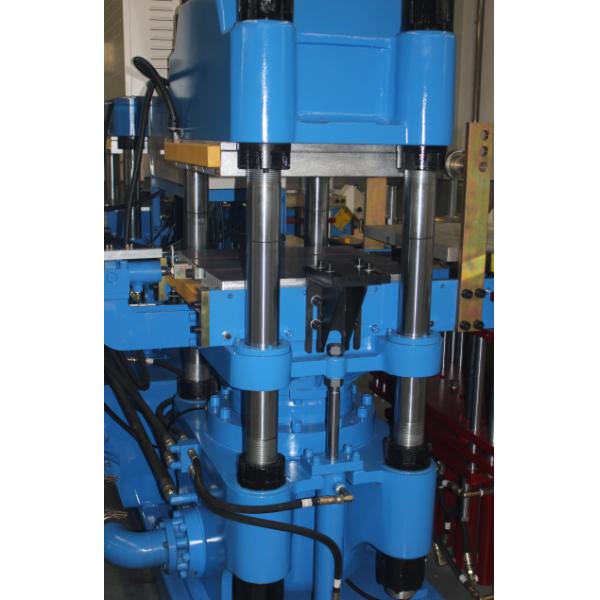

Machine characteristics
4RT mold opening is the machine type with multiple functions,suitable for the two-laype and three-layer

molds.
Double powers, double oil pumps, double motors and double oil coolers are applied for the two axles to

work independently.
The oil system is unique in design with good stability, faster lift-up and lift-down speed compared with

other brands when unloading/loading mold.
With the function of slow speed alignment adjusting, the adjustment is more precise and safe.
The accurate placement of the loading/unloading mold has the 100% placement safety design, protecting

the mold from being damaged.
The speed of mold raising and closing can be adjusted accurately and safely.

Vulcanizing machine daily inspection and maintenance

A. routine inspection and maintenance

1) check whether the photoelectric mold closing device is sensitive and reliable;

2) check the part of the electric heating board to see whether the fixing of the electric heating board is firm

and whether the wiring is short circuit;

3) check whether there is oil leakage in motor oil pump, piping and valve;

4) check the height of fuel tank level;

5) check the flow of cooling water;
6) check for abnormal sounds in motor oil pump, piping, valve, etc.;
7) the machine up and running, hours after the oil temperature should be generally within 35 ° C ~ 50 ° C;
8) check whether the system pressure is normal.

Table 550X560mm stroke 250 vulcanizing machine production blue and white silicone shellTable 550X560mm stroke 250 vulcanizing machine production blue and white silicone shellTable 550X560mm stroke 250 vulcanizing machine production blue and white silicone shell
