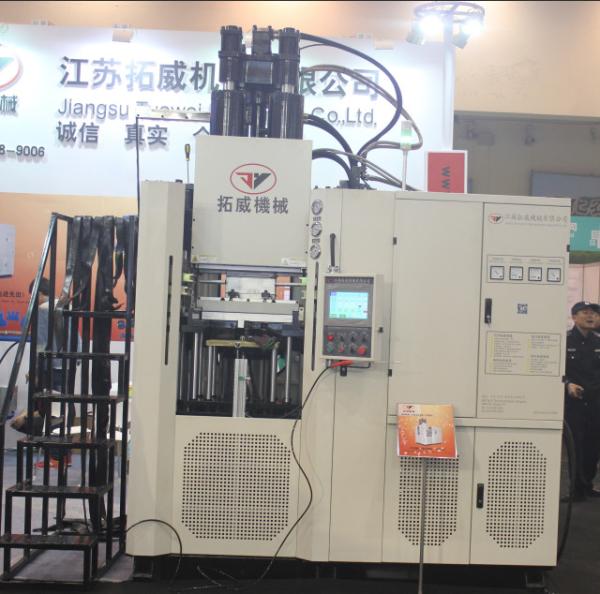

Dumbbell Rubber Injection Moulding Machine Can Be Customized Worktable
Dumbbell Rubber Injection Moulding Machine Can Be Customized Worktable
Dumbbell Rubber Injection Moulding Machine Can Be Customized Worktable
Dumbbell Rubber Injection Moulding Machine Can Be Customized Worktable
Specifications
Brand Name :
TW
Model Number :
TW-L-300T
Place of Origin :
China
MOQ :
1starions
Price :
USD42000/stations
Payment Terms :
T/T
Supply Ability :
30work days
Delivery Time :
30work days
Packaging Details :
simple packaging
Type :
TWL-300T
Clapping force（TON） :
300
Stroke（MM） :
500
Working Plate Size（MM） :
700*700
Dimeter of cyhnder（MM） :
450
Max plate spacie（MM） :
550
Min Mould Height（MM） :
60
Crane travel（MM） :
200
Description
Machine size(MM) 3100×1300×4000
Gross weight(KG) 9300
Total power(KW) 40
Heater power(KW) 22
Horse powet(HP) 20
System pressure (Mpa) 21
Nozzle aperture(MM) 6
Screw diametre(MM) 45
Injection pressure(Mpa) 220
Volume injection(CC) 3000
Joe trabel(MM) 200
Crane travel(MM) 200
Min Mould Height(MM) 60
Max plate spacie(MM) 550

Stationary four cylinders balancing vertical injection structure,

hyperstatic injection force.

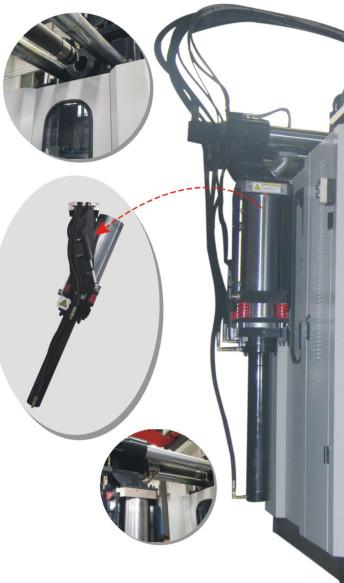

Optimized shot feeding rod greatly reduces the rubber leakage and is

convenient and fast for maintenance and rubberreplacement.
“Innovative shot feeding tube constant temperature system plus

ultrashort nozzle make very few remaining materials and minimum

pressure loss ”.
Specification under 500T adopts the international popular and

advanced FIFO first-in first-out injection way .
Totally-enclosed safety shield and grating, higher equipment operation

safety grade.
Hot plate heating zone control makes temperature more even.
Bigger table board design.
More automatic functions may be selected.
