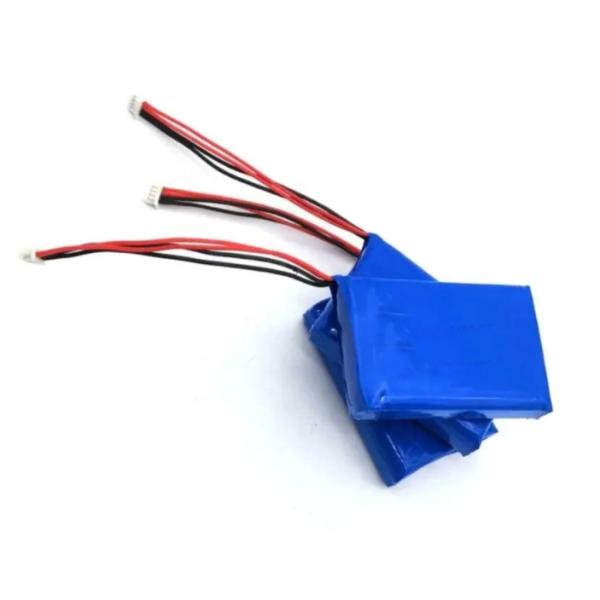

High Capacity 7.4V 2250mAh 18650 Lithium Ion Battery Pack Rechargeable Lipo Battery for Power Tools
High Capacity 7.4V 2250mAh 18650 Lithium Ion Battery Pack Rechargeable Lipo Battery for Power Tools
High Capacity 7.4V 2250mAh 18650 Lithium Ion Battery Pack Rechargeable Lipo Battery for Power Tools
High Capacity 7.4V 2250mAh 18650 Lithium Ion Battery Pack Rechargeable Lipo Battery for Power Tools
Specifications
Brand Name :
FBATTERY
Model Number :
7.4V2250mAh
Certification :
CE,ROHS,UN38.3
Place of Origin :
Wuhan,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T in advance
Supply Ability :
10000PCS/30Days
Delivery Time :
20 work days
Packaging Details :
blister card packing,Carton
Capacity :
2250mAh
Size :
Cylindrical
Length :
≤39.0mm
Voltage :
7.4V
Height :
≤70.0mm
Line length :
100.0mm±5mm
Operating Temperature :
﹣10℃～+60℃
Width :
≤21.5mm
Description
Product Overview

High Capacity 18650 Cell Wholesale Lipo Battery 7.4V 2250mAh Rechargeable Lithium Ion Battery Pack For Power Tool

Product Assembly & Components
NO Part Name Description Quantity
1 Cell 18650-22500mAh 2
2 BMS Charging 3A, Discharging 3A 1
3 Wiring 100mm length of 1007/22# Red & Black wiring 1
4 Connector XH 2.54 1
Technical Specifications
Typical Capacity 4100mAh (0.2C discharge after full charge)
Minimum Capacity 2000mAh (0.2C discharge after full charge)
Nominal Voltage 7.4V
Charge Voltage 8.4V±0.05V
Impedance 220mΩ (Max)
Charging Mode C.C/C.V.
Standard Charging Charging Current 450mAh
Fast Charging Charging Current 1125mAh
Standard Charging Time 6.5 Hours
Fast Charging Time 2.6 Hours
Weight Approx 100.0g
Operating Temperature Charging: 0℃~45℃
Discharge: -10℃~+60℃
Storage Temperature -10℃-40℃ Recommend 25±5℃
Storage capacity should be 40%~50% full charge capacity
Storage Humidity ≤75% RH
Appearance Without scratch, distortion, contamination and leakage
Overcharge Voltage 4.25±0.05V (Single Cell Monitoring)
Over Discharge Cut Off Voltage 2.8V±0.1V (Single Cell Monitoring)
Over Current 5-9A (Instantaneous Current)
Short Circuit External Short-circuit Protection (Self-recovery after Disconnection)
Operating Consumption Current 10uA (MAX)
NTC Resistor /
ESD Test ±4KV
Discharge Current ≤2A
Factory Voltage 3.6-4.0V
Outline Drawing
High Capacity 7.4V 2250mAh 18650 Lithium Ion Battery Pack Rechargeable Lipo Battery for Power Tools
Applications

Toys, Power Tools, Home Appliances, Camera, Consumer Electronics, POS machine, Router/Switch, Remote Control and so on.

Battery Quality Features
  • Cells - Grade A cells to ensure batteries have high and full capacity
  • Protection - Dual IC chips providing anti-over charge, anti-over discharge, anti-over current, and anti-short circuit protection
  • Compose Type - Injection Technology for enhanced battery stability
  • Long life cycle
