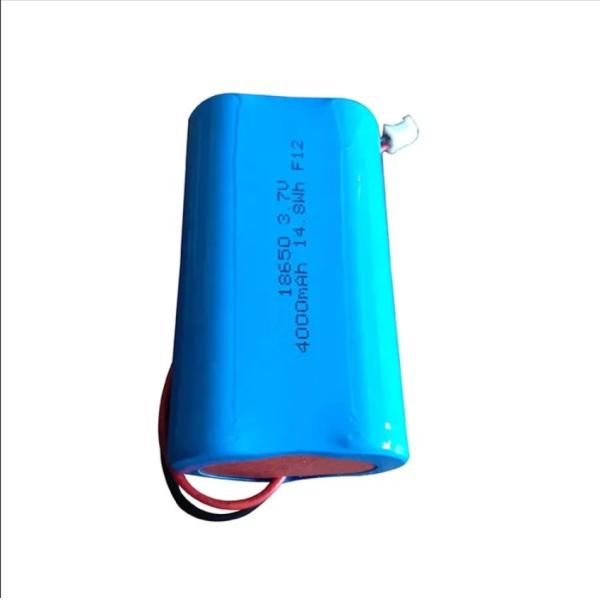

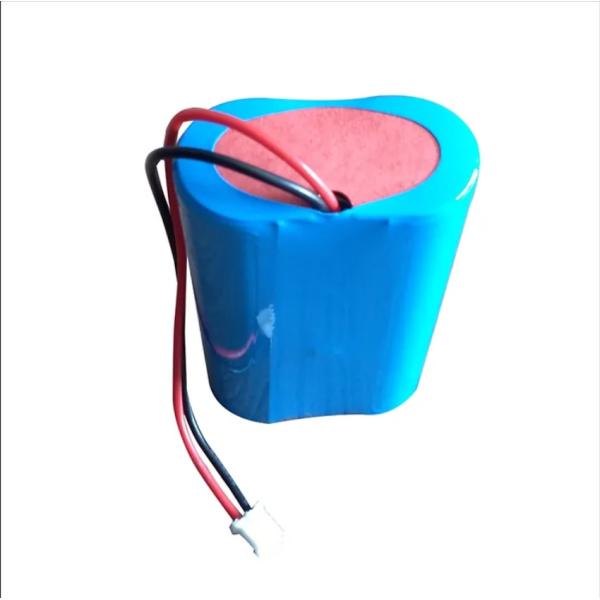

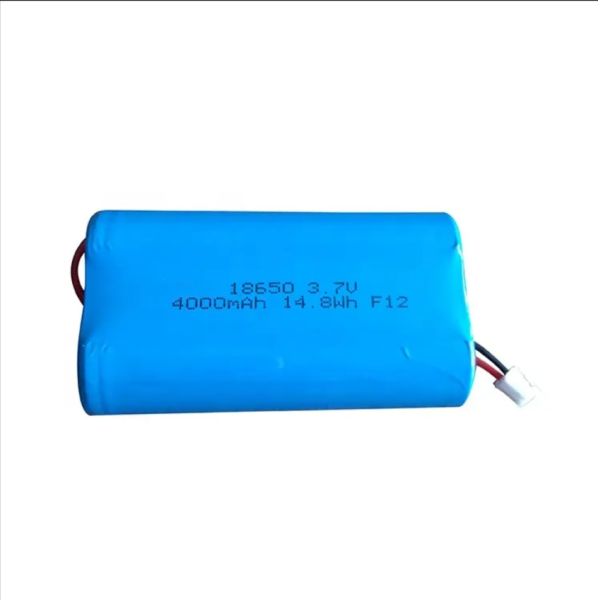

Cylindrical 18650 Lithium Battery 4000mAh 3.7V Rechargeable Battery for Power Tools and Electronics
Cylindrical 18650 Lithium Battery 4000mAh 3.7V Rechargeable Battery for Power Tools and Electronics
Cylindrical 18650 Lithium Battery 4000mAh 3.7V Rechargeable Battery for Power Tools and Electronics
Cylindrical 18650 Lithium Battery 4000mAh 3.7V Rechargeable Battery for Power Tools and Electronics
Cylindrical 18650 Lithium Battery 4000mAh 3.7V Rechargeable Battery for Power Tools and Electronics
Cylindrical 18650 Lithium Battery 4000mAh 3.7V Rechargeable Battery for Power Tools and Electronics
Cylindrical 18650 Lithium Battery 4000mAh 3.7V Rechargeable Battery for Power Tools and Electronics
Cylindrical 18650 Lithium Battery 4000mAh 3.7V Rechargeable Battery for Power Tools and Electronics
Specifications
Capacity :
4000mAh
Height :
≤19.5mm
Size :
Cylindrical
Length :
≤67.0mm
Voltage :
3.7V
Line length :
150.0mm±5mm
Operating Temperature :
﹣20℃～+50℃
Width :
≤37.0mm
Brand Name :
FBATTERY
Model Number :
18650 3.7V
Certification :
CE,ROHS,UN38.3
Place of Origin :
Wuhan,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T in advance
Supply Ability :
10000PCS/30Days
Delivery Time :
20 work days
Packaging Details :
blister card packing,Carton
Description
Cylindrical 18650 Cell Wholesale 18650 Lithium Battery 4000mAh Rechargeable Battery Lithium
Product Assembly
Products assembly drawing and size references:
NO Part Name Description Quantity
1 Cell 18650-2000mAh 2
2 PCM W5.0 T0.8 L35mmS-8205 DWO1 1
3 Lead 1007 22# 2
4 Connector XH 2.54 1
Specifications
Typical Capacity 4100mAh Discharge (4.2V to 2.5V) 0.2C
Minimum Capacity 2000mAh Discharge (4.2V to 2.5V) 0.5C
Nominal Voltage 3.7V
Standard Charge 4.2V
Standard Discharge CC, 0.2C (800mA) 2.75V
End-of-charge Current 20mA (At CV mode)
Standard Charging Current 800mA (0.2C5 rate) 0.2C
Max Charge Current 1500mA (0.5C5 rate) 0.5C
Max Discharge Current 1500mA
Initial Impedance ≤130mΩ
Weight Approx 200.0g
Operating Temperature Charging: 0℃~45℃
Discharge: -20℃~+50℃
Storage Temperature Within one month: -20℃~+50℃, 80%RH Max
Within one year: -20℃~+25℃, 75%RH Max
Storage Humidity ≤75% RH
Appearance Without scratch, distortion, contamination and leakage
Temperature Dependence of Discharge Capacity
Charge Temperature Discharge Temperature
25℃ -10℃: 70%
0℃: 80%
15℃: 90%
25℃: 100%
50℃: 95%
Relationship Between Discharge Rate and Capacity
Charging Temperature / Current Discharge Rate
25℃/0.2C 0.2C: 100%
0.5C: 95%
1C: 85%
Circuit Diagram
Cylindrical 18650 Lithium Battery 4000mAh 3.7V Rechargeable Battery for Power Tools and Electronics
Applications
  • Toys
  • Power Tools
  • Home Appliances
  • Camera
  • Consumer Electronics
  • POS Machine
  • Router/Switch
  • Remote Control
General Performance
Item Test Methods and Condition Criteria
0.2C Capacity After standard charging, rest battery for 10min, then discharging at 0.2C to voltage 3.0V, recording the discharging time. ≥290min
Cycle Life Constant current 0.5C charge to 4.2V, then constant voltage charge to current declines to 0.01C, rest 10min, constant current 0.5C discharge to 3.0V, rest 10min. Repeat above steps till continuously discharging capacity higher than 80% of the initial capacities of the cells. ≥300 times
Capability of Keeping Electricity 20±5℃, After standard charging, rest the battery 28 days, discharging at 0.2C to voltage 3.0V, recording the discharging time. ≥90%
