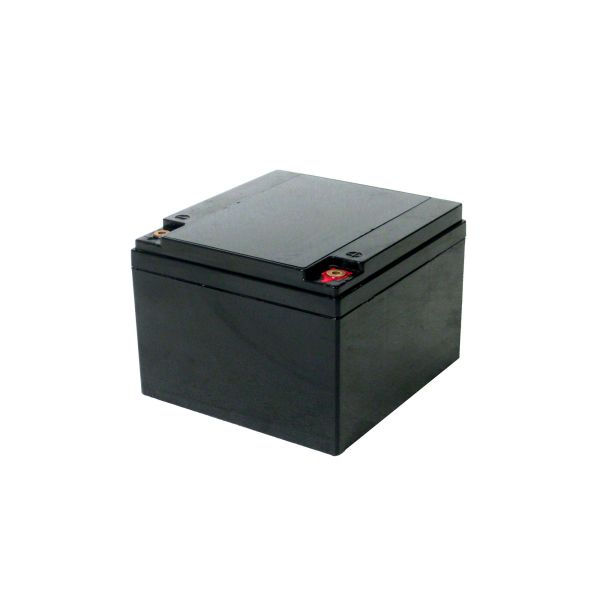

AGM 12V 24Ah VRLA Battery Valve Regulated Lead Acid No Air Leakage Maintenance-Free
AGM 12V 24Ah VRLA Battery Valve Regulated Lead Acid No Air Leakage Maintenance-Free
Specifications
Brand Name :
FBATTERY
Advantage :
No Air Leakage
Model Number :
6GFM-24
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30DAYS
Packaging Details :
Carton and Wooden Pallet
Nominal Voltage :
12V
Approx Weight :
8KG
Container Material :
ABS
Nominal Capacity :
24ah
Type :
Valve Regulated Lead Acid Battery
Separator :
AGM
Dimension :
L175mm x W166mm x H125mm
Description
AGM 12V 24ah VRLA Valve Regulated Lead Acid Battery
Product Overview

AGM 12V 24ah VRLA Valve Regulated Lead Acid Battery with no air leakage, designed for reliable performance and long service life.

Applications
  • EPS and UPS battery backup systems
  • Solar and wind energy storage systems
  • Telecommunication equipment
  • Power plant and transmission systems
  • Signal systems, emergency lighting systems, security systems
Technical Specifications
Type VRLA Lead Acid Battery
Nominal Voltage 12V
Rated Capacity 24Ah (10 Hr, 10.8V, 25℃)
Dimensions (L×W×H) 175mm × 166mm × 125mm
Battery Designed Life 10 years
Approx. Weight 8kg
Applicable Temperature -40℃ to 60℃
Optimum Temperature 20℃ to 25℃
Internal Resistance Approx. 10mΩ (fully charged @ 20°C)
Max. Charge Current 6A (Constant Voltage, Cycle: 14.5-14.9 V/25°C)
Max. Discharge Current (5S) 300A
Self-discharge <0.1% per day (20℃)
Container Material ABS
Screw Hole Size M6
Constant Current Discharge Ratings (Amperes at 25°C)
F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 7h 8h 9h 10h 20h
1.6V73.048.438.025.216.78.26.14.94.23.73.32.92.72.51.5
1.65V67.645.535.924.616.38.16.04.94.23.63.22.92.72.51.5
1.7V62.242.633.724.115.97.96.04.84.13.63.22.92.72.51.5
1.75V56.839.831.623.515.67.75.94.84.13.63.22.92.72.51.5
1.8V51.436.929.522.915.27.55.84.74.13.63.22.92.72.51.5
Constant Power Discharge Ratings (Watts at 25°C)
F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 7h 8h 9h 10h 20h
1.6V124.883.268.847.631.715.711.79.58.27.26.45.85.45.03.0
1.65V115.678.365.046.531.015.311.69.48.17.26.45.85.34.93.0
1.70V106.373.461.145.530.314.911.49.28.17.16.45.85.34.93.0
1.75V97.168.457.244.429.614.611.39.18.17.16.45.85.34.93.0
1.8V87.963.553.443.328.814.211.29.08.07.06.45.85.34.92.9
Key Advantages
Good Floating Performance

12V series VRLA deep cycle batteries are produced through internationally advanced technology and modern equipment. The positive plate uses high-tin alloy grids with strong corrosion resistance. The float charging life can reach more than 5 years.

Excellent Over-discharge Tolerance

Adopting dedicated ultra-fine glass fiber separators with high porosity and high wet-elasticity, combined with tight assembling technology, the battery has high tolerance for super over-discharge. After 5 times of over-discharges causing short circuit, battery tolerance restoration can reach more than 95%.

Super Cycling Ability

Special gel electrolyte additives and curing process at high temperature and humidity delay the softening of active material, improving deep cycle endurance up to 50%. Enhanced anti-passivation capacity of positive plates during reaction when used for small load and small current discharge.

Stable Consistency

Precise, quantitative, low temperature, vacuum acid filling method combined with advanced and environmentally friendly container formation technics ensures battery stable consistency.

Large Current Discharge Performance

Small plate distance and high pressure tight assembly of plate group enhance the ability of large current discharge performance.

Safety and Reliability

Patented terminal sealing construction and curing process of the adhesive at high temperature ensure no acid leakage from the roots of terminals, ensuring safe and reliable operation.

Maintenance-free

Due to dry-type design, gas produced from the battery internal system recombines and forms into water. The VRLA battery doesn't need filling water to achieve maintenance-free operation.

Download Product Datasheet (PDF)
