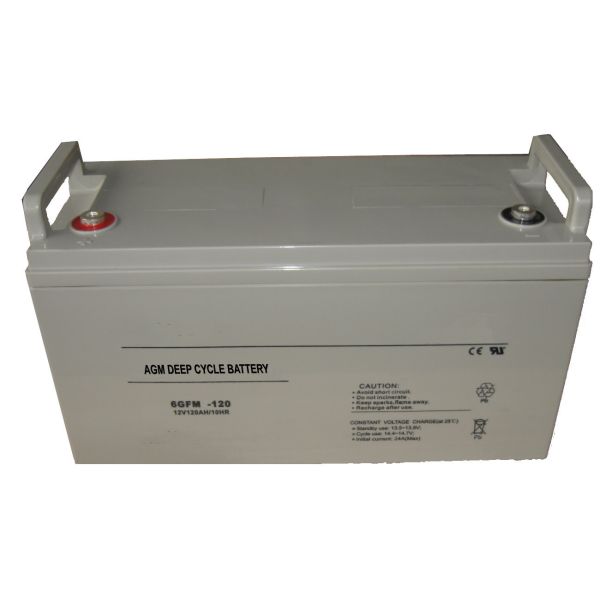

12V120AH Maintenance Free AGM Battery with 10 Year Life for Telecommunications
12V120AH Maintenance Free AGM Battery with 10 Year Life for Telecommunications
Specifications
Approx Weight :
36KG
Nominal Voltage :
12V
Battery Designed Life :
10 Years
Maintenance Type :
Free
Usage :
Telecommunications, SPC exchange, UPS, Solar
Model Number :
6GFM-120
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30DAYS
Packaging Details :
Carton and Wooden Pallet
Rated Capacity :
120AH
Terminal :
Copper Screwed, M6
Battery Case :
ABS
Brand Name :
FBATTERY
Type :
AGM Battery
Separator :
AGM
Description
ABS Case 12V120AH Valve Regulated Lead Acid Battery Telecommunication Battery
Product Overview

12V120AH Maintenance Free Valve Regulated Lead Acid Battery AGM Battery Telecommunication Battery

Product Features
  • High-tin alloy grid enhances corrosion resistance and extends service life
  • High-tight assembly technology improves charge acceptance and high current discharge performance
  • Precision vacuum acid filling method ensures battery consistency
  • Patented seal structure and high-temperature curing epoxy adhesive ensure safety and reliability
Product Structure

Cathode absorption sealed maintenance-free VRLA battery consists of ABS case, grid type plate, AGM separator and electrolyte.

Specifications
Type VRLA Battery
Nominal Voltage 12V
Rated Capacity 120Ah (10 Hr, 10.8V, 25℃)
Dimensions (L×W×H) 407mm × 175mm × 210mm
Designed Life 10 years
Weight 36kg
Operating Temperature -40℃ to 60℃
Optimum Temperature 20℃ to 25℃
Self-discharge Rate <0.1% per day (20℃)
Case Material ABS
Screw Hole Size Female Copper Insert M8
Constant Current Discharge Ratings (Amperes at 25°C)
F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 8h 10h 20h
1.60V349.0258.0213.0131.081.147.134.027.122.615.412.76.85
1.67V312.0237.0200.0125.079.046.333.626.822.315.212.66.70
1.70V278.0216.0189.0121.077.145.733.226.522.115.012.46.54
1.75V242.0200.0176.0116.075.644.932.726.221.814.812.26.42
1.80V214.0182.0164.0111.073.143.932.025.621.314.512.06.30
1.85V183.0164.0149.0105.069.942.231.024.820.814.211.76.15
Constant Power Discharge Ratings (Watts at 25°C)
F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 8h 10h 20h
1.60V615.0463.0388.0242.0151.088.564.251.443.029.624.613.3
1.67V556.0431.0368.0233.0148.087.563.851.042.829.424.413.1
1.70V502.0396.0351.0226.0146.087.063.550.942.729.324.312.9
1.75V442.0372.0330.0220.0144.086.263.150.742.529.124.112.7
1.80V396.0342.0310.0212.0140.085.162.450.041.828.723.812.6
1.85V345.0312.0286.0202.0136.082.660.949.041.128.223.412.4
Application Fields

Telecommunications, UPS systems, standby power systems, SPC exchange, marine equipment, power stations, switching systems, alarm systems, fire and security systems, control equipment, solar photovoltaic energy, electric wheelchairs, medical equipment, washing machines, and more.

Key Advantages
  • Good Floating Performance: High-tin alloy grids with strong corrosion resistance provide float charging life exceeding 5 years
  • Excellent Over-discharge Tolerance: Ultra-fine glass fiber separators with high porosity enable 95% restoration after over-discharge
  • Super Cycling Ability: Special gel electrolyte additives and curing process improve deep cycle endurance by 50%
  • Stable Consistency: Precision vacuum acid filling method ensures uniform battery performance
  • Large Current Discharge Performance: Small plate distance and high pressure tight assembly enhance high current discharge capability
  • Safety and Reliability: Patented terminal sealing construction prevents acid leakage
  • Maintenance-free: Gas recombination system eliminates need for water filling
  • Various Installation Types: Can be mounted in both vertical and horizontal positions
Download Product Documentation (PDF)
