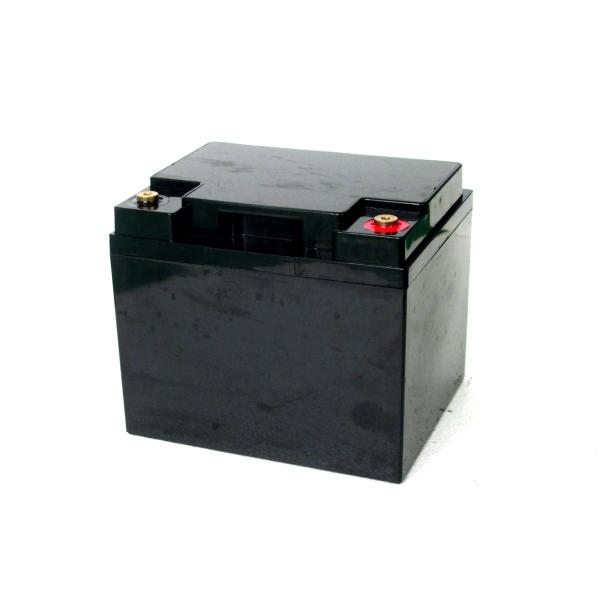

12V 24AH Rechargeable Valve Regulated Lead Acid Battery with ABS Case for Industrial Applications
12V 24AH Rechargeable Valve Regulated Lead Acid Battery with ABS Case for Industrial Applications
Specifications
Brand Name :
FBATTERY
Container Material :
ABS
Model Number :
6GFM-24
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30DAYS
Packaging Details :
Carton and Wooden Pallet
Nominal Voltage :
12V
Terminal Type :
Copper
Separator :
AGM
Nominal Capacity :
24AH
Type :
Valve Regulated Lead Acid Battery
Application :
Engine starting, Communication Equipment, Marine Equipment, Alarm Systems, Computers;
Approx Weight :
8KG
Description
12V 24AH Valve Regulated Lead Acid Battery Rechargeable ABS Case
Valve Regulated Lead Acid Battery can be widely used in communication systems, UPS systems, power systems, emergency lighting systems, automation control systems, fire control and security alarm systems, solar energy, wind energy systems, computer backup power supplies, and more.
Structure and Working Principle
Cathode absorption sealed maintenance-free VRLA battery consists of ABS case, grid type plate, AGM separator and electrolyte.
Specifications
Type Valve Regulated Lead Acid Battery
Nominal Voltage 12V
Rated Capacity 24Ah (10 Hr, 10.8V, 25℃)
Approx Dimensions (mm) L175mm × W166mm × H125mm
Battery Designed Life 10 years
Approx Weight 8kg
Applicable Temperature -40℃～60℃
Optimum Temperature 20℃～25℃
Internal Resistance Approx. 10mΩ (fully charged @ 20°C)
Max. Charge Current 6A (Constant Voltage, Cycle: 14.5～14.9 V/25°C)
Max. Discharge Current (5S) 300A
Self-discharge Self-discharge rate ＜0.1% per day (20℃)
Materials for Battery Containers and Covers ABS
Screw Hole Size (mm) M6
Constant Current Discharge Ratings
Amperes at 25°C
F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 7h 8h 9h 10h 20h
1.6V 73.0 48.4 38.0 25.2 16.7 8.2 6.1 4.9 4.2 3.7 3.3 2.9 2.7 2.5 1.5
1.65V 67.6 45.5 35.9 24.6 16.3 8.1 6.0 4.9 4.2 3.6 3.2 2.9 2.7 2.5 1.5
1.7V 62.2 42.6 33.7 24.1 15.9 7.9 6.0 4.8 4.1 3.6 3.2 2.9 2.7 2.5 1.5
1.75V 56.8 39.8 31.6 23.5 15.6 7.7 5.9 4.8 4.1 3.6 3.2 2.9 2.7 2.5 1.5
1.8V 51.4 36.9 29.5 22.9 15.2 7.5 5.8 4.7 4.1 3.6 3.2 2.9 2.7 2.5 1.5
Constant Power Discharge Ratings
Watts at 25°C
F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 7h 8h 9h 10h 20h
1.6V 124.8 83.2 68.8 47.6 31.7 15.7 11.7 9.5 8.2 7.2 6.4 5.8 5.4 5.0 3.0
1.65V 115.6 78.3 65.0 46.5 31.0 15.3 11.6 9.4 8.1 7.2 6.4 5.8 5.3 4.9 3.0
1.70V 106.3 73.4 61.1 45.5 30.3 14.9 11.4 9.2 8.1 7.1 6.4 5.8 5.3 4.9 3.0
1.75V 97.1 68.4 57.2 44.4 29.6 14.6 11.3 9.1 8.1 7.1 6.4 5.8 5.3 4.9 3.0
1.8V 87.9 63.5 53.4 43.3 28.8 14.2 11.2 9.0 8.0 7.0 6.4 5.8 5.3 4.9 2.9
Application Fields
  • Engine starting, Communication equipment
  • Fire & security systems
  • Uninterruptible power supplies
  • Telecommunication systems
  • Electronic cash registers
  • Electronic test equipment
  • Processor based office machines
  • Control equipment
  • Electric powered bicycle and wheelchairs
  • Geophysical equipment
  • Marine equipment
  • Medical equipment
  • Portable cine & video lights
  • Solar powered systems
  • Television & video recorders
  • Vending machines
  • Alarm Systems, Computers
  • Power Tools
  • Emergency Lighting Systems
  • Toys
  • Geophysical Equipment
  • Vending Machines
  • Other standby or primary power supplies
Advantages
  • Good Floating Performance: 12V series VRLA deep cycle batteries are produced through internationally advanced technology and modern equipment. The positive plate uses high-tin alloy grids with strong corrosion resistance. The float charging life of battery can reach more than 5 years.
  • Excellent Over-discharge Tolerance: Adopting dedicated ultra-fine glass fiber separators with high porosity and high wet-elasticity, combining with tight assembling technology, the battery has a high tolerance for super over-discharge.
  • Super Cycling Ability: Special gel electrolyte additives, curing process at high temperature and high humidity are employed to delay the softening of active material, therefore the deep cycle endurance is improved up to 50%.
  • Stable Consistency: Precise, quantitative, low temperature, vacuum acid filling method, advanced and environmentally friendly container formation technics ensures battery stable consistency.
  • Large Current Discharge Performance: Small plate distance and high pressure tight assembly of plate group could enhance the ability of large current discharge performance.
  • Safety and Reliability: Patented terminal sealing construction and the curing process of the adhesive at high temperature ensure no acid leakage from the roots of terminals.
  • Maintenance-free: Due to dry-type design, gas produced from the battery internal system would all recombine and form into water, eliminating the need for filling water.
  • Various Installation Types: The special AGM separators can absorb the electrolyte, allowing both vertical and horizontal mounting positions.
