24VDC Explosion Proof Scales 240Hz Intrinsically Safe Weighing Scales
24VDC Explosion Proof Scales 240Hz Intrinsically Safe Weighing Scales
24VDC Explosion Proof Scales 240Hz Intrinsically Safe Weighing Scales
24VDC Explosion Proof Scales 240Hz Intrinsically Safe Weighing Scales
Specifications
Rate :
A/D Rate 240Hz
Supply Ability :
1,000 units per month
Precision :
Display Division Of 100000
Product :
LM550Ex Explosion proof Weighing Instrument
Communication :
RS232，RS485(Modbus-RTU)
Protection Level :
Front Panel IP65
Delivery Time :
20 days
Model Number :
LM550Ex
Place of Origin :
China
Working Power Supply :
DC 24VDC
Payment Terms :
Payment before delivery
MOQ :
1 set
Brand Name :
Linmindu
Packaging Details :
carton packaging
Description

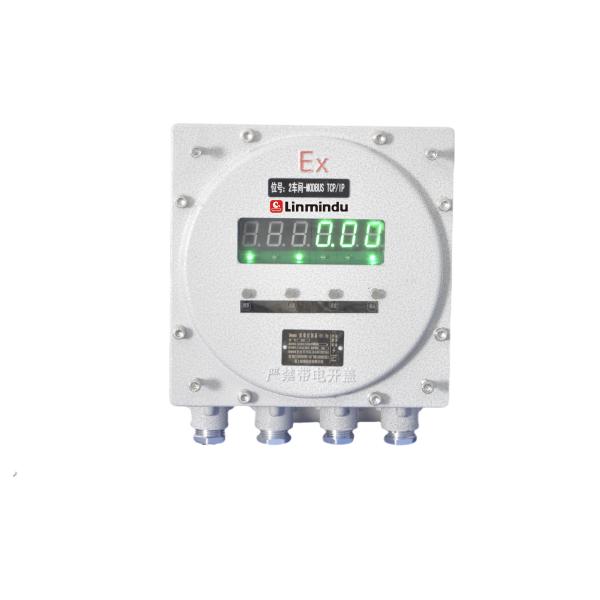

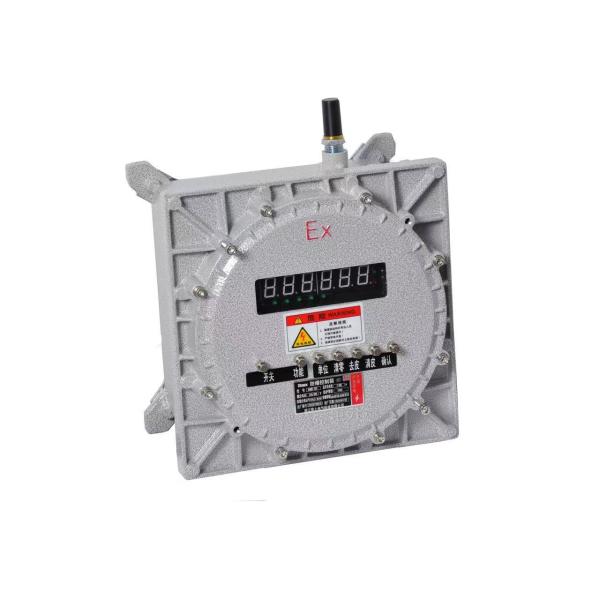

High-precision & explosion-proof LM550EX weighing indicator, with strong anti-interference and stable output, ideal for hazardous areas in petroleum, chemical and pharmaceutical weighing systems.


The LM550EX series is a weighing device designed specifically for use in flammable and explosive environments, with the aim of ensuring safe and accurate weighing operations in hazardous environments. By using specialized explosion-proof enclosures, explosion-proof cables, explosion-proof sensors and other components, it is ensured that the electrical part will not generate high temperature or high pressure when used in flammable and explosive environments, thereby avoiding safety accidents such as explosions or fires.

Product Features

  • 6-digit digital display
  • Supports 1 analog scale platform access and 8 sensors
  • Display division of 100000
  • Standard configuration includes 1 RS232 and 1 RS485
  • Serial ports are equipped with isolation protection and lightning protection
  • Multiple calibration modes
    • Multi point calibration (supports 5 points)
    • weight-free calibration
    • Calibration via MODBUS-RTU remote protocol (only supports 2-point calibration)
  • Options
    • Optional 4~20mA/0~10v (16 bit precision DAC)
    • Optional 4-in-6-out IO
    • Optional Profinet
    • Optional Profibus DP
    • Optional Ethernet/IP
    • Optional TCP/IP
  • Support applications
    • Basic weighing version
    • Material level weighing
    • Preset point control
    • Upper/lower limit material level detection
  • Working power supply: 24VDC DC

Specifications

Project

Parameters

Overall Dimensions

Length x Width x Height: 120 x 75 x 124.4mm

Shell Structure

Aluminum Alloy Shell, Stainless Steel Panel

Installation Method

Dustproof Installation

Protection Level

Front Panel IP65

keyboard

4 Touch Buttons

Accuracy Rate

Display Division Of 100000, A/D Rate Of 240Hz
Weighing

1 Analog Signal, Up To 8 350 Ω Sensors

Working Mode

Comparison Of Preset Points, Upper And Lower Limit Alarms, Weight Control, Reduction Control, Peak Force Measurement, Weighing And Canning, Etc

Working Power Supply

24VDC DC Input, Power Less Than 6W
Display

6-digit, Green, 0.56-inch Digital Display

Communication

RS232,RS485(Modbus-RTU)

Application case series

24VDC Explosion Proof Scales 240Hz Intrinsically Safe Weighing Scales
