Safe Weighing Explosion Proof Scales IP66 Intrinsically Safe Floor
Safe Weighing Explosion Proof Scales IP66 Intrinsically Safe Floor
Safe Weighing Explosion Proof Scales IP66 Intrinsically Safe Floor
Safe Weighing Explosion Proof Scales IP66 Intrinsically Safe Floor
Specifications
Brand Name :
Linmindu
Protection Level :
Front Panel IP66
Product :
Explosion Proof Weighing Instrument
Keyboard :
Touch Screen Soft Keyboard (Full Keyboard)
Payment Terms :
Payment before delivery
Place of Origin :
China
Delivery Time :
20 days
Model Number :
LM211EX
Material :
Aluminum Alloy Shell, Stainless Steel Shell
Packaging Details :
carton packaging
Measurement :
6000e
Display :
800 × 480 Resolution
Supply Ability :
1,000 units per month
Description

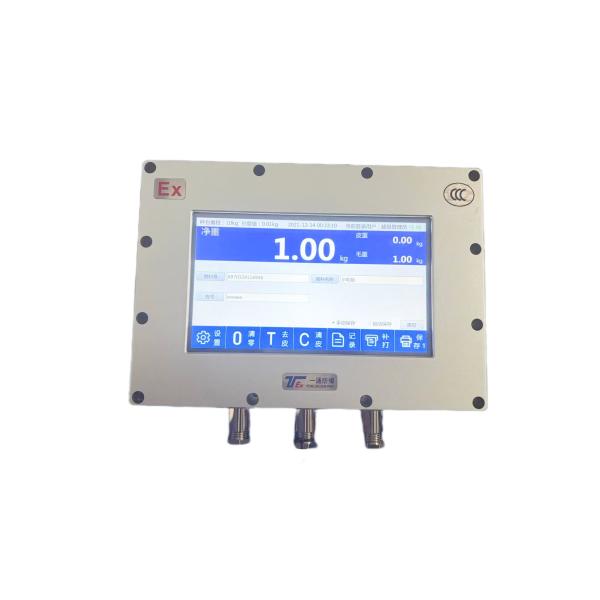

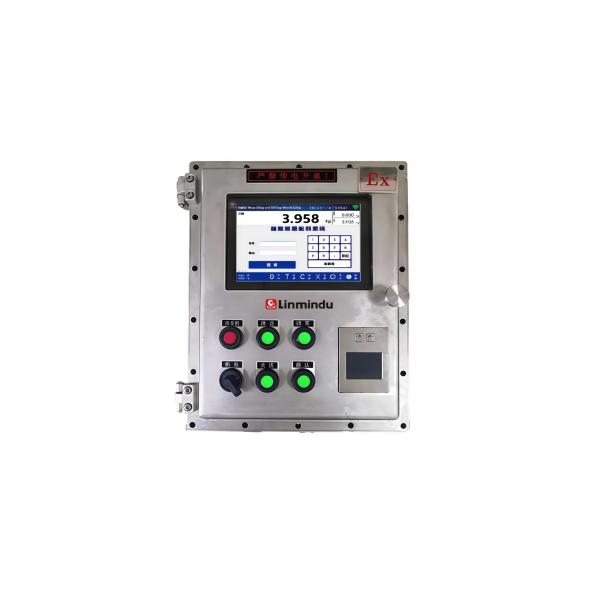

LM211EX Series Explosion-proof Weighing Indicator adopts high precision and stable running performance, applicable to safe weighing and process control in hazardous industrial working environments.

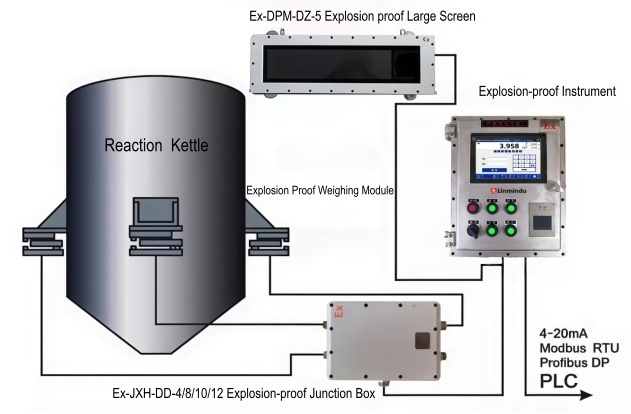

The LM211EX series is an explosion-proof weighing device specifically engineered for flammable and explosive environments, designed to guarantee safe and precise weighing operations in hazardous areas. It adopts specialized explosion-proof components including explosion-proof enclosures, explosion-proof cables, and explosion-proof sensors, which prevent the electrical components from generating high temperatures or high pressures during operation in flammable and explosive environments, thus eliminating potential safety hazards such as explosions and fires.

Product Features

  • 7-inch resistive touch screen
  • Supports 0-2 scales and 1-6 350 ohm sensors
  • Standard configuration includes 1xRS232, 1xRS485, 1xUSB, 1x Ethernet
  • Serial ports are equipped with isolation protection and lightning protection
  • Multiple calibration modes
    • Multi point calibration (supports up to 5 points)
    • Weight free calibration
    • Calibration via MODBUS-RTU remote protocol (only supports 2-point calibration)

Specifications

Project

Parameters

Overall Dimensions

Length x Width x Height: 250 x 182 x 76mm

Shell Structure

Aluminum alloy shell, stainless steel shell

Installation Method

Dust proof column installation, wall mounted installation

Protection Level

Front panel IP66
Keyboard

Touch screen soft keyboard (full keyboard)
Display

800 × 480 resolution

Precision

Display 15000d; measure 6000e

Working Mode

Weighing and marking, process weighing, counting weighing, inspection weighing, etc
