High Precision Weighing Module Anti Deflection Scale Module Industrial Automation
High Precision Weighing Module Anti Deflection Scale Module Industrial Automation
High Precision Weighing Module Anti Deflection Scale Module Industrial Automation
High Precision Weighing Module Anti Deflection Scale Module Industrial Automation
High Precision Weighing Module Anti Deflection Scale Module Industrial Automation
High Precision Weighing Module Anti Deflection Scale Module Industrial Automation
Specifications
Function :
Self Reset Function
Model Number :
LMD-MM2
Place of Origin :
China
Brand Name :
Linmindu
Overload :
Anti Overturning Protection
Product :
LMD-MM2 Weighing Module
Delivery Time :
20 days
High-temperature Sensor :
150 ° C or 200 ° C
Payment Terms :
Payment before delivery
Protection Level :
IP68
Supply Ability :
1,000 units per month
Protect :
360 ° Circumferential Horizontal Limit Protection
Packaging Details :
carton packaging
Description

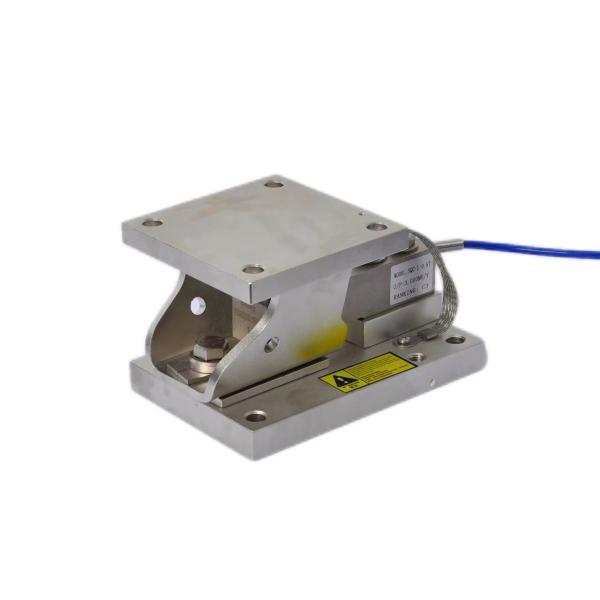

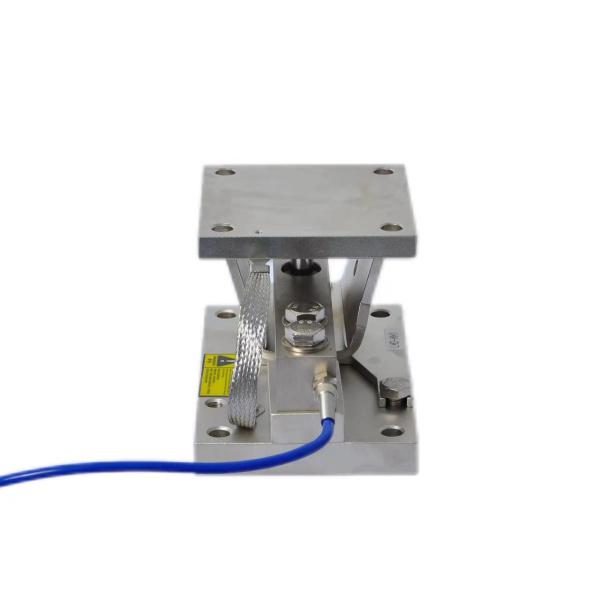

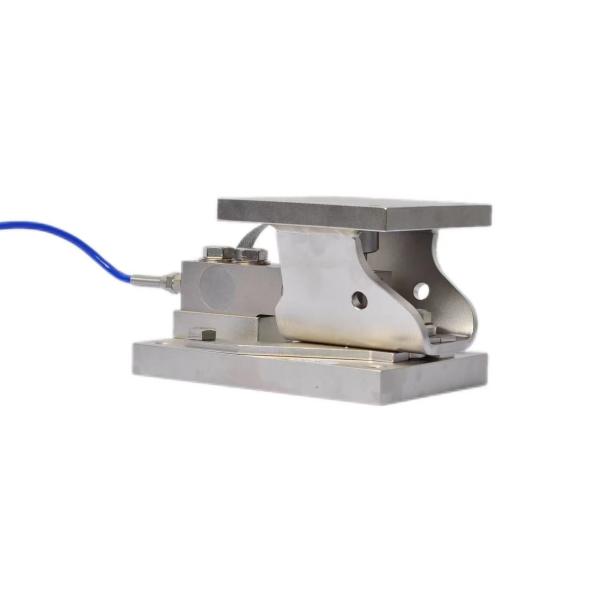

LMD-MM2 high-precision anti-deflection weighing module adopts robust sealed structure, widely applied to silo, reactor, tank and hopper weighing in industrial automation.

The robust performance of the LMD-MM2 weighing module allows it to fulfill diverse dynamic and static load weighing requirements in industrial production. Its high-strength structural components offer all-round protection for the equipment, while the self-resetting sensor produces a restoring force during dynamic weighing—ensuring the weighing platform automatically reverts to a stable condition and thereby guaranteeing accurate, reliable weighing results. This module is capable of bearing 100% of its rated load without sensor installation, eliminating the need for sensors throughout the entire installation process and thus preventing sensor damage caused by lateral pressure overload or welding current during setup.

Product Features

  • Anti overturning protection
  • Overload protection
  • 360 ° circumferential horizontal limit protection
  • Shaking of 2 horizontal tie rods stabilizing equipment
  • Suitable for both dynamic and static weighing applications
  • Support on-site installation without sensors to protect sensors
  • Stainless steel sensor, consisting of two structural components: stainless steel and carbon steel
  • The sensor has a self resetting function, and its measurement performance can be verified to be reliable
  • Can provide high temperature sensors for use at temperatures of 150 ℃ or 200 ℃
  • Explosion proof mark: Ex ia IIC T4-T6Ga, Ex ia D20 T85-T135

Specifications

Project Parameters
Material Alloy steel, stainless steel
Range 0.5t～10t
Precision OIML C3/0.02%FS
Protection Level IP68
Output 2.0±0.1mV/V
Operating Temperature -30℃～+70℃
Structural Type Static/dynamic load, anti eccentric load, anti overturning
Applicable Scenarios Material filling, reaction kettle, silo, platform scale
