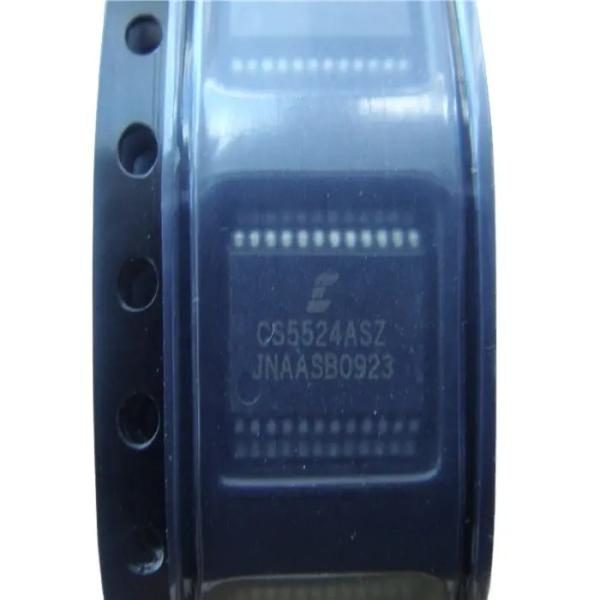

CS5524-ASZ Integrated Circuit Chips Electronic Components 4 Channel
CS5524-ASZ Integrated Circuit Chips Electronic Components 4 Channel
CS5524-ASZ Integrated Circuit Chips Electronic Components 4 Channel
CS5524-ASZ Integrated Circuit Chips Electronic Components 4 Channel
CS5524-ASZ Integrated Circuit Chips Electronic Components 4 Channel
CS5524-ASZ Integrated Circuit Chips Electronic Components 4 Channel
Specifications
Brand Name :
Cirrus Logic
Model Number :
CS5524-ASZ
Certification :
RoHS Compliant
Place of Origin :
Original
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/pcs/week
Delivery Time :
1-3day
Packaging Details :

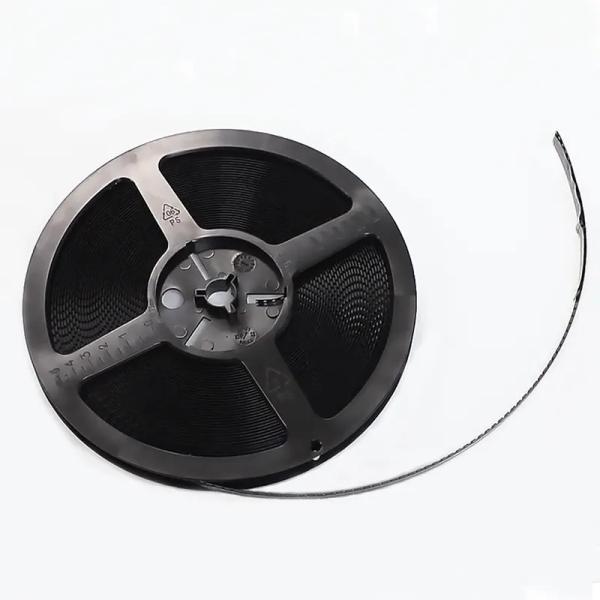

Original package
Description :
Analog to Digital Converters - ADC 4-Ch 24-Bit Delta Sigma ADC
Stock :
300000
Shipping Method :
Express
Input Type :
Standard
Voltage Supply - Internal :
Standard
Condition :
100% Original
Lead time :
Within 2 working days
MOQ :
1pcs
Quality :
High-quality
Express :
fedex, tnt. dhl. ems. ups.
Description

New And Original Electronic Components Integrated Circuits Ic Chip CS5524-ASZ

The CS5521/22/23/24/28 are highly integrated A> analog-to-digital converters (ADCs) which use chargebalance techniques to achieve 16-bit (CS5521/23) and24-bit(CS5522/24/28) performance. The ADCs come aseithertwo-channel(CS5521/22).four-channel(CS5523/24), or eight-channel (CS5528) devices andinclude a low-input-current, chopper-stabilized instru-mentation amplifier. To permit selectable input spans of25 mV, 55 mV, 100 mV, 1 V, 2.5 V, and 5 V, the ADCsinclude a PGA (programmable gain amplifier). To accommodate ground-based thermocouple applications.the devices include a charge pump drive which providesa negative bias voltage to the on-chip amplifiers.

Specifications
Product Attribute Attribute Value
Manufacturer: Cirrus Logic
Product Category: Analog to Digital Converters - ADC
RoHS: Details
Series: CS5524
Mounting Style: SMD/SMT

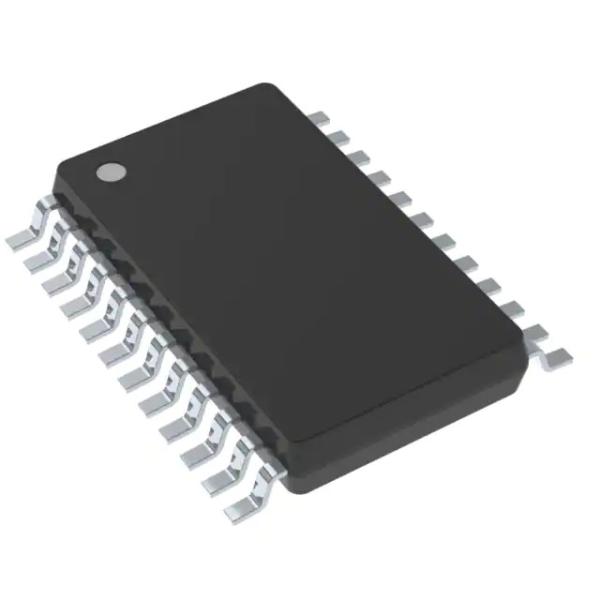

Package / Case: SSOP-24
Resolution: 24 bit
Number of Channels: 4 Channel
Interface Type: 3-Wire, SPI
Sampling Rate: 617 S/s
Input Type: Differential
Architecture: Sigma-Delta
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Tube
Brand: Cirrus Logic
Height: 1.73 mm
INL - Integral Nonlinearity: +/- 0.0015 % FSR
Length: 8.2 mm
Moisture Sensitive: Yes
Number of Converters: 1 Converter
Operating Supply Voltage: 2.7 V to 5.25 V, 4.75 V to 5.25 V
Pd - Power Dissipation: 500 mW (1/2 W)
Product Type: ADCs - Analog to Digital Converters
Reference Voltage: 2.5 V
Subcategory: Data Converter ICs
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 2.7 V, 4.75 V
Width: 5.3 mm
Unit Weight: 0.059966 oz



CS5524-ASZ Integrated Circuit Chips Electronic Components 4 ChannelCS5524-ASZ Integrated Circuit Chips Electronic Components 4 Channel

P/N Manufacturer Packaging Date Code Qty
Y079314R0000D0L Vishay N/A 22+ 289000
Y07931K94100T9L Vishay N/A 23+ 28000
Y07931K62000B9L Vishay N/A 23+ 50000
Y0793163R770B9L Vishay N/A 23+ 120000
Y079320K0000B0L Vishay N/A 23+ 45000
Y079318K7000B0L Vishay N/A 23+ 48000
Y079313K5560T0L Vishay N/A 23+ 90000
Y07931K00000D0L Vishay N/A 23+ 78000
Y079315K2000B0L Vishay N/A 22+ 289000
Y07931K00000T9L Vishay N/A 22+ 48000
Y079314K3000A0L Vishay N/A 22+ 45000
Y07931K29800T0L Vishay N/A 22+ 48000
Y079315K0000T9L Vishay N/A 22+ 90000
Y079319K8000T0L Vishay N/A 22+ 78000
Y079315K2600T0L Vishay N/A 22+ 289000
Y079318K2000B0L Vishay N/A 22+ 28000
Y07931K96000F0L Vishay N/A 22+ 50000
Y0793136K000T0L Vishay N/A 23+ 120000
Y079312K8000T0L Vishay N/A 23+ 45000
Y079312K0000B0L Vishay N/A 23+ 48000
Y07931K94100T0L Vishay N/A 23+ 90000
Y07931K09244T0L Vishay N/A 23+ 78000
Y079315K0000T0L Vishay N/A 23+ 289000
Y079318K2000B9L Vishay N/A 23+ 28000
Y079320K0000T0L Vishay N/A 23+ 50000
Y0793140K000T9L Vishay N/A 23+ 120000
Y07931R00000F9L Vishay N/A 23+ 45000
Y07931K25000T0L Vishay N/A 23+ 48000
Y07931R00000D9L Vishay N/A 23+ 90000
Y07931K91100T0L Vishay N/A 23+ 78000
Y079315K0000B0L Vishay N/A 23+ 289000
Y07931K47000B0L Vishay N/A 23+ 28000
Y07931K25000D0L Vishay N/A 23+ 50000
Y07931K27300T9L Vishay N/A 23+ 120000
Y07931K00000T0L Vishay N/A 23+ 45000

CS5524-ASZ Integrated Circuit Chips Electronic Components 4 Channel
Q1:Who are you?

A1: We are a distributor of electronic components. Our products include IC. inductor, resistor, potentiometer, capacitor and
module, etc.Everything you can think of about electronic components!
Q2:Are you products original?
A2: Yes all products are original and produced by original manufacturers.
Q3:When will you ship?
A3:This depends on the quantity of the goods you ordered, we have stock, usually 15-20 days delivery time.
Q4:What is your warranty?
A4:365 days after goods have been received. Our products will be 100% tested before they are sent out.
