NC7SZ125M5X Memory Integrated Circuit IC Chip Single Ended Computer IC Chip
NC7SZ125M5X Memory Integrated Circuit IC Chip Single Ended Computer IC Chip
Specifications
Brand Name :
onsemi / Fairchild
Model Number :
NC7SZ125M5X
Certification :
RoHS Compliant
Place of Origin :
Original
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/pcs/week
Delivery Time :
1-3day
Packaging Details :
Original
Description :
Buffers & Line Drivers UHS Buffer
Stock :
300000
Shipping Method :
Express
Input Type :
Standard
Voltage Supply - Internal :
Standard
Condition :
100% Original
Date code :
Newest
Lead time :
1-3days
Quality :
High-quality
Express :
fedex, tnt. dhl. ems. ups.
Description

New And Original Integrated Circuit NC7SZ125M5X Memory Electronic Modules Components

The NC7SZ125 is a single buffer with three−state output from onsemi’s Ultra−High Speed (UHS) of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V range. The inputs and output are high impedance above ground when VCC is 0 V. Inputs tolerate voltages up to 5.5 V independent of VCC operating voltage. The output tolerates voltages above VCC when in the 3−STATE condition.

Specifications
Product Attribute Attribute Value
Manufacturer: onsemi
Product Category: Buffers & Line Drivers
RoHS: Details
Number of Input Lines: 1 Input
Number of Output Lines: 1 Output
Polarity: Non-Inverting
High Level Output Current: - 32 mA
Low Level Output Current: 32 mA
Quiescent Current: 2 uA
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 1.65 V
Operating Supply Current: 20 uA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: SMD/SMT

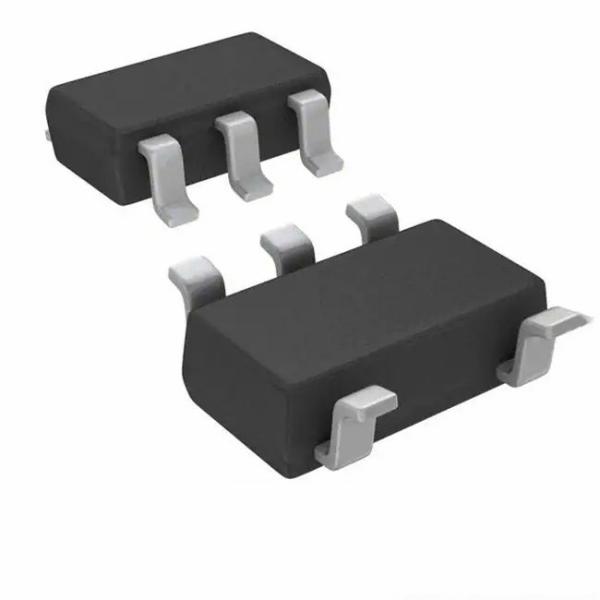

Package / Case: SOT-23-5
Packaging: Reel
Packaging: Cut Tape
Brand: onsemi / Fairchild
Function: Buffer/Line Driver
Height: 1.3 mm
Input Signal Type: Single-Ended
Length: 3 mm
Logic Family: TinyLogic UHS
Logic Type: CMOS
Number of Channels: 1 Channel
Operating Supply Voltage: 1.65 V to 5.5 V
Output Type: 3-State
Pd - Power Dissipation: 200 mW
Product Type: Buffers & Line Drivers
Propagation Delay Time: 5.7 ns at 3.3 V, 5 ns at 5 V
Series: NC7SZ125
Subcategory: Logic ICs
Supply Current - Max: 2 uA
Technology: CMOS
Tradename: TinyLogic
Width: 1.7 mm
Part # Aliases: NC7SZ125M5X_NL
Unit Weight: 0.001446 oz

NC7SZ125M5X Memory Integrated Circuit IC Chip Single Ended Computer IC ChipNC7SZ125M5X Memory Integrated Circuit IC Chip Single Ended Computer IC ChipNC7SZ125M5X Memory Integrated Circuit IC Chip Single Ended Computer IC ChipNC7SZ125M5X Memory Integrated Circuit IC Chip Single Ended Computer IC Chip

P/N Manufacturer Packaging Date Code Qty
Y0075100R000T9L Vishay N/A 22+ 90000
Y00661R00000B0L Vishay N/A 23+ 88000
Y0075100K000F9L Vishay N/A 23+ 89000
Y00656R00000C0L Vishay N/A 23+ 28000
Y00661R00000J0L Vishay N/A 23+ 50000
Y0075102K400T9L Vishay N/A 22+ 20000
Y00667R00000Q0L Vishay N/A 22+ 55000
Y00661R00000B9L Vishay N/A 23+ 65000
Y0065321R000T0L Vishay N/A 23+ 25000
Y00654K30000T9L Vishay N/A 23+ 78000
Y0075100R000F0L Vishay N/A 23+ 75000
Y0075100R000B0L Vishay N/A 23+ 90000
Y0075100R000T0L Vishay N/A 23+ 78000
Y006610R0000J9L Vishay N/A 22+ 289000
Y0065800R000B0L Vishay N/A 22+ 28000
Y0075100K000B9L Vishay N/A 23+ 45000
Y00652K80000T0L Vishay N/A 23+ 48000
Y00714K70000T0L Vishay N/A 23+ 90000
Y006625R0000F0L Vishay N/A 23+ 88000
Y0073100R010T0L Vishay N/A 23+ 89000
Y006630R1000T0L Vishay N/A 23+ 28000
Y0070200R000K0L Vishay N/A 21+ 50000
Y006910R0000K0L Vishay N/A 21+ 120000
Y0069100R000J9L Vishay N/A 21+ 45000
Y006575R0000F0L Vishay N/A 23+ 48000
Y006610R0000B0L Vishay N/A 22+ 90000
Y006633R2000F0L Vishay N/A 22+ 88000
Y0075100K000F0L Vishay N/A 23+ 89000
Y00731K00000T9L Vishay N/A 23+ 28000
Y006610R0000T9L Vishay N/A 23+ 50000
Y006650R1000T0L Vishay N/A 23+ 120000
Y006950R0000K0L Vishay N/A 22+ 55000
Y006530R0000Q0L Vishay N/A 22+ 78000
Y0065800R000T0L Vishay N/A 23+ 75000
Y0075100K000A0L Vishay N/A 23+ 58000

NC7SZ125M5X Memory Integrated Circuit IC Chip Single Ended Computer IC Chip

Q1:Who are you?

A1: We are a distributor of electronic components. Our products include IC. inductor, resistor, potentiometer, capacitor and
module, etc.Everything you can think of about electronic components!

Q2:Are you products original?
A2: Yes all products are original and produced by original manufacturers.

Q3:When will you ship?
A3:This depends on the quantity of the goods you ordered, we have stock, usually 15-20 days delivery time.

Q4:What is your warranty?
A4:365 days after goods have been received. Our products will be 100% tested before they are sent out.
