Lightweight B1 B2 Refractory Clay Fire Bricks For Boiler Insulation Furnace Lining
Lightweight B1 B2 Refractory Clay Fire Bricks For Boiler Insulation Furnace Lining
Lightweight B1 B2 Refractory Clay Fire Bricks For Boiler Insulation Furnace Lining
Lightweight B1 B2 Refractory Clay Fire Bricks For Boiler Insulation Furnace Lining
Lightweight B1 B2 Refractory Clay Fire Bricks For Boiler Insulation Furnace Lining
Lightweight B1 B2 Refractory Clay Fire Bricks For Boiler Insulation Furnace Lining
Specifications
Brand Name :
LEADSUN
Model Number :
B1 B2
Certification :
ISO
Place of Origin :
CHINA
MOQ :
500 pcs
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
1000 tons/month
Delivery Time :
15 days
Packaging Details :
Pallet
Refractoriness :
900-1500C
Size :
230*114*65mm 230*114*75mm
Density :
0.5-1.3g/cm3
Package :
Pallet
Shape :
Customizable
Color :
White or Pink
Description

Light weight B1 B2 Fire Clay Insulation Brick for Boiler Insulation Furnace Lining 230*114*65mm


Clay insulation brick introduction


Our lightweight insulating fire clay bricks are widely used in furnace wall lining, chimney construction, kiln insulation and pizza ovens. With high temperature resistance up to 1400°C and excellent energy-saving performance, these refractory bricks provide reliable heat insulation and long service life. According the shape, Clay insulation brick can be divided into standard brick, special-shaped insulating brick. The bulk density of lightweight heat-insulating brick is 0.60～1.25g/cm3. Working temperatures range from 900℃ to 1600℃ Good thermal shock resistance. Topower series lightweight heat insulation bricks are made from good quality and super-pure raw materials, with strictly classified fillings according to their grades.this material profitable by lessening fuel costs, construction costs and reducing the amount of time spent in the high temp furnace.

Insulation bricks are made of bauxite, mullite, kaolin and other raw materials, which are screened and evenly mixed with binders, and then fired at high temperature after pressing.

There are many types of lightweight insulation bricks, including fire clay insulation bricks, mullite insulation bricks, alumina hollow ball bricks, silicon insulation bricks, etc.

The insulation brick has the properties of high porosity, low thermal conductivity, light weight, thermal insulation, and Good thermal shock resistance. Mainly used in industrial equipment lining, insulation layer, kiln door backing, roof and other parts.

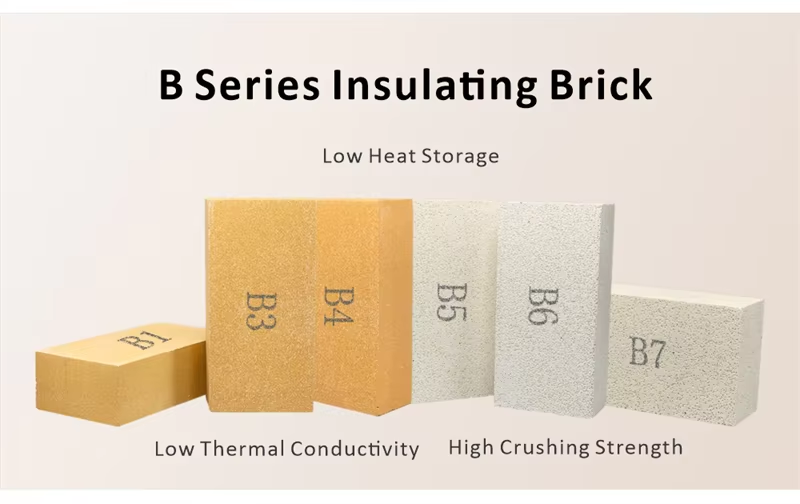

Item
B-1
B-2
B-3
B-4
B-5
≤ 2.0% Reheating Shrinkage Temp (℃)
900
1,000
1,100
1,200
1,300
Bulk Density (g/cm3)
0.70
0.70
0.75
0.80
0.80
(kg/cm2) Cold Crushing Strength
25
25
25
25
25
(W/m.k) at 350℃ Thermal conductivity
0.17
0.18
0.20
0.22
0.23
Brand Properties
B-6
B-7
C-1
C-2
C-3
≤ 2.0% Reheating Shrinkage Temp (℃)
1,400
1,500
1,300
1,400
1,500
Bulk Density (g/cm3)
0.90
1.00
1.10
1.20
1.25
(kg/cm2) Cold Crushing Strength
30
30
50
70
100
(W/m.k) at 350℃ Thermal conductivity
0.27
0.31
0.30
0.38
0.45
Main Applications
Ceramic Roller Kiln Reheating
Reheating Furnace
Blast Furnace
Petrochemical Furnace
General Industrial Furnace etc.


Description Of Product

The bulk density of lightweight heat-insulating brick is 0.60～1.25g/cm3. Working temperatures range from 900℃ to 1600℃ . Each grade of products has unique design to meet different thermal, physical and chemical demands.Jucos series lightweight heat-insulating bricks are made from good quality and super-pure raw materials, with strictly classified fillings according to their grades. .Each face of the brick is machined grinding to the required accurate size.this material profitable by lessening fuel costs, construction costs and reducing the amount of time spent in the high temp furnace.

Product Features
Lower thermal conductivity
Lower bulk density
Light weight character
Lower creep rate in high temp
Good thermal shock resistance
performance Higher temperate resistant with good refractoriness
Lightweight B1 B2 Refractory Clay Fire Bricks For Boiler Insulation Furnace Lining
Lightweight B1 B2 Refractory Clay Fire Bricks For Boiler Insulation Furnace Lining
Lightweight B1 B2 Refractory Clay Fire Bricks For Boiler Insulation Furnace Lining
Lightweight B1 B2 Refractory Clay Fire Bricks For Boiler Insulation Furnace Lining
