B1 B2 Fire Clay Insulation Brick Lightweight For Furnace Kiln Lining Cement Kiln
B1 B2 Fire Clay Insulation Brick Lightweight For Furnace Kiln Lining Cement Kiln
B1 B2 Fire Clay Insulation Brick Lightweight For Furnace Kiln Lining Cement Kiln
B1 B2 Fire Clay Insulation Brick Lightweight For Furnace Kiln Lining Cement Kiln
B1 B2 Fire Clay Insulation Brick Lightweight For Furnace Kiln Lining Cement Kiln
B1 B2 Fire Clay Insulation Brick Lightweight For Furnace Kiln Lining Cement Kiln
Specifications
Brand Name :
Leadsun
Model Number :
B1 B2 B4 B5 B6 B7 C1 C2 C3
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
100tons/week
Delivery Time :
10-15days
Packaging Details :
pallet
Refractoriness :
900-1500C
Size :
230*114*65mm 230*114*75mm
Density :
0.5-1.3g/cm3
Package :
Pallet
Shape :
Customizable
Color :
White or Pink
Description

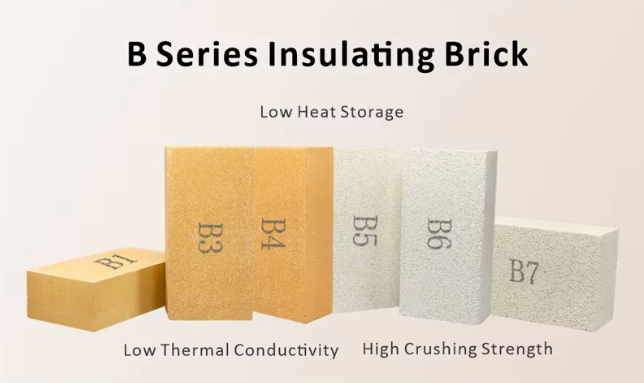

B1 B2 B4 B5 Fire Clay Insulation Brick Lightweight Insulating for Furnace Kiln Lining Cement Kiln 230 * 114 * 65mm

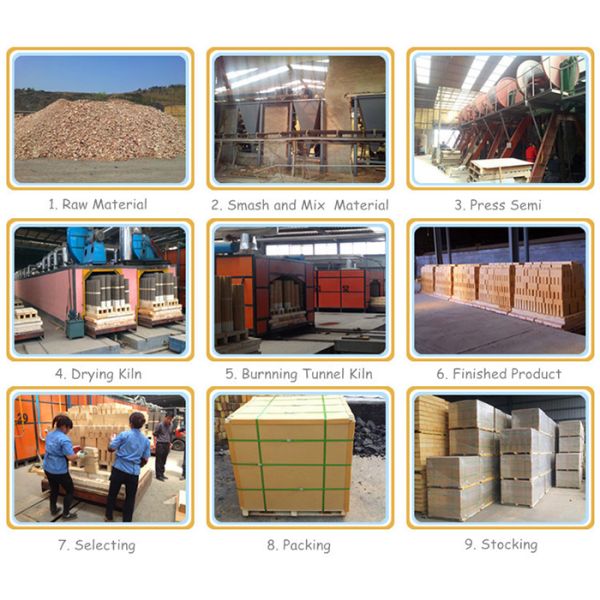

Fire clay insulation bricks are a type of lightweight thermal insulation material widely used in industrial kilns, boilers, hot air ducts and other high-temperature equipment. With their excellent insulation performance, stable chemical properties and good heat resistance, they have become one of the key materials for energy conservation, cost reduction and improvement of thermal efficiency. Insulation bricks are made of bauxite, mullite, kaolin and other raw materials, which are screened and evenly mixed with binders, and then fired at high temperature after pressing.


The lightweight, heat-insulating and fire-resistant clay bricks we produce are widely used in furnace lining, chimney construction, kiln insulation, pizza ovens, etc. They have a wide range of applications and the fire-resistant bricks can withstand temperatures up to 1400℃. They have excellent energy-saving performance, reliable insulation and a long service life. Clay insulation bricks are classified by shape into standard bricks and special-shaped insulation bricks. Customized lightweight insulation bricks with a density of 0.60 - 1.25g/cm3 can also be accepted. The working temperature is 900℃ to 1600℃, and they have good thermal shock resistance.


Item
B-1
B-2
B-3
B-4
B-5
≤ 2.0% Reheating Shrinkage Temp (℃)
900
1,000
1,100
1,200
1,300
Bulk Density (g/cm3)
0.70
0.70
0.75
0.80
0.80
(kg/cm2) Cold Crushing Strength
25
25
25
25
25
(W/m.k) at 350℃ Thermal conductivity
0.17
0.18
0.20
0.22
0.23
Brand Properties
B-6
B-7
C-1
C-2
C-3
≤ 2.0% Reheating Shrinkage Temp (℃)
1,400
1,500
1,300
1,400
1,500
Bulk Density (g/cm3)
0.90
1.00
1.10
1.20
1.25
(kg/cm2) Cold Crushing Strength
30
30
50
70
100
(W/m.k) at 350℃ Thermal conductivity
0.27
0.31
0.30
0.38
0.45


Advantages:


Lower thermal conductivity

Lower bulk density

Light weight character

Lower creep rate in high temp

Good thermal shock resistance

performance Higher temperate resistant with good refractoriness


Applications:

Ceramic Roller Kiln Reheating

Reheating Furnace

Blast Furnace

Petrochemical Furnace

General Industrial Furnace etc.

Fire-resistant clay insulation bricks are like the "thermal insulation suit" for high-temperature equipment. While safeguarding the stable operation of the thermal system, they silently fulfill the mission of energy conservation. When choosing them, one should consider factors such as temperature, environment and structural characteristics comprehensively, so that they can perform at their best in the flickering flames of the furnace.
