Specifications
Brand Name :
LEADSUN
Model Number :
High Alumina Castable
Certification :
ISO
Place of Origin :
China
MOQ :
1 ton
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
2000 tons/month
Delivery Time :
10 days
Packaging Details :
Kraft paper bag + Pallet
Refractoriness :
1350-1850C
Size :
1-6mm
Package :
bag+ pallet
Al2O3 :
40-90%
Color :
Grey
Type :
low cement, high alumina, insulation type,plastic,gunning type
Description
Product Overview:

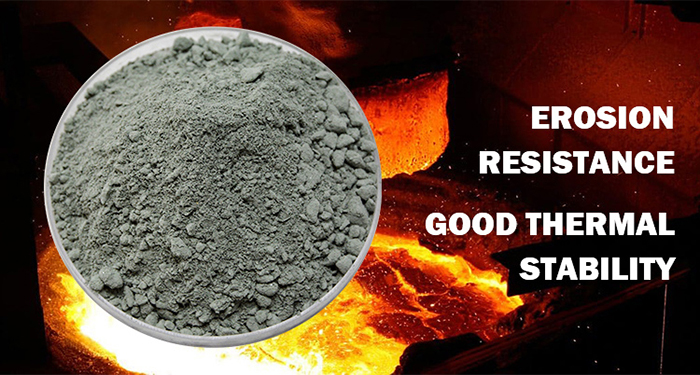

Our LDSHA Series High Alumina Castable represents a step-change in performance over conventional dense castables. Engineered for applications where temperature, abrasion, and structural load are paramount, it is formulated with premium aggregates like high-quality bauxite, mullite, andalusite, or corundum. Combined with silica powder, α-alumina micro-powder, and specialized additives, this castable delivers exceptional hot strength and corrosion resistance, making it the superior choice for the most demanding thermal containment challenges.

Technical data
Item LDSHA75 LDSHA80 LDSHA85 LDSHA95
Service Temp ℃ 1600 1650 1700 1750
Bulk Density (g/cm3)
(Dried at 110℃)
2.5 2.6 2.7 3.0
CCS 110℃
(Mpa) 1100℃
1500 ℃
65
55
80
70
60
85
90
80
100
95
85
110
MOR 110℃
(Mpa) 1100℃
1500℃
10
9
11
11
9
12
12
10
13
13
12
15
Max Grain Size (mm) 6 6 6 6
Chemical Analysis(%)
Al2O3
Fe2O3

75
2.5

80
2.0

85
1.8

95
1.2
Application Guidelines
Mixer
Placement
Water/Mixer Temp℃
Mixing Time(Min):Dry/Wet

P
V/T
20±5
2/5

P
V/T
20±5
2/5

P
V/T
20±5
2/5

P
V/T
20±5
2/5
Water % (Typical) 7-9 7-9 6-8 6-7
Superior Performance Advantages:
  • Exceptional High-Temperature Stability: Formulated to maintain structural integrity and strength under continuous exposure to ultra-high temperatures.
  • Outstanding Abrasion & Erosion Resistance: Withstands the severe wear from solid charge materials, slag, and high-velocity gases, significantly extending campaign life.
  • Enhanced Mechanical Strength: Exhibits higher cold crushing strength (CCS) across all temperature ranges compared to standard castables, providing robust load-bearing capability.
  • Improved Corrosion Resistance: Offers better defense against chemical attack from slags and fluxes in aggressive melting and processing environments.
  • Engineered for Critical Applications: Specifically designed to outperform where conventional castables reach their limits.

75% - 95% Al2O3 High Alumina Castable Refractory Insulation High CCS

75% - 95% Al2O3 High Alumina Castable Refractory Insulation High CCS

75% - 95% Al2O3 High Alumina Castable Refractory Insulation High CCS

75% - 95% Al2O3 High Alumina Castable Refractory Insulation High CCS

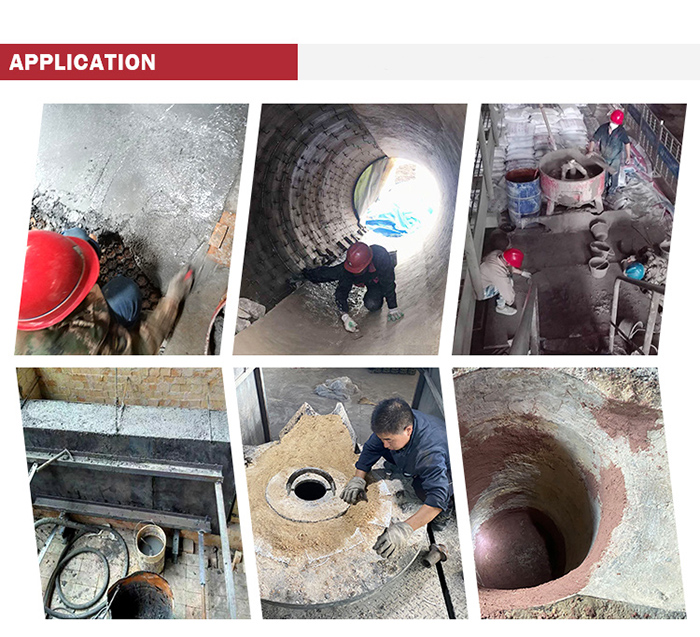

Targeted High-Performance Applications:

This castable is ideally specified for lining and repairing critical high-wear, high-temperature zones in:

  • Waste & Biomass Incineration: Primary chambers, slagging zones, and cyclone areas.
  • Non-Ferrous Metal Processing: Aluminum holding & melting furnaces, copper refining vessels.
  • Cement & Lime Industry: High-temperature zones of rotary kilns, preheater cyclones.
  • Steel Industry: Ladles, tundishes, induction furnace linings, and other secondary steelmaking vessels.
  • Petrochemical: High-temperature reformers and cracking units.
The Definitive Choice for Demanding Thermal Processes:

When process intensity elevates the demands on refractory linings, our High Alumina Castable provides the necessary margin of safety and longevity. Its optimized formulation ensures not just survival but reliable performance, reducing unscheduled downtime and total cost of ownership in your most critical thermal assets.
