$Furnace High Alumina Corundum Castable Low Cement Refractory Castable$

Specifications

Brand Name :

LEADSUN

Model Number :

High Alumina Castable

Certification :

ISO

Place of Origin :

China

MOQ :

1 ton

Price :

Negotiable

Payment Terms :

L/C,D/P,T/T,Western Union

Supply Ability :

2000 tons/month

Delivery Time :

10 days

Packaging Details :

Kraft paper bag + Pallet

Refractoriness :

1350-1850C

Size :

1-6mm

Package :

bag+ pallet

Al2O3 :

40-90%

Color :

Grey

Type :

low cement, high alumina, insulation type,plastic,gunning type

Description

Low Cement Refractory Castable High Alumina Castable Corundum Castable for Furnace and Kiln Lining

High Alumina Castable Introduction

High alumina refractory castable is an unshape material made by mixing high alumina bauxite as the main refractory aggregate, adding additives, binders, and other materials. Mixing with water can be directly used, using vibration casting for molding. Generally speaking, the operating temperature range is between 1400 ° C and 1600 ° C. High alumina castable can be directly cast into an integral lining on industrial furnaces or prefabricated into fire-resistant prefabricated blocks, which can be used for masonry in industrial furnaces.

Characteristic of High Alumina Castable

1.Has a certain degree of corrosion resistance;

2.High refractory temperature and high load softening temperature;

3.High compressive strength and excellent thermal shock resistance;

4.High density, low porosity.

5. Good resistance to flake performance.

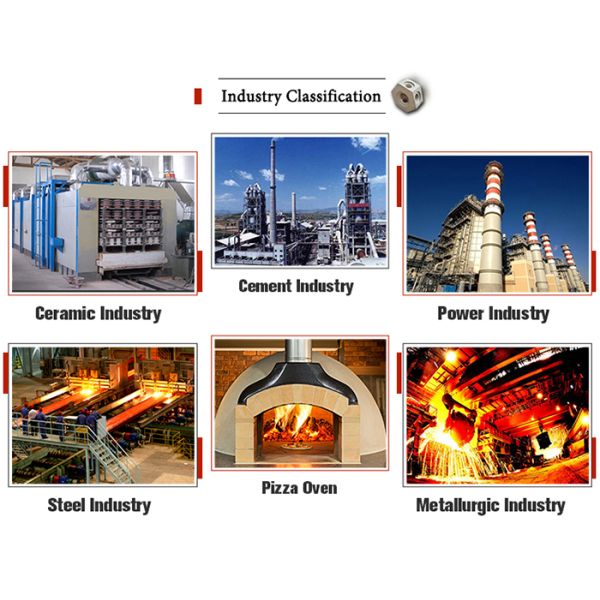

Applications:
It is commonly used for the lining of CFB boiler furnace top, rear wall and other parts, various heat treatment furnace linings and burners, electric furnace tapping trough, high temperature section of lime shaft kiln, Rotary kiln head, blast furnace hot blast furnace, heating furnace, ceramic kiln, power plant boiler and other industrial kilns, as well as the kilns and thermal equipment of petroleum, chemical industry, building materials, power and machinery industries.
1. Furnaces of metallurgy industry, heat treatment furnace.
2. Furnace of incineration of garbage, recirculating fluidized bed furnace.
3. Furnaces of chemical industry and construction industry.
4. Tundish lining



Item

LDSHA75

LDSHA80

LDSHA85

LDSHA95


Service Temp ℃

1600

1650

1700

1750


Bulk Density (g/cm3)
(Dried at 110℃)

2.5

2.6

2.7

3.0


CCS   110℃
(Mpa) 1100℃
1500 ℃

65
55
80

70
60
85

90
80
100

95
85
110


MOR  110℃
(Mpa) 1100℃
1500℃

10
9
11

11
9
12

12
10
13

13
12
15


Max Grain Size (mm)

6

6

6

6


Chemical Analysis(%)
Al2O3
Fe2O3


75
2.5


80
2.0


85
1.8


95
1.2


Application Guidelines
Mixer
Placement
Water/Mixer Temp℃
Mixing  Time(Min):Dry/Wet


P
V/T
20±5
2/5


P
V/T
20±5
2/5


P
V/T
20±5
2/5


P
V/T
20±5
2/5


Water % (Typical)

7-9

7-9

6-8

6-7
