Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation
Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation
Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation
Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation
Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation
Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation
Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation
Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation
Specifications
Brand Name :
LEADSUN
Model Number :
1000C 1100C
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
50 pcs
Price :
2.0usd - 15.0usd
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
2000 m3/month
Delivery Time :
10 days

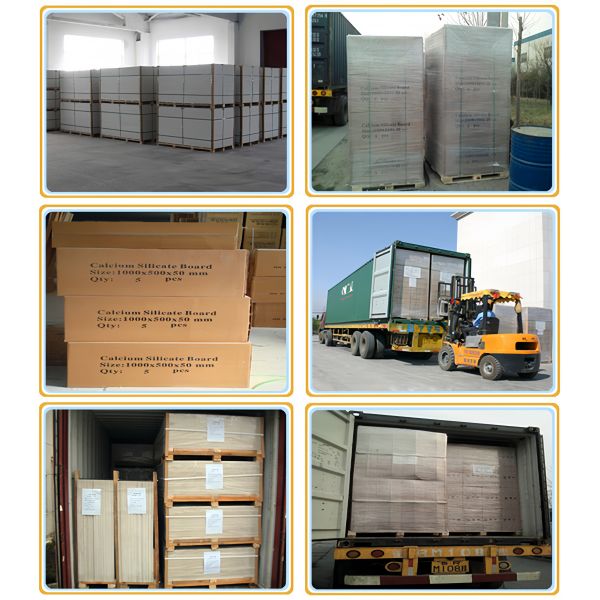

Packaging Details :
Carton box + Pallet
Refractoriness :
1000-1100C
Size :
customizable
Package :
carton box + pallet
Type :
board,pipe
Color :
White
Density :
240-800kg/m3
Description
Quick Detail:

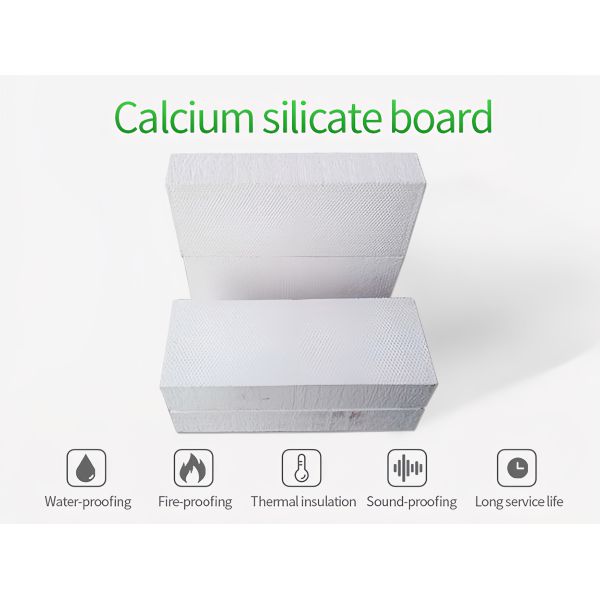

Leadsun Calcium Silicate Board is an asbestos-free thermal insulation product capable of withstanding continuous operating temperatures from 650°C up to 1100°C. It is lightweight, exhibits low thermal conductivity, high mechanical strength, easy installation, reliability, and durability. Available in three grades (650, 1000, and 1100), it is commonly used as backup insulation in steel, petrochemical, ceramic, cement, and glass industries, as well as for fire protection in building construction. It not only provides energy savings but also enhances production efficiency and personnel safety in industrial environments. In housing construction, it is also used for ceilings, fireproof and heat insulation walls, and decorative sound absorption materials.

Technical data
Item Unit High Temperature(1000℃)
Bulk Density Kg/m3 240(±10%)
Flexural Strength Mpa ≥0.50
Thermal Conductivity W/m.k ≤0.056
Temp. Limit ℃ 1000
Linear Shrinkage % 2(1000 C,16hrs)

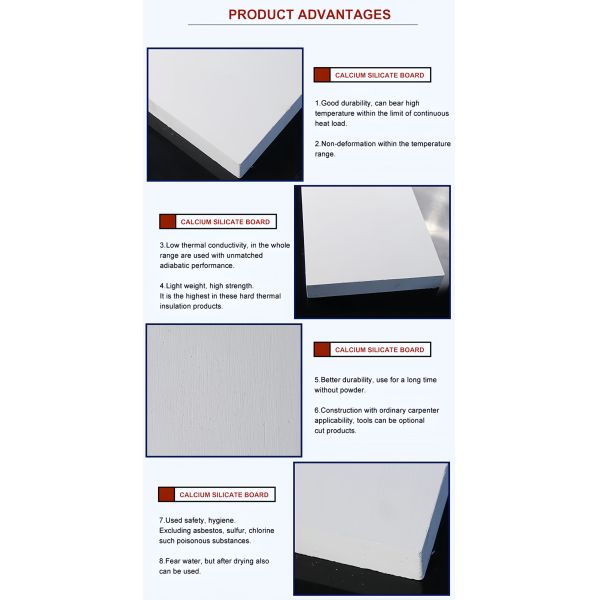

Features:
  • High Temperature Resistance: Withstands continuous temperatures up to 1100°C.
  • Asbestos-Free & Environmentally Safe: Non-toxic and free from hazardous substances.
  • Low Thermal Conductivity: Excellent insulation performance for energy efficiency.
  • High Mechanical Strength: Good flexural and compressive strength for durable applications.
  • Lightweight & Easy to Handle: Facilitates quick installation and reduces structural load.
  • Moisture Resistant: Non-deforming in water, ensuring long service life.
  • Good Dimensional Stability: Maintains shape and performance under thermal cycling.
  • Versatile Applications: Suitable for both industrial and construction uses.
Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation Industrial Furnace Calcium Silicate Board Material 650 - 1100°C Thermal Insulation
Standard Sizes:
  • Thickness: 25mm, 50mm, 75mm, 100mm (custom thickness available)
  • Dimensions: 1200mm × 600mm, 1200mm × 1200mm, or as customized

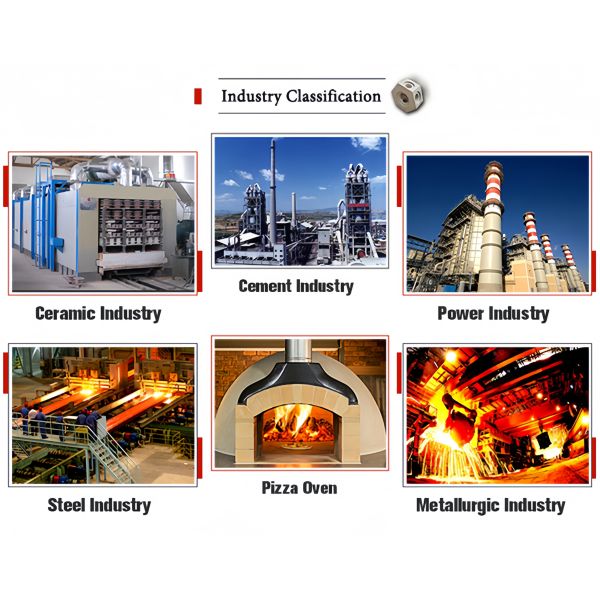

Applications:
  • Industrial Furnace Backup Insulation: Reheating furnaces, annealing furnaces, rotary kilns, glass tanks.
  • Steel & Metallurgy: Ladles, tundishes, transfer ladles, hot metal cars.
  • Petrochemical & Refining: Heaters, reformers, sulfur recovery units, pipe supports.
  • Ceramic & Cement: Tunnel kilns, shuttle kilns, dip tubes, nozzles, flow gates.
  • Building & Construction: Fireproof ceilings, wall insulation, sound absorption panels.
  • Power & HVAC: Boiler insulation, duct lining, thermal equipment enclosures.
