High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts
High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts
High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts
High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts
High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts
High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts
High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts
High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts
Specifications
Brand Name :
SUNWOOL
Model Number :
Rockwool Pipe
Certification :
ISO CE
Place of Origin :
China
MOQ :
100 m
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
100000 m/month
Delivery Time :
10 days
Packaging Details :
Plastic Bag
Refractoriness :
750C
Size :
customizable
Package :
plastic bag
Type :
board,pipe blanket
Blanket density :
50-120kg/m3
Board density: :
40-200kg/m3
Pipe density :
80-150kg/m3
Description
15 YEARS OF EXPERIENCE

Leadsun brings over 15 years of expertise in manufacturing high-performance insulation materials. Our rock wool pipe sections are engineered to deliver thermal insulation, fire prevention, moisture resistance, and acoustic performance, making them ideal for HVAC, industrial piping, and ductwork systems.

Technic parameter
Product performance Unit LDS 60-200 Standard
Apparent Density kg/m3 140 160 180 GB/T5480
Compression strength(10%defomation) kPa ≥40 ≥50 ≥60 GB/T13480
Tensile strength (perpendicular to surface) kPa ≥7.5 ≥10 ≥15 JG149-2003
Thermal conductivity(25℃) w/(m•K) ≤0.040 ≤0.040 ≤0.040 GB/T10295
Fire resistant -- Non-combustible grade A GB/T8624
Water repellence % ≥98 ≥98 ≥98 GB/T10299
Acid index -- ≥1.8 ≥1.8 ≥1.8 GB/T5480
Moisture absorption % ≤1.0 ≤1.0 ≤1.0 GB/T5480
water Absorption(partial immersion 24h) kg/m2 ≤0.5 ≤0.5 ≤0.5 GB/T25975-2010
water Absorption(partial immersion 28d) kg/m2 ≤2.0 ≤2.0 ≤2.0 GB/T25975-2010
Noise Reduction Coefficient(NRC) --- ≥0.6 ≥0.6 ≥0.6 GB/T18696
Dimension Stability % ≤1.0 ≤1.0 ≤1.0 GB/T8811
Thickness Tolerance mm ±3 ±3 ±3 GB/T5480
Squareness mm/m ≤5 ≤5 ≤5 GB/T5480
Flatness mm ≤6 ≤6 ≤6 GB/T25975-2010
Melting Point ℃ ＞1000
Quick Detail:

Leadsun Rock Wool Pipe Insulation is a Class A1 non-combustible material designed for thermal and acoustic insulation of pipes, ducts, and cylindrical equipment. With excellent fire prevention, moisture resistance, good durability, and dimensional stability, it ensures long-lasting performance in various environmental and operational conditions.

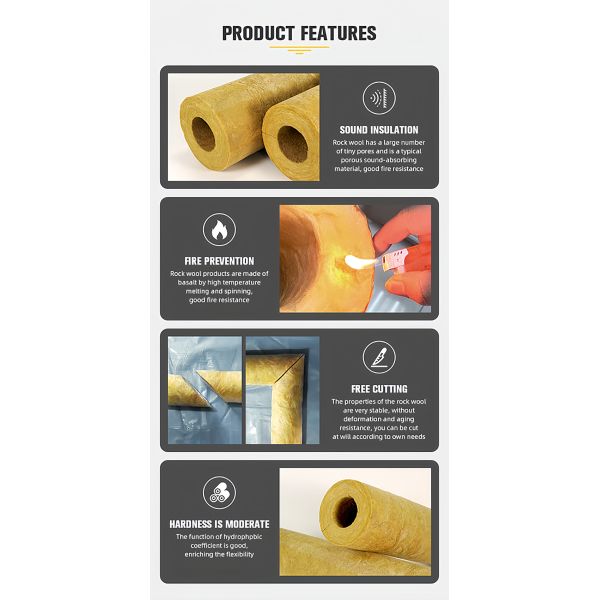

Features:
  • High Fire Resistance:Class A1 non-combustible material, suitable for fire-rated pipe and duct systems.
  • Excellent Thermal Insulation:Low thermal conductivity (≤0.040 W/m·K) ensures effective heat retention and energy savings.
  • Superior Acoustic Performance:Effectively reduces noise transmission from piping systems.
  • Water Repellent & Moisture Resistant:Hydrophobic treatment (≥98%) prevents water absorption, maintaining insulation performance in humid environments.
  • Easy to Install:Pre-formed pipe sections with longitudinal slit for quick installation on existing pipes.
  • Corrosion Resistant:Suitable for industrial and chemical environments.
  • Environmentally Safe:Free from asbestos and CFCs.
  • Dimensional Stability:Maintains shape and performance over a wide temperature range.
Available Sizes:
  • Inner Diameter (ID):15mm to 1200mm (customizable)
  • Thickness (T):25mm to 100mm
  • Length (L):1000mm or as required
  • Density Options:60kg/m³, 80kg/m³, 100kg/m³, 120kg/m³, 140kg/m³, 160kg/m³, 180kg/m³
High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts
Applications:
  • HVAC Systems:Insulation for heating, ventilation, and air conditioning pipes and ducts.
  • Industrial Piping:Thermal insulation for hot and cold pipelines in power plants, refineries, and chemical plants.
  • Fire Protection:Fire-rated pipe insulation for critical safety systems.
  • Acoustic Control:Noise reduction for mechanical piping systems.
  • Marine & Offshore:Insulation for ship piping and offshore platform systems.
  • Commercial Buildings:Pipe insulation in hotels, hospitals, shopping malls, and data centers.
