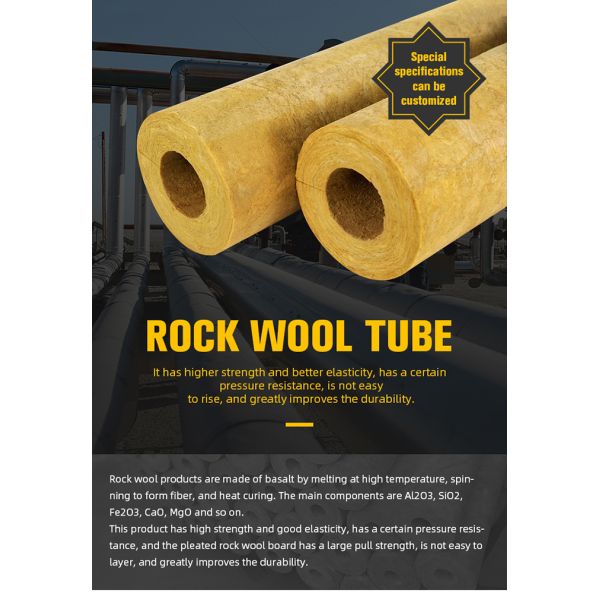

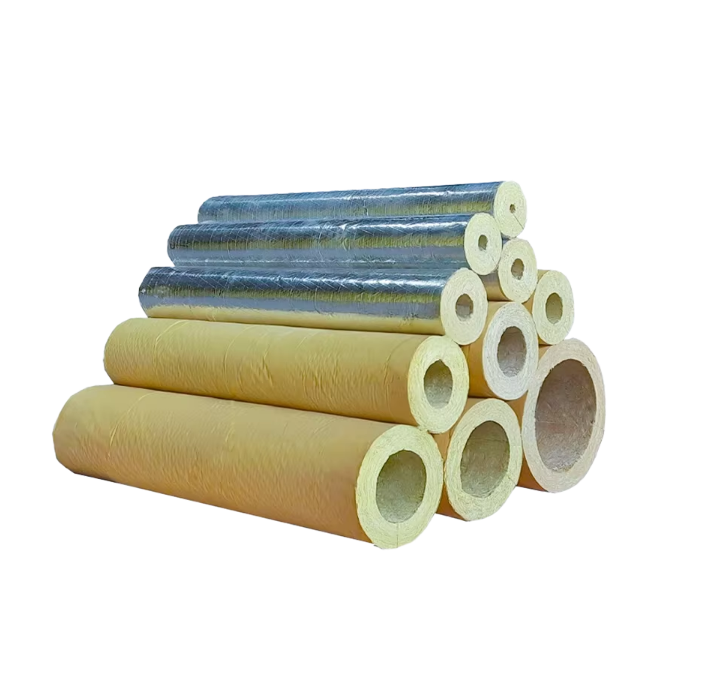

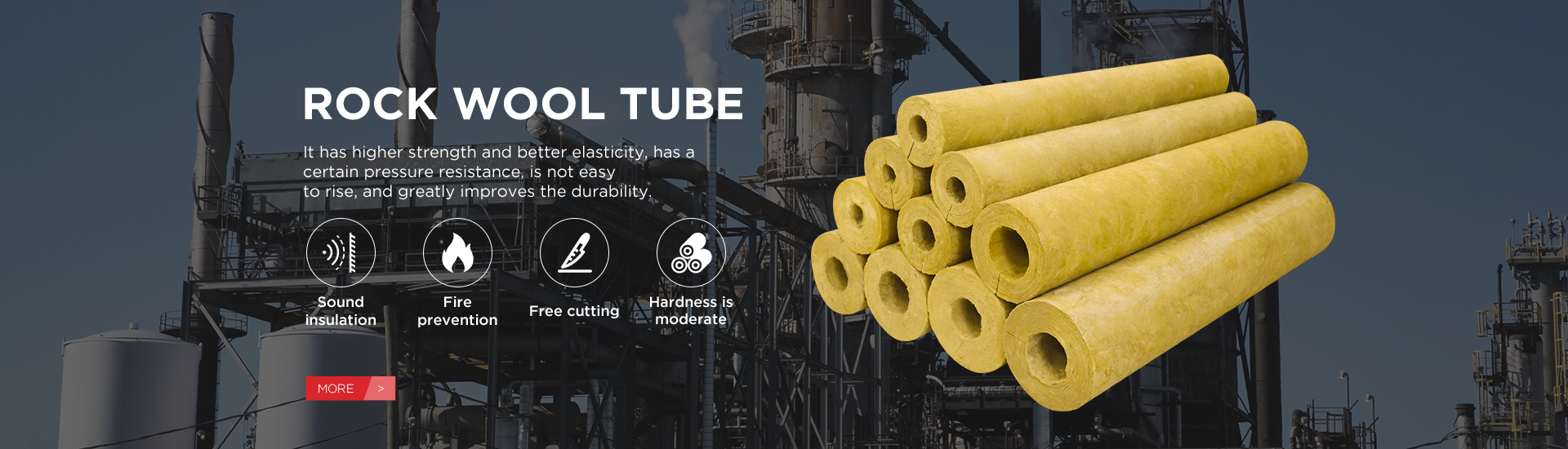

Fireproof RockWool Pipe Wired Mesh Heat Insulation With Aluminum Foil
Fireproof RockWool Pipe Wired Mesh Heat Insulation With Aluminum Foil
Fireproof RockWool Pipe Wired Mesh Heat Insulation With Aluminum Foil
Fireproof RockWool Pipe Wired Mesh Heat Insulation With Aluminum Foil
Fireproof RockWool Pipe Wired Mesh Heat Insulation With Aluminum Foil
Fireproof RockWool Pipe Wired Mesh Heat Insulation With Aluminum Foil
Specifications
Brand Name :
SUNWOOL
Model Number :
Rockwool Pipe
Certification :
ISO CE
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
10000 pcs/day
Delivery Time :
7days
Packaging Details :
Plastic bag
Thickness :
30~150MM
Length :
1000mm
Inside Diameter :
22MM~610MM(1/2"~24")
Refractoriness :
750C
Size :
customizable
Package :
plastic bag
Type :
board,pipe blanket
Blanket density :
50-120kg/m3
Board density: :
40-200kg/m3
Pipe density :
80-150kg/m3
Description


High Quality Rock Wool Pipe Fireproof For Heat Insulation Mineral Wool With Aluminum Foil For Roof Wall And Building


Leadsun rock wool wired-mesh mat is made by sewing rock wool mat with galvanized or stainless steel mesh, which is easy to construct, and suitable for thermal insulation, fire prevention, and sound absorption of large storage tanks, boilers, and large-diameter pipelines. It can be laminated wih aluminium glass cloth. We provide low chlorine products.


Rock wool type insulation have excellent fire resistant properties. they have a melting point about 1170 Centigrade. This fire resistant ability gives it a huge advantage over insulation products like foam, fiberglass and cellulose that would burn at much lower temperatures. Rock wool products are often used for fire blocking applications, insulating around chimneys and fireplaces and situations where the insulation needs to be left exposed.


Pipe insulation materials are used to retard the flow of heat energy by reducing heat loss or gain from pipe work and also as acoustic insulation. Adding pipe insulation will keep the heat in your heating system. It will reduce the amount of energy you use to heat your water and hot water will stay hotter for longer. Wrap the insulation round your pipes and you will notice the difference straight away.


Performance
Test Standard
Compliance
Mineral Fiber Pipe Insulation Types3
ASTM C547
Use Temperature ,Max
1200 °F (650°C)
ASTM C411
Reaction to Fire
Flame Spread Index = 0; Smoke Developed Index = 5; Class A
ASTM E84
Density
70-150kg/m3
ASTM C303
Corrosion Resistance
Stress Corrosion Cracking Tendency of Austenitic Stainless Steel - Passed
ASTM C795
Dimensional Stability
Linear Shrinkage = < 0.5 % @ 1200 °F (650 °C)
ASTM C356
Thermal Resistance
0.044W/mk@93°C, 0.062W/mk@204°C, 0.088W/mk@316°C, 0.110W/mk@371°C
ASTM C518 (C177)
Reaction to Moisture
Water Vapor Sorption - 0.2 vol%
ASTM C1104


Length: 1000mm

Inside Diameter: 22MM~610MM(1/2"~24")

Thickness: 30~150MM


Advantages:


1.It features high-temperature resistance, strong corrosion resistance, stable chemical properties, and excellent sound absorption and noise reduction performance. Its fire resistance rating reaches A1 class.


2.Industrial thermal insulation rock wool felt is specifically designed for industrial insulation applications.


3.Products can be manufactured as hydrophobic or low-chlorine types upon request. Surface-facing materials such as aluminum foil fiberglass cloth (ALGC) can also be applied as needed.


Application:


1.Suitable for dry hanging stone curtain wall, aluminum-plastic composite plate curtain wall, aluminum panel curtain wall insulation system etc.


2.Other places that has high requirement for fire-proof, thermal insulation, water-proof etc.


3.Used as fire barrier for external thermal insulation composite system of non-class A fire classification insulation
