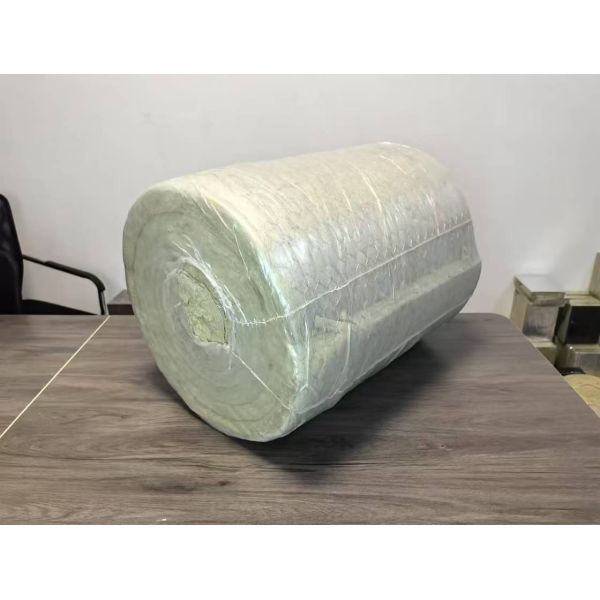

Thermal Insulation Mineral Wool Blanket Rockwool Roll With Wire Mesh Alumina Foil
Thermal Insulation Mineral Wool Blanket Rockwool Roll With Wire Mesh Alumina Foil
Thermal Insulation Mineral Wool Blanket Rockwool Roll With Wire Mesh Alumina Foil
Thermal Insulation Mineral Wool Blanket Rockwool Roll With Wire Mesh Alumina Foil
Thermal Insulation Mineral Wool Blanket Rockwool Roll With Wire Mesh Alumina Foil
Thermal Insulation Mineral Wool Blanket Rockwool Roll With Wire Mesh Alumina Foil
Specifications
Brand Name :
SUNWOOL
Model Number :
Basalt Blanket
Certification :
ISO CE
Place of Origin :
China
MOQ :
50 Rolls
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
10000 rolls/month
Delivery Time :
7 days
Packaging Details :
Plastic bag
Refractoriness :
750C
Size :
customizable
Package :
plastic bag
Type :
board,pipe blanket
Blanket density :
50-120kg/m3
Board density: :
40-200kg/m3
Pipe density :
80-150kg/m3
Description

Thermal Insulation Rockwool Roll With Wire Mesh & Alumina Foil Mineral Wool Blanket For Insulation

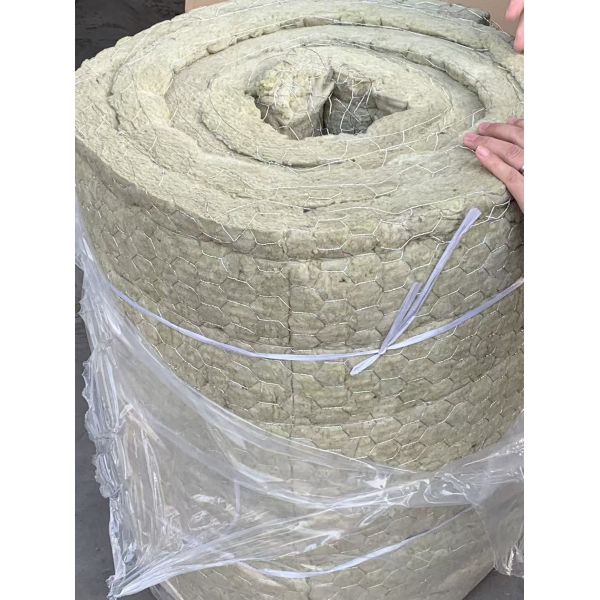

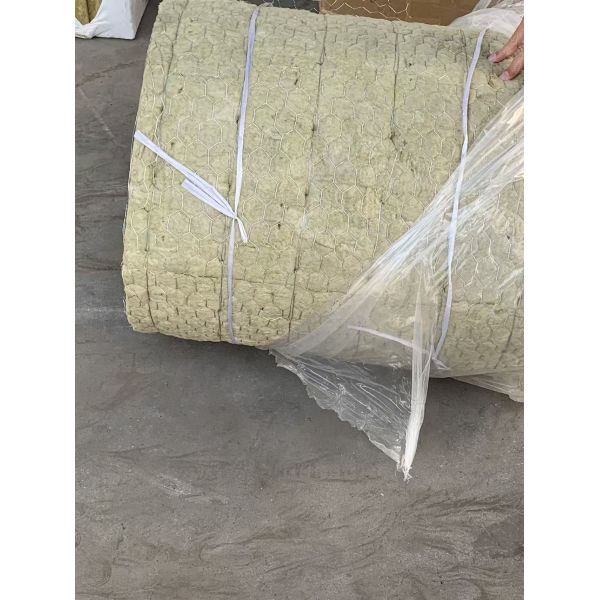

The Leadsun series rock wool mat is stitched with galvanized or stainless steel mesh, ideal for thermal insulation, fire prevention, and sound absorption in storage tanks, boilers, and large-diameter pipelines. It can also be laminated with aluminum glass cloth. We offer low chlorine options for specific industrial needs.

PARAMETER
LDS 40-80
LDS 90-120
UNIT
STANARD
Density
40-80
90-120
KG/M3
ASTM C167
Dimensions
Excess Permitted

ASTM C592-24




Thermal Conductivity
24℃
0.035
0.033





W/m.k





ASTM C177
38℃
0.037
0.035
70℃
0.040
0.038
100℃
0.046
0.042
150℃
0.051
0.048
200℃
0.064
0.056
250℃
0.076
0.063
300℃
0.080
0.070
Recommended temperature
650
650
℃
ASTM C411-05
ASTMC447-03
Maximum use temperature*
750
750
℃
ASTMC411


Surface burning characteristics
Smoke developed index

10

ASTM E84-24
Flame spread index

0


ASTM E84-24

Combustion Performance

Non-flammable,fire rating A1

EN13501-1 BS476 Part4
GB/T 19686-2015
GB 8624-2012
Volumetric hygroscopic rate
1≤
%
ASTM C1104/1104M
Mass hygroscopic rate
1≤
%
ASTM C1104/1104M

Linear shrinkage
length
0.6
%


ASTM C356
Width
0.4
Thickness
-0.7
water Vapor sorption by weight
0.3
%
ASTM C1104/1104M

Water absorption
<0.2
KG/M2

EN13472
<20
KG/M3
Chloride ion content(Optional)
9
PPM
ASTM C871

Hot-Surface Performance
No warping flaming glowing melting or fiber degradation during hot surface exposure


ASTM C447-15
External Stress Corrosion Cracking Tendency of Austenitic Stainless Steel

No Cracks


ASTM C795-08(2023)
Non-Fibrous(Shot) Content
9.9
%
ASTM C592-24
Average Fiber Diameter
3.6
um
GB/T 5480-2017
Hydrophobic Nature
99.9
%
GB/T 10299-2011
Non combustible
NO

ASTM C592-24
Acidity Coefficient(MK)
2.01

GB/T 19686-2015
Sound Absorption Coefficient
NRC=1

ASTM C423-23e1
Odor Emission
0

ASTM C592-24

Radioactive
Internal IRRADIATION INDEX Ira 0.3
External IRRADIATION INDEX Ir 0.4


GB/T 19686-2015
Formaldehyde Release Amount
0.2

GB/T 19686-2015
Corrosiveness of Steel, Copper,and Aluminum
Steel Sheet 39.5 Copper Sheet 40 Aluminum Sheet 27.5


ASTM C592-24
Fungi Resistance
No mold growth under a 40x microscope

ASTM C592-24
Health and safety
Asbestos
No asbestos

HJ/T206, ISO 22262-1
NIOSH 9002
Irritating odor
No Irritating odor

ASTM C665
Bacteria
No Bacteria

ASTM C1338
PH
8.5

ASTM C871

Note:

* Standard product width include 24" and 48" (600mm and 1200mm)
** Thickness may vary by request location. Suggest use two layers half thickness to instead when thickness more than 200mm.
*** Standard product lengths include 10' and 16'(3m and 5m),other lengths can be customized.

Features

Industrial thermal insulation rock wool felt is specially designed for industrial insulation applications. It offers high temperature resistance, excellent corrosion resistance, stable chemical properties, and superior sound absorption and noise reduction. The product achieves A1 fire resistance rating.

Optional types include hydrophobic and low-chlorine rock wool. Surface facing materials such as aluminum foil and fiberglass cloth (ALGC) can be applied upon request.
