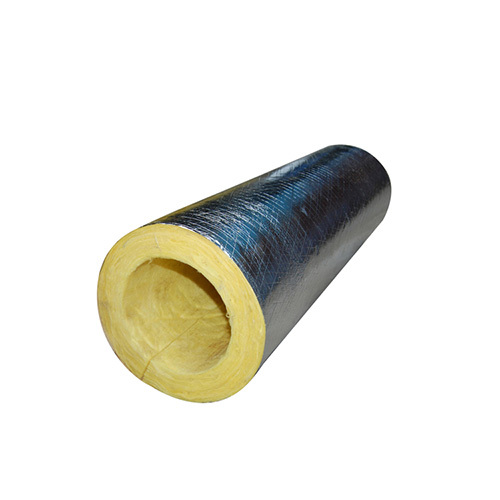

Insulation Glass Wool Pipe Fireproof For Thermal Heat Preservation Pipes
Insulation Glass Wool Pipe Fireproof For Thermal Heat Preservation Pipes
Insulation Glass Wool Pipe Fireproof For Thermal Heat Preservation Pipes
Insulation Glass Wool Pipe Fireproof For Thermal Heat Preservation Pipes
Insulation Glass Wool Pipe Fireproof For Thermal Heat Preservation Pipes
Insulation Glass Wool Pipe Fireproof For Thermal Heat Preservation Pipes
Specifications
Brand Name :
SUNWOOL
Model Number :
Glasswool Pipe
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
100 m
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
100000 m/month
Delivery Time :
10 days
Packaging Details :
100000 m/month
Refractoriness :
650C
Size :
customizable
Package :
vacuum plastic bag
Type :
board,pipe ,blanket
Blanket density :
10-48kg/m3
Blanket Width :
1200mm
Blanket Thickness :
25-200mm
Description

Glasswool Insulation Tube for Thermal and Heat Preservation Pipes

Glass wool pipe is produced using advanced centrifugal technology, with eco-friendly thermosetting resin binders added to molten glass to form elastic glass fibers. The fibers have a diameter of only a few microns, and moisture-proof facing can be applied online upon request.

Glass wool is a man-made inorganic fiber made from natural minerals such as quartz sand, limestone, and dolomite, along with additives like soda ash and borax. The molten glass is spun into fine fibers, which interlock to create a porous structure with numerous air pockets. This structure provides excellent thermal insulation and sound absorption.

Unit Specification
Average diameter of fiber um ≤ 8
Weight kg/m3 64-100
Thermal Conductivity W/(m`k) 0.030-0.044
Inflammable property Inflammable
Hydrophobic Coefficient % %
Service Temperature ℃ -120~400
Slag Ball % ≤ 0.3
Water % ≤ 1.0
Water Absorption Coefficient % ≤ 1.5
Description Data Unit Standard
Thermal conductivity ID at average temperature 10℃ 0.032 W/(m`k) EN ISO 8497
40℃ 0.034
Reaction to fire Not flammable
Not flammable
Not flammable		 A1LM06q.3 EN13501
-1NF
VKF
Application temperature - 300* ℃ EN 14707
Specific heat capacity Cp 0.84 KJ/(kg`k) -
Special properties hydrophobic Water absorption ≤ 1 kg/m2 EN 13472
AGI Q 132
Impedance (length-related) - ≥30 kPa`s/m2 EN 29053
Insulating material reference number - 10.04.02.50.99 - AGI Q 132

Scope of Application

Widely used for thermal insulation and sound absorption in:

  • Industrial workshops
  • Prefabricated houses and portable cabins
  • Warehouses and public facilities
  • Exhibition centers and shopping malls
  • Indoor playgrounds, sports stadiums, and other commercial or recreational buildings
