Thermal Insulation GlassWool Pipe Fireproof With Wire Mesh Alumina Foil
Thermal Insulation GlassWool Pipe Fireproof With Wire Mesh Alumina Foil
Thermal Insulation GlassWool Pipe Fireproof With Wire Mesh Alumina Foil
Thermal Insulation GlassWool Pipe Fireproof With Wire Mesh Alumina Foil
Thermal Insulation GlassWool Pipe Fireproof With Wire Mesh Alumina Foil
Thermal Insulation GlassWool Pipe Fireproof With Wire Mesh Alumina Foil
Specifications
Brand Name :
SUNWOOL
Model Number :
Glass Wool Pipe
Certification :
ISO CE
Place of Origin :
China
MOQ :
10 meter
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
10000 meter/week
Delivery Time :
7days
Packaging Details :
Plastic Bag
Density :
64-100 kg/m3
Thickness :
customized
Width :
600–1200 mm
Diameter :
customized
Refractoriness :
650C
Size :
customizable
Package :
vacuum plastic bag
Type :
board,pipe ,blanket
Blanket density :
10-48kg/m3
Blanket Width :
1200mm
Blanket Thickness :
25-200mm
Description

Thermal Insulation Glass Wool Tube Glass Wool Pipe High Quality Fireproof With Wire Mesh Alumina Foil

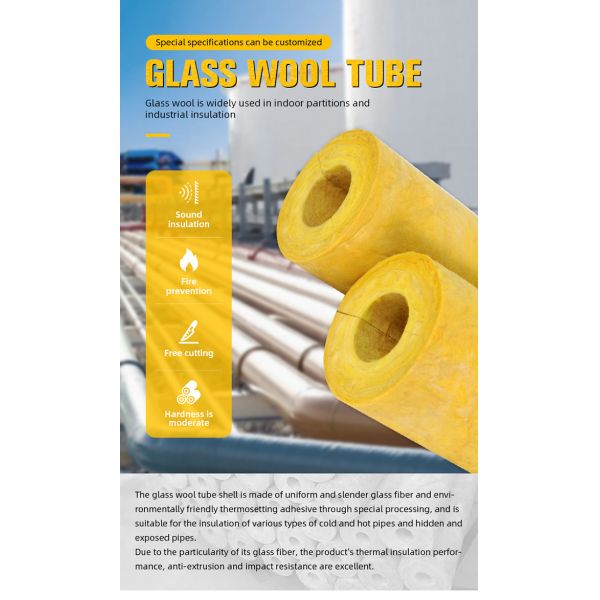

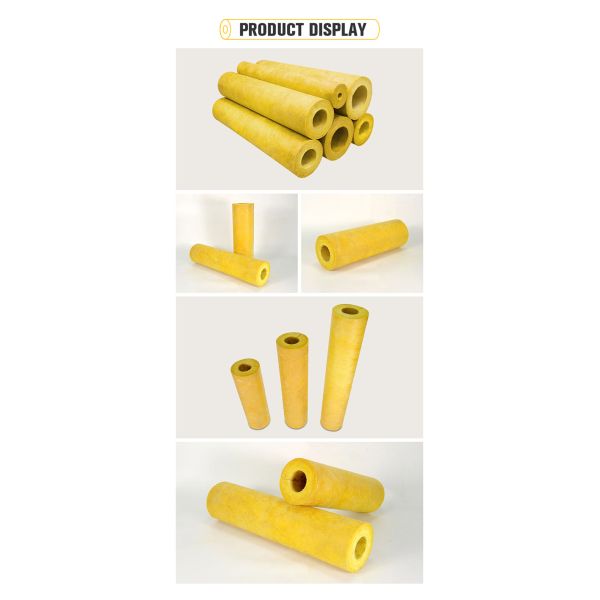

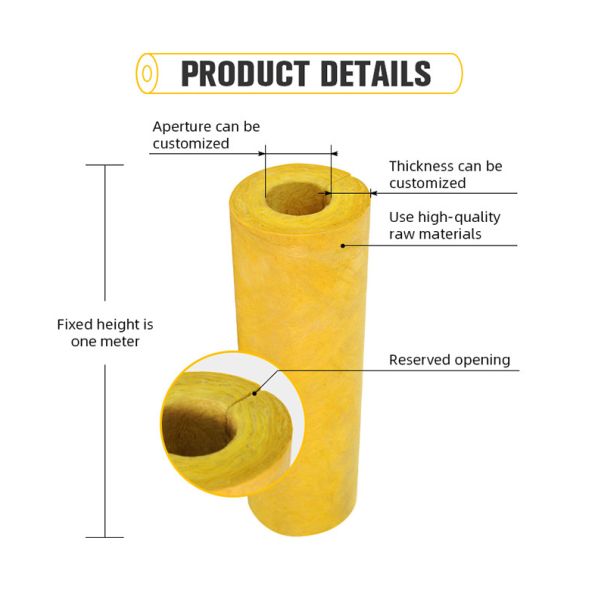

Leadsun Glass Wool Pipe is a widely used industrial and commercial insulation material, made from fine glass fibers bonded together. It is specifically manufactured in pre-formed cylindrical sections or slabs to fit snugly around pipes of various diameters.

Its primary function is to provide excellent thermal insulation, significantly reducing heat loss or gain in hot and cold piping systems, which improves energy efficiency. It also offers effective acoustic insulation and fire resistance, as glass wool is non-combustible and can withstand high temperatures, typically up to 450-550°C.

Key advantages include lightweight construction, easy installation due to its pre-formed shape, resistance to moisture and corrosion (especially when faced with foil or fabric), and cost-effectiveness. Common applications include insulating heating, ventilation, and air conditioning (HVAC) ducts, hot and cold water pipes, and industrial process pipelines in buildings, power plants, and refineries.



Description
Data
Unit
Standard
Thermal conductivity ID at average temperature
10℃
50℃
100℃
150℃
200℃
250℃
300℃
0.032
0.035
0.042
0.050
0.062
0.076
0.093
W/(m`k)
EN ISO 8497
40℃
0.034
W/(m`k)
EnEv
Reaction to fire
Not flammable
Not flammable
Not flammable
A1LM06q.3
-
-
-
EN13501
-1NF
VKF
Application temperature
-
300*
℃
EN ISO
8497
Top application temperature limit
-
500
℃
EN 14707
Specific heat capacity
Cp
0.84
KJ/(kg`k)
-
Special properties hydrophobic
Water absorption
≤ 1
kg/m2
EN 13472
AGI Q 132
Chloride ion content
Produced in AS quality
≤ 10
mg/kg
EN 13468
AGI Q 132
Impedance (length-related)
-
≥30
kPa`s/m2
EN 29053
Insulating material reference number
-
10.04.02.50.99
-
AGI Q 132


Unit
Specification
Average diameter of fiber
um
≤ 8
Weight
kg/m3
64-100
Thermal Conductivity
W/(m`k)
0.030-0.044
Inflammable property

Inflammable
Hydrophobic Coefficient
%
%
Service Temperature
℃
-120~400
Slag Ball
%
≤ 0.3
Organism
%
≤ 4
Water
%
≤ 1.0
Water Absorption Coefficient
%
≤ 1.5



Advantages:


1.Antisepsis, ageing resistance, and anticorrosion, ensuring a healthy environment. Low moisture absorption, stable physical properties.


2.Sound absorption and noise reduction, it can effectively prevent sound from spreading.


3Excellent Sound Absorption: Noise Reduction Coefficient (NRC): Up to 0.90, effectively dampens airborne and impact noise for quieter workspaces.


4.Unique technology, rebound degree after compressive packing is up to 99.2%.


Application:

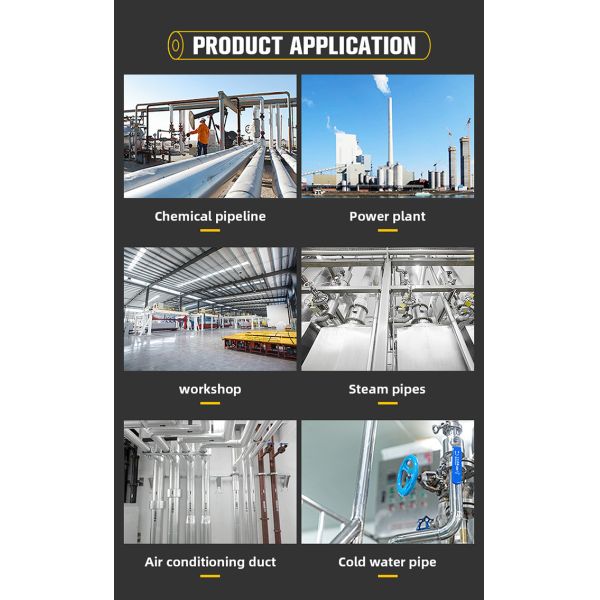

Glass wool pipe is widely used in HVAC systems, industrial pipelines, plumbing, and renewable energy installations
