Specifications
Brand Name :
SUNWOOL
Model Number :
Glasswool Board
Certification :
ISO CE
Place of Origin :
China
MOQ :
100 Pcs
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
100000 pcs/month
Delivery Time :
15 days
Packaging Details :
Plastic Bag
Density :
40-100 kg/m³
Length :
1200-2400 mm
Type :
board,pipe ,blanket
Refractoriness :
650C
Blanket Width :
1200mm
Color :
Light Yellow
Thickness :
20-100 mm
Description
Product Overview

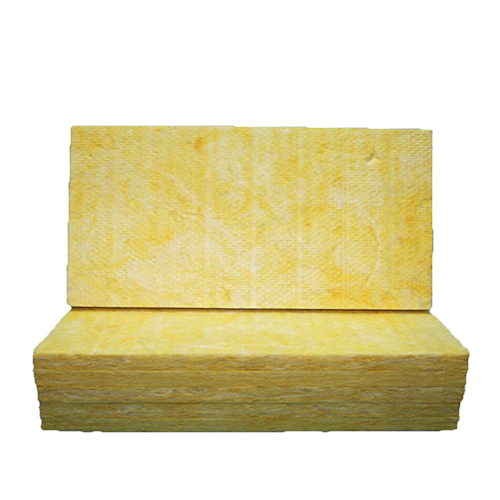

Leadsun Glass Wool Board is produced using state-of-the-art centrifugal technology and eco-friendly thermosetting resin binders. The board consists of ultra-fine glass fibers, just a few microns in diameter, forming a structure filled with countless micro air pockets. This design delivers outstanding thermal insulation, acoustic absorption, and fire resistance, making it an excellent choice for a wide variety of construction and industrial insulation applications.

Specifications
item unit index Standard
Density kg/m3 50-130 GB/T 11835-2016
Thickness mm 50-150 GB/T 11835-2016
Size mm 1200*600 GB/T 11835-2016
Thermal conductivity W/m.k ≤0.043 GB/T 11835-2016
Grade of combustibility
A1 GB 8624
Surface combustion characteristics
FSI=0,SDI=5 ASTM E84
Max service temperature ≥600 GB/T 11835
Shot content Kg/m² ≤0.5 GB/T 11835-2016
Moisture rate % ≤0.5 GB/T 11835-2016
Water content % ≥98 GB/T 11835-2016
Acidity coefficient
≥1.6 GB/T 11835-2016
Slag inclusion content % ≤7.0 GB/T 11835-2016
Average fiber diameter um ≤6.0 GB/T 11835-2016
Organic mater content % ≤4.0 GB/T 11835
Key Features
  • Efficient thermal insulation – Thermal conductivity as low as ≤0.043 W/m·K ensures excellent heat retention and energy savings
  • Superior acoustic performance – Effectively absorbs sound and reduces noise transmission in buildings and equipment
  • High fire safety – Class A1 non-combustible material with FSI=0 and SDI=5
  • Moisture resistance – Hydrophobic treatment available on request to prevent water absorption
  • Lightweight and workable – Easy to handle, cut, and install across various applications
  • Eco-friendly composition – Contains recycled glass and no harmful substances
  • Dimensional stability – Low shrinkage (<2%) ensures reliable long-term performance
  • Wide temperature capability – Suitable for continuous operation up to 600°C

Glass Wool Insulation Board 50–130 kg/m³ for Thermal, Acoustic  Fire Safety in Construction

Glass Wool Insulation Board 50–130 kg/m³ for Thermal, Acoustic  Fire Safety in Construction

Glass Wool Insulation Board 50–130 kg/m³ for Thermal, Acoustic  Fire Safety in Construction

Glass Wool Insulation Board 50–130 kg/m³ for Thermal, Acoustic  Fire Safety in Construction

Available Specifications
  • Density options: 50, 64, 80, 96, 120, 130 kg/m³ (customizable)
  • Thickness options: 50 mm, 75 mm, 100 mm, 150 mm (others available)
  • Standard size: 1200 mm × 600 mm (custom sizes and rolls available)
  • Facing options: Plain, foil-faced, glass cloth, or other facings upon request
Applications
  • Building insulation – Exterior walls, interior partitions, roofs, ceilings, floors
  • HVAC systems – Ductwork, air handling units, ventilation systems
  • Industrial equipment – Boilers, furnaces, pipelines, thermal equipment
  • Acoustic control – Sound absorption in studios, theaters, offices, industrial noise reduction
  • Fire protection – Fire barriers, fire-rated walls, structural fireproofing
  • Commercial and residential buildings – Hotels, hospitals, schools, shopping malls, residential projects
