Ultra-thin Aerogel Blanket for Building Thermal Insulation
Ultra-thin Aerogel Blanket for Building Thermal Insulation
Ultra-thin Aerogel Blanket for Building Thermal Insulation
Ultra-thin Aerogel Blanket for Building Thermal Insulation
Ultra-thin Aerogel Blanket for Building Thermal Insulation
Ultra-thin Aerogel Blanket for Building Thermal Insulation
Ultra-thin Aerogel Blanket for Building Thermal Insulation
Ultra-thin Aerogel Blanket for Building Thermal Insulation
Ultra-thin Aerogel Blanket for Building Thermal Insulation
Ultra-thin Aerogel Blanket for Building Thermal Insulation
Specifications
Maximum operating temperature, °C :
650°C
MOQ :
100 m2
Delivery Time :
5-8 day
Payment Terms :
L/C,D/P,T/T,Western Union
Package :
Carton box or plastic bag
Model Number :
3-20MM THICKNESS
Color :
White or Red
Price :
Negotiable
Hydrophobicity :
99%
Certification :
ISO CE
Type :
Roll
Place of Origin :
CHINA
Supply Ability :
100000 m2/month
Size :
customizable
Brand Name :
LEADSUN
Packaging Details :
Carton Box Or Plastic Bag
Description
Ultra-thin Aerogel Blanket for Building Thermal Insulation
Product Overview

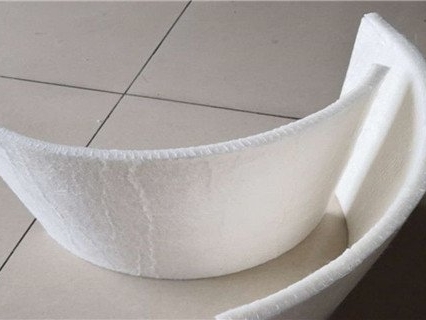

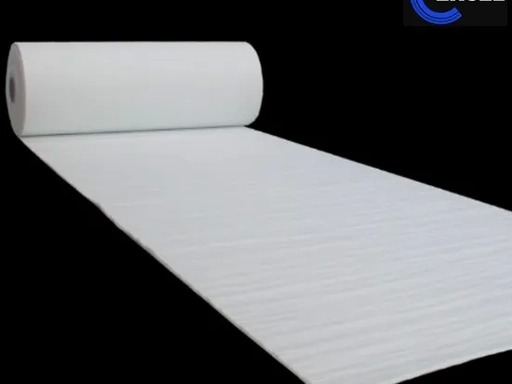

Aerogel felt is a flexible thermal insulation material featuring aerogel as its core component, typically reinforced with a substrate of glass fiber or pre-oxidized fiber felt.

The core benefits of aerogel blankets for buildings can be summarized as follows: they achieve high-efficiency thermal insulation with minimal thickness while offering fire resistance, moisture protection, and long-term durability, making them a key material for resolving the conflict between building energy efficiency and spatial constraints.Ultra-thin Aerogel Blanket for Building Thermal Insulation

Technical Specifications
Technical Parameter Typical Index Range Description
Thermal Conductivity (25℃) ≤0.020 W/(m*K), some products reach 0.012-0.018 W/(m*K) The lower the value, the better thermal insulation performance and thinner required thickness.
Bulk Density 180-220 kg/m³ Much lighter than traditional thermal insulation materials, beneficial for building lightweight design.
Continuous Service Temperature Conventional type: -50℃ ~ 200℃
High-temperature resistant type: -50℃ ~ 600℃ and above		 Multiple grades available, suitable for building exterior wall, roof, flue and pipe insulation.
Fire Performance Class A Non-combustible; high-grade products comply with EN 45545-2 HL3 HL3 is the highest hazard level. Smoke density, toxicity and heat release all meet requirements.

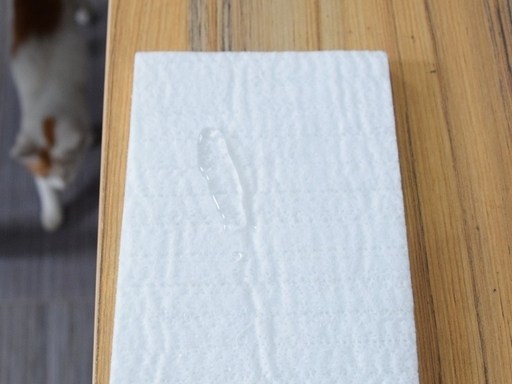

Water Repellency ≥98% Integrally hydrophobic. No collapse when exposed to water, stable long-term insulation performance.
Thickness Common size: 3 / 5 / 6 / 10 mm Custom thickness available, far thinner than conventional building insulation materials.
Width Standard: 1500 mm Easy to cut, adapts to curved and complex building surfaces.
Tensile Strength ≥0.12 MPa Good flexibility, resistant to cracking during construction and slight building deformation.
Water Vapor Permeability Vapor permeable Allows moisture escape from wall substrate, reduces risks of wall mildew and hollowing.
Applications & Benefits
  • Aerogel blanket is an ultra-thin thermal insulation material for new construction and building energy-saving renovation. It saves building space while meeting energy conservation standards.

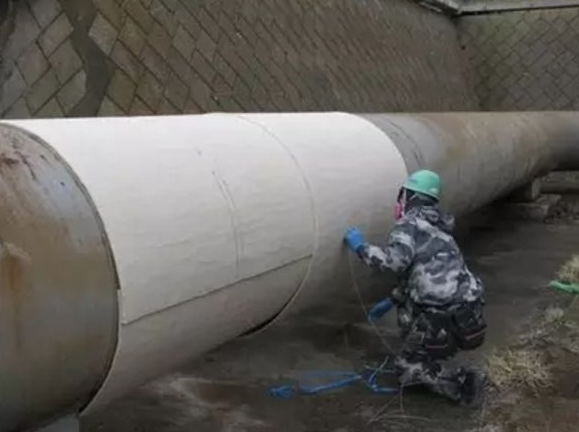

  • Applicable for exterior walls, roofs, basements, building flues, fire shafts, and equipment pipe insulation.
