Smart Insulating Glass Machine Vertical Four Axis Low E Glass Edge Deleting Machine
Smart Insulating Glass Machine Vertical Four Axis Low E Glass Edge Deleting Machine
Specifications
Brand Name :
Jinan LIJIANG Glass
Model Number :
LJCM2545
Certification :
CE & ISO9000
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
Negotiable Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets per month
Delivery Time :
5-8 working days
Packaging Details :
Wooden Cases Package and Container Transfer
Name :
Vertical edge deleting machine
Max.glass processing size :
2500*4500mm
Min.glass processing size :
350*500mm
Glass thickness :
3-15mm
Edge deleting width :
10-150mm
Glass conveyor speed :
2-29m/min
Abrasive wheel width :
10/12/15mm
Air supply :
Flow 0.2m3/min
Description
Fully Automatic Smart Vertical Four-axis Low-E Glass Edge Deleting Machine Can Remove the Film the Four Sides on the Same Table
Product Description
LJCM2545 Automatic ertical Edge Deleting Machine

Jinan LIJIANG Glass Automatic Vertical edge erasing machine LJCM2545 is particular for LOW-E glass film remover. It embraces vertical design and creation line for simple association. The Low-E Glass edge erasing machine is straightforward and productive. It takes on imported servo control framework for transmission, exact situating and stable activity. Low-e glass film remover is particular for LOW-E glass film remover. It embraces vertical design and creation line for simple association

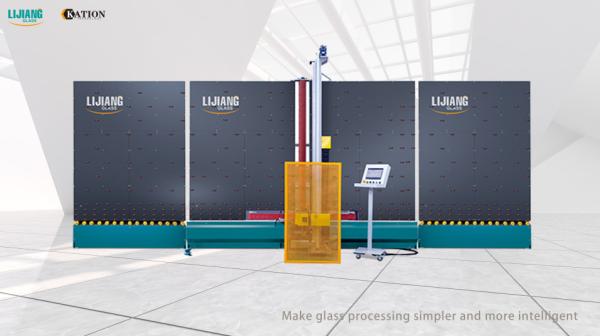

Product picture display
Benefits & Advantage
1) The automatic machine is equipped with a full servo convey system and Germany Simons control system.
2) It is capable of removing the scalene film with one operation. The deleting width for overlapped area is also adjustable
3) Manual operations are available for each function, useful in debugging and maintenance.
4) It is equipped with a dust suction device to mitigate dust pollution.
5) The input part and output part can be run asynchronously, improving productivity.
6) The stripping speed is adjustable (according to different film types and expected stripping effect).
7) Six servo motor control system and an adjustable linear dimension are supplied to guarantee a higher accuracy for arc / shapes.
8) The vertical low-e edge deletion machine can handle specially shaped glass panels, including the glass panels with holes for point-supported glass curtain wall system.
9) The stripping width tolerance is smaller than 1mm,the stripping efficiency is >90% (for reference).
Specification
Item.
Spec.
Max. glass processing size
2500*4500mm
Min. glass processing size
400*280mm
Glass thickness
3-15mm
Diameter of grinding wheel
200mm
Conveyor height
500mm
Edge deleting width
10-50mm
Edge deleting speed
2-29m/min
Abrasive wheel width
10/12/15mm
Glass thickness
3 - 15mm
Grinding wheel speed
0~3000r/min
Total air consumption
100L/ min
Air pressure
≥0.8MPa
Total power
3P 380V 50Hz 3.35KW
NAME
ORIGIN
BRAND
Servo motor
Taiwan
TAIDA
PLC
Taiwan
TAIDA
Pneumatic component
Taiwan
AAIRTAC
Low pressure electricity
Germany
SIEMENS
Circuit breaker
Germany
SIEMENS
Sensor switch
Korea
AUTONICS
Approach switch
Korea
AUTONICS
Limit switch
Taiwan
TEND
Connector
Germany
SIEMENS
Frequency converter
France
SCHNEIDER
Main Button
France
SCHNEIDER
Intermediate relay
Japan
OMRON
