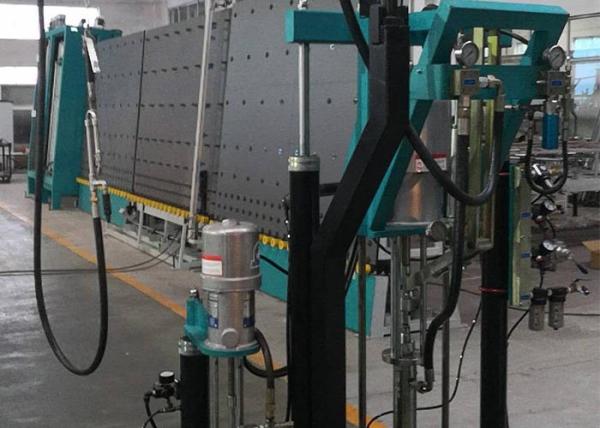

Stainless Steel Sealant Extruder Two Pump 4 L / Min For Double Glazing
Stainless Steel Sealant Extruder Two Pump 4 L / Min For Double Glazing
Specifications
Brand Name :
LIJIANG GLASS
Model Number :
LJST02A
Certification :
CE
Place of Origin :
JINAN,CHINA
MOQ :
One set
Price :
Negotiable
Supply Ability :
30 sets per week
Delivery Time :
10days
Packaging Details :
Wooden box
Name :
Two pump sealant sealing machine
Application :
Sealing double glass
Sealant spreading pressure :
15-20MPa
Sealant volume :
4L/min
Diameter of A/B sealant :
570mm/280mm
Mixed rate :
6:1-14:1
Description

Stainless Steel Sealant Extruder Two Pump 4 L / Min For Double Glazing

Manual two pump sealant spreading machine can use Silicone glue and Polysulfide glue.

Technical data

Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm

Main feature

  • Best seals and mixers.
  • Imported motor system to improve equipment efficiency
  • Imported sealant gun,stainless steel mixer
  • High pressure protect device
  • Anti-back flow control structure
  • Mixed rate detector can control the rate of two kinds of glue
  • Using sealing robot

Stainless Steel Sealant Extruder Two Pump 4 L / Min For Double Glazing
