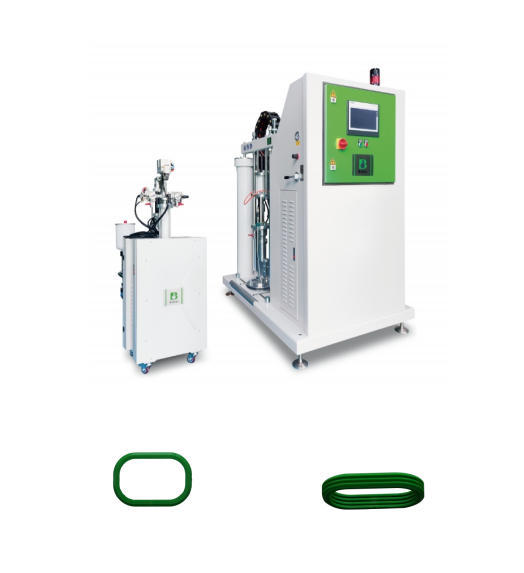

Pressure Sensor Silicone Seal Ring Molding Machine Chip-Level Seal Ring
Pressure Sensor Silicone Seal Ring Molding Machine Chip-Level Seal Ring
Pressure Sensor Silicone Seal Ring Molding Machine Chip-Level Seal Ring
Pressure Sensor Silicone Seal Ring Molding Machine Chip-Level Seal Ring
Specifications
Volume Ratio % :
1:1
Key Selling Points :
Energy Saving
Core Components :
Motor, Pump, PLC, Pressure vessel
Brand Name :
Better
Model Number :
Better 615
Certification :
CE、ISO
Place of Origin :
GuangZhou，China
MOQ :
1 SET
Price :
USD22000-USD45000per set
Payment Terms :
T/T
Supply Ability :
25 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden case
Description
Pressure Sensor Silicone Seal Ring Molding Machine Chip-Level Seal Ring
High-Precision LSR Dosing System
Advanced liquid silicone rubber dosing system engineered for precision manufacturing of pressure sensor silicone seal rings at chip-level specifications.
  • All components processed with imported equipment using original packaging to ensure manufacturing accuracy
  • Core parts imported from Europe and America for enhanced stability and extended service life
  • Convenient maintenance design with easily disassembled displacement pump device
  • Long-life service sealing elements for reliable operation
  • Function guarantee with external valve system
  • Detachable mixer for flexible configuration
  • Material shortage and over-pressure alarm safety devices
  • Reproducible color adjustment capabilities
  • Optimized coating through special material barrel supporting disk
  • Material barrel emptying alarm system
  • Customizable options for specific application requirements
  • Compliance with international and European standards
  • Flexible material handling with 200-liter to 20-liter barrel conversion
  • Hard metal ball valve and high-speed steel piston rod for handling various viscosity materials
  • Coolable mixing section for temperature control
  • Colorant addition and metering device
  • Continuous feeding pump operation with material assistance
  • Pressure gauge display for mixed materials monitoring
The system precisely meters two components in desired ratios through a specialized delivery system to the injection unit. Designed to integrate seamlessly with existing LSR delivery equipment or as part of a complete turn-key LSR solution.
Technical Specifications
Characteristics Solid silicone to LSR
Item No Better 615
Shot Volume 0 - 1500g
Material Capacity 20L / 200L
Ratio 1:1
Motor Source Hydraulic Servo
Dimensions 1920 x 1030 x 1800 mm
Weight 1200 KG
Mix Mode Static + Dynamic
Work Style Plunger Pump
Application Universal Compatibility
Advanced Technology Features
  • Premium design with high cost-performance, compatible with both 20L and 200L drums
  • PLC control panel for high efficiency and user convenience with stable system operation
  • High-precision material measurement with synchronous structural design for balanced pressure output
  • Pressure sensor configuration with ultra-pressure and material alarm systems
  • Position transducer monitoring with A and B pressure regulating valves for precise 1:1 ratio output
  • Full hydraulic system with international brand components ensuring stability and reliability
  • Effective prevention of leakage and contamination
  • Pneumatic control valve and color pump installation on host for easy disassembly and positioning
  • Interchangeable compatibility with various machines to reduce color replacement frequency and waste
  • Easy cleaning, energy efficiency, high performance, and low noise operation
  • Suitable for transition applications of various dual-component liquid silicone
  • High production efficiency when integrated with LSR injection molding machines
  • Compatible with injection machinery from multiple brands
Pressure Sensor Silicone Seal Ring Molding Machine Chip-Level Seal Ring
