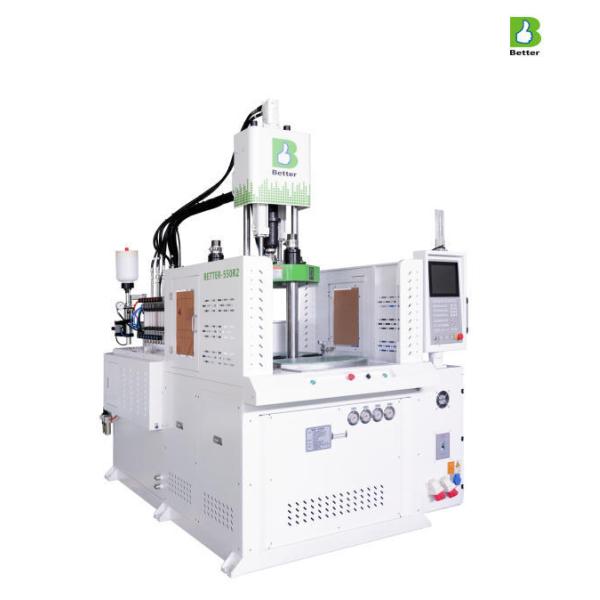

Vertical Rotary LSR Injection Molding Machine with 30% Efficiency Boost, 85 Tons Clamping Force, and Servo Motor
Vertical Rotary LSR Injection Molding Machine with 30% Efficiency Boost, 85 Tons Clamping Force, and Servo Motor
Vertical Rotary LSR Injection Molding Machine with 30% Efficiency Boost, 85 Tons Clamping Force, and Servo Motor
Vertical Rotary LSR Injection Molding Machine with 30% Efficiency Boost, 85 Tons Clamping Force, and Servo Motor
Specifications
Clamping Way :
Hydraulic
Payment Terms :
T/T,L/C
Supply Ability :
15 sets per month
Place of Origin :
China
MOQ :
1 SET
Economic Benefits :
Obvious--30-50% electricity can be saved
Use Material :
liquid silicone rubber
Brand Name :
Better
Model Number :
Better 850R2
Delivery Time :
50 days
Packaging Details :
Plastic film
Certification :
CE、ISO
Price :
USD41999-USD81999per set
Motor :
Servo Motor
Description
Boost Your LSR Production Efficiency by 30% with Advanced Injection Technology
Technical Specifications
BETTER Vertical Rotary LSR injection molding machine
Clamping force85 tons
SizeΦ1180
Max mold size430*430(600*350)mm
Min mold height210+50mm
Mold stroke250mm
Max daylight460+50mm
Ejector force3 tons
Thimble diameterΦ25
Ejector distance (product)105(75)mm
Max hydraulic pressure140kg/cm²
Cooling water1500-1800 liters/hr
Electrothermal4kw
Motor13kw
Dimension (L*W*H)2.84*2.13*2.86/3.67
Weight5.5 tons
Professional Service from BETTER
Pre-Sale Service:
  • Provide investment budget and plant planning
  • Provide complete solutions for machines and molds based on customer product requirements
On-Sales Service:
  • Provide installation and new machine debugging services
  • Free training for your staff to operate and maintain machines independently
After-Sales Service:
  • Timely dispatch of personnel to solve after-sales problems and technical challenges
  • Priority product upgrading services for previous users as required
What is LSR Injection Molding?
An LSR injection molding machine is specialized equipment used to produce parts from liquid silicone rubber (LSR) through liquid injection molding (LIM). These machines handle the unique properties of LSR, a thermoset material requiring specific processing conditions for proper curing.
Key Features and Process:
  • Dedicated LSR Injection Unit: Designed to handle the low viscosity of liquid silicone rubber
  • Meter Mixing System: Precisely mixes two-part LSR components (A and B) in specific ratios
  • Static Mixer: Combines components to initiate the curing process
  • Heated Mold: Triggers chemical reaction that cures material into solid, flexible components
  • Precise Temperature Control: Crucial for proper curing throughout the process
  • Fast Cycle Times: LSR cures from outside in, enabling faster demolding
Advantages of LSR Injection Molding:
  • Complex Geometries: Low viscosity fills intricate mold designs and thin-walled sections
  • Lower Injection Pressures: Reduces stress on mold and machine compared to thermoplastics
  • High Precision and Repeatability: Suitable for parts with tight tolerances
  • Wide Temperature Range: Parts withstand various temperature conditions
  • Excellent Material Properties: Good elongation, high tear/tensile strength, flexibility, and electrical insulation
Common Applications:
LSR injection molding serves multiple industries including:
  • Medical: Seals, gaskets, catheters, breathing masks
  • Automotive: Seals, gaskets, and various components
  • Electronics: Keypads, connectors, insulators
  • Consumer Goods: Baby bottle nipples, kitchen utensils, household products
In summary: LSR injection molding machines are specialized systems that leverage liquid silicone rubber's unique properties to produce high-precision, durable parts for diverse applications.
