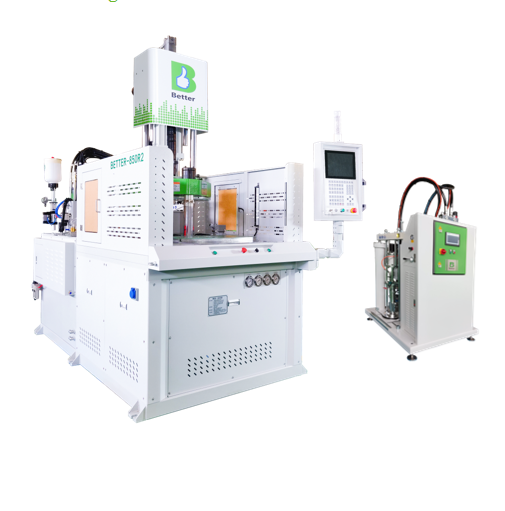

Vertical LSR Injection Molding Machine for Heat-Resistant Silicone Scrapers with High Efficiency and Precision Control
Vertical LSR Injection Molding Machine for Heat-Resistant Silicone Scrapers with High Efficiency and Precision Control
Vertical LSR Injection Molding Machine for Heat-Resistant Silicone Scrapers with High Efficiency and Precision Control
Vertical LSR Injection Molding Machine for Heat-Resistant Silicone Scrapers with High Efficiency and Precision Control
Specifications
Model Number :
Better 1200R2
Style :
VERTICAL
MOQ :
1 SET
Delivery Time :
50 days
Port :
Guangzhou
Payment Terms :
T/T
After Sales Service :
Provided
Certification :
CE、ISO
Use Material :
liquid silicone rubber
Brand Name :
Better
Color :
Gray & Green
Price :
USD42000-USD82000per set
Condition :
New
Supply Ability :
10 sets per month
Warranty :
1 year
Place of Origin :
Guangzhou, China
Advantages :
High Efficiency
Packaging Details :
Plastic film
Description
Silicone Scraper Liquid Silicone Rubber Injection Molding Machine Heat Resistant

The Better 1200R2 Vertical LSR Injection Molding Machine is purpose-built to master the demanding production of heat-resistant silicone scrapers. Producing a perfect scraper is a study in contradiction: the blade must be whisper-thin (0.8-1.2mm) and supremely flexible to hug the curvature of a mixing bowl, yet the handle must be solid, ergonomic, and comfortable to grip during prolonged whisking or folding. Our machine resolves this geometrical paradox through advanced process control and specialized screw design.

Technical Specifications
Item NoBetter 1200R2
Clamping force1200 tons
Diameter of rotaryΦ1360
Max mold size500*500(700*400)mm
Mini mold height260+50mm
Ejector space (from product)105(75)mm
Max hydraulic pressure pump output140 kg/cm²
Water volume1500~1800 liters/hr
Motor15 kw
Dimensions (length*width*height)3040*2340*3120/3950 cm
Total Weight7.2 tons
Flash-Free Edges: Non-Negotiable for Food Safety

The scraper blade's cutting edge is its primary selling point. If it has any flash (burrs) or waviness, it won't scrape cleanly, and those micro-burrs can break off into food. Our vertical clamping unit is constructed with ultra-rigid, pre-stressed tie-bars. This ensures the mold halves close with absolute precision, eliminating any escape path for the highly fluid LSR. The result is a razor-sharp, perfectly straight blade edge that requires zero secondary trimming - saving labor costs and eliminating the risk of accidental blade damage during post-processing.

Applications
  • Standard & Mini Silicone Spatulas/Scrapers (heat-resistant up to 260°C)
  • Offset Spatulas & Icing Smoothers (for cake decorating)
  • Flexible Bowl Scrapers & Dough Cutters
  • Spoonulas (spatula + spoon combination tools)
  • Cooking Utensil Sets (spatulas, tongs, ladles with silicone heads)
  • Pastry Brushes (silicone bristle scrapers)
Professional Service from BETTER
Pre-sales serviceInvestment planning, plant layout, and complete machine/mold solutions
On-sales serviceInstallation, debugging, and operator training
After-sales serviceTechnical support, problem resolution, and upgrade prioritization
Key Features of Our Injection Sets
  • Mould clamping device: Finite element analysis casting ensures strength. Hinged lugs on movable and tail plates increase rigidity.
  • Injection device: High precision dosing machine with precise operation, intelligent control, and high stability.
  • Full digital CAN control mode: Accurate system pressure and flow control with easy operation and maintenance.
  • Manifold: YUKEN solenoid valve for reliable sealing, stable operation, and long service life.
  • Main die cylinder: Forged steel parts for stability.
  • Adjustable ejector: Flexible operation for different mold characteristics.
  • High-quality PLC system: Reliable distribution box.
  • Humanized computer operation display: Easy operation with reduced waiting time.
