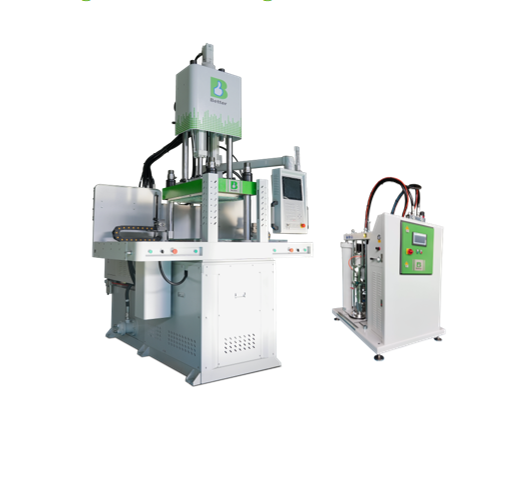

Food Grade Vertical LSR Injection Molding Machine for Silicone Baking Mat
Food Grade Vertical LSR Injection Molding Machine for Silicone Baking Mat
Food Grade Vertical LSR Injection Molding Machine for Silicone Baking Mat
Food Grade Vertical LSR Injection Molding Machine for Silicone Baking Mat
Specifications
Model Number :
Better 1200SD
Payment Terms :
T/T
Certification :
CE、ISO
Brand Name :
Better
MOQ :
1 SET
Delivery Time :
30 days
Price :
USD42000-USD82000 per set
Supply Ability :
20 Sets per Month
Place of Origin :
Guangzhou, China
Packaging Details :
Plastic film
Description
Food Grade Vertical LSR Injection Molding Machine for Silicone Baking Mat

Silicone baking mats are produced from food-grade, platinum-cured liquid silicone rubber. The finished mat must withstand repeated use at temperatures between -40°C and +230°C, remain dimensionally stable after multiple dishwasher cycles, and exhibit no surface transfer of cyclic siloxanes or other volatile compounds when in contact with fatty food simulants.

Technical Specifications
Item No Better 1200SD
Clamping force 120 tons
Max mold size 550*550mm
Mini mold height 260+50mm
Ejector space (from product) 105(75)mm
Max hydraulic pressure pump output 140 kg/cm²
Water volume 1500~1800liters/hr
Motor 15 kw
Dimensions (length*width*height) 2270*2350*3120/3950 cm
Total Weight 6 tons
What Is Silicone Rubber?

Silicone rubber is a high-performance synthetic elastomer composed of silicone and other molecules (e.g., carbon, hydrogen, and oxygen). It is characterized by high viscosity and elasticity, as well as superior abrasion resistance, chemical stability, insulating properties, temperature resistance, and weatherability compared to organic rubber.

Key Properties
  • Operating temperature range: -100°C to 350°C (depending on exposure duration)
  • Weatherability: Resistant to wind, rain, UV radiation, and ozone
  • Moisture resistance: 1% water absorption in various water temperatures
  • Steam resistance: Indefinite resistance to unpressurized steam
  • Chemical resistance: Resistant to oils, solvents, polar organic compounds, and diluted acids/alkalis
  • Electrical insulation: 1TΩ*m-100TΩ*m across wide temperature and frequency ranges
Types of Silicone Rubber

Silicone rubber varies by viscosity and processing method:

  • Solid Silicone Rubber (HTV): Long polymer chains processed by conventional methods
  • Liquid Silicone Rubber (LSR): Short polymer chains requiring specialized injection molding
  • Room Temperature Vulcanized (RTV) Rubber: Used for sealing, encapsulation, and potting applications
Applications of Silicone Rubber

Silicone rubber is used across multiple industries including:

  • Aerospace (space suit components)
  • Automotive (gaskets and seals)
  • Medical (instrument components)
  • Food processing (molds)
  • Electronics (adhesives and encapsulants)
Liquid Silicone Rubber vs. Solid Silicone Rubber

Key differences between LSR and solid silicone rubber:

  • LSR: High fluidity, transparent, food/skin safe, requires specialized equipment
  • Solid Silicone: Lower cost, processes with conventional equipment
