Vertical LSR Injection Molding Machine with 85tons Clamping Force and Vertical Double Slides Table Featuring High-Performance Servo Motor System
Vertical LSR Injection Molding Machine with 85tons Clamping Force and Vertical Double Slides Table Featuring High-Performance Servo Motor System
Vertical LSR Injection Molding Machine with 85tons Clamping Force and Vertical Double Slides Table Featuring High-Performance Servo Motor System
Vertical LSR Injection Molding Machine with 85tons Clamping Force and Vertical Double Slides Table Featuring High-Performance Servo Motor System
Specifications
Key Selling Points :
Competitive Price
Brand Name :
Better
Model Number :
Better-850SD
Certification :
CE、ISO
Place of Origin :
GuangZhou，China
MOQ :
1 SET
Price :
USD38,000~USD82000
Payment Terms :
T/T,D/P,D/A,L/C
Supply Ability :
25 sets per month
Delivery Time :
45 days
Packaging Details :
Plastic packaging
Warranty :
1 year
Core Components :
Motor, Pump, PLC, Pressure vessel
Style :
Vertical
Description

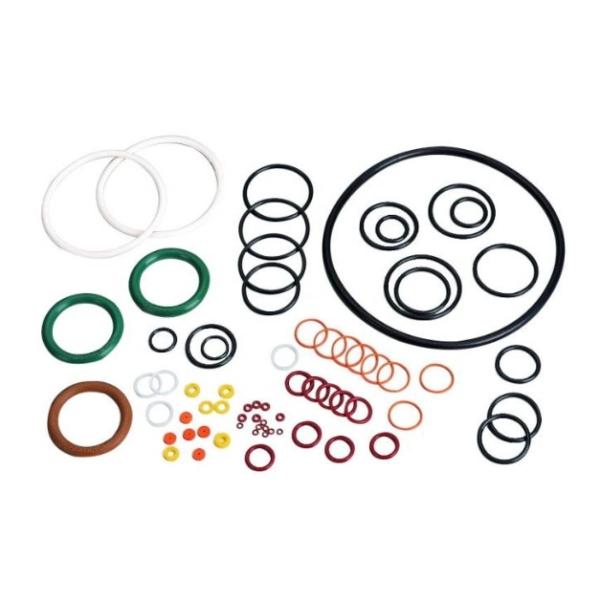

Professional Manufacturer Of High-Precision Vertical Liquid Silicone Rubber Machine O-Rings For Vertical LSR Machine
Product Overview

Liquid Vertical Injection Molding Machine With Double Sliding Board. BETTER LSR Injection Molding Machine made with CE and ISO Production Controller, Vertical Double Slides Table LSR Injection Molding Machine is widely used in medical silicone products, electron silicone seal, and related applications.

Vertical Liquid Silicone Rubber (LSR) Injection Molding Machine features direct pressure mould opening and closing system with horizontal injection structure, enabling faster mold adjustment and more precise position control. This design is particularly suitable for producing LSR parts that can be automatically removed from the mould.

Key Features
  • Advanced sliding rail structure reduces oil pollution and ensures faster, steadier operation
  • Active pin valve-pattern nozzle sealing system guarantees precise injection
  • Designed to meet requirements for multi-station production
  • High-performance servo motor system ensures accurate operation and energy efficiency
Technical Specifications
Model BETTER Vertical LSR injection molding machine
Clamping Force 85 tons
Size 1135 × 495 mm
Max Mold Size 500 × 475 mm
Min Mold Height 210 + 50 mm
Mold Stroke 250 mm
Max Daylight 460 + 50 mm
Ejector Force 3 tons
Thimble Diameter Φ25
Ejector Distance (Product) 105 (75) mm
Max Hydraulic Pressure 140 kg/cm²
Cooling Water 1500-1800 liters/hr
Heater Power 4 kW
Motor Power 13 kW
Dimension (L×W×H) 2.17 × 2.23 × 2.83 m
Weight 4.5 tons
Industry Applications
Medical and Healthcare
Liquid silicone injection molding is ideal for medical purposes due to excellent biocompatibility, safety for prolonged skin contact, and sterilization capabilities. Applications include fluid management systems, biotechnology components, seals, catheters, respiratory masks, lenses, and electronic medical device covers.
Automotive Industry
Extreme temperature resistance makes LSR suitable for engine components and heat sources. Typical applications include seals, connectors, electronic covers, A/C vent cushions, and windshield wiper blades that resist degradation from sunlight exposure.
Industrial Sector
Ideal for seals, gaskets, strain relief devices, and grommets requiring excellent UV, chemical, and temperature resistance for long-lasting performance in demanding industrial environments.
Electronics
Exceptional electrical insulation properties make LSR perfect for keypads, connectors, water-tight gaskets, buttons, switch pads, and other electronic components requiring reliable performance.
Consumer Products
Used in kitchenware, wristwatches, wearable technology, toys, pacifiers, infant bottles, and personal care items due to durability, flexibility, and ease of cleaning properties.
