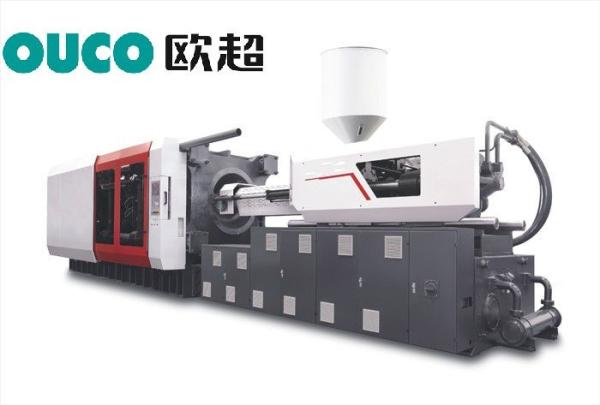

OUCO 1000T PET PVC Servo Injection Moulding Machine SGS
OUCO 1000T PET PVC Servo Injection Moulding Machine SGS
Specifications
Brand Name :
OUCO
Model Number :
OUCO-1000T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
OUCO 1000T PET/PVC High-end Servo Injection Moulding Machines
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

OUCO 1000T PET/PVC High-end Servo Injection Moulding Machines

The OUCO 1000T is a very economical model
Our out flip crankshaft provides longer opening strokes with the same clamping force.
We can make a fruit basket in 16 seconds, this can save you a lot of time.
100% clamping force can reduce the product's spillover, this can save 2%-5% material.

Product Advantages
Hydraulic systems supplied by well-known brands
Specialized oil circuit design and manufacturing
Provide open die ejector synchronization function
Excellence clamping structure
100% clamping force use
Fast ,more 10% output
Save 2-5% material

Power saving over 30% avoidable plasticization does not occur due to inaccurate temperature control during the production of free products good phenomenon. Efficiency and reliability, energy saving and precise control.

Efficiency And Reliability
The support of the shooting table adopts high-precision blanket rail, with low friction coefficient, injection and low and uni-form plasticizing resistance, faster injection speed, suitable for high-speed precision injection forming.
Precision Control
KEBA advanced control interface High-speed microprocessor ergonomic layout
Data and image monitoring, self-diagnosis and fault detection capabilities
Multi-level ejection, smooth and fast ejection action, easy installation of jack, push out the whole guide, can realize pulse ejection.
Nano Far Infrared Heating Ring, adopt closed-loop PID to control, accurate control. High repeat accuracy. Good thermal insulation performance.

Parameters

Model 1000T
Screw Specifications A B C
Screwdi ameter mm 100 100 120
Screw L/Dratio 22 22 22
Theoretical injection volume cm3 4329 4329 6104
Shot weight (PS) g 3900 3900 5616
injection rate(Ps) g/S 920 920 1325
Injection pressure MPa 204 204 142
Inject on stroke mm 540
Max. injection speed mm/s 137
Screw speed r/min 0-180
Sys. Pressure MPa 16
Pump Motor(Min-Max) kW 151
Displacement ml/r 160+125+125
number of Motors PC 3
Heater power kW 61
Number oftemp. control zones
Clamping force kN 10000
Opening stroke mm 1700
Tie bar distance W×L mm*mm 1210x1060
Min. mold thickness mm 500
Max. mold thickness mm 1200
Ejector stroke mm 300
Ejector force forward kN 196
Number of ejector bar PC 1+16
Oil tank capacity L 1300
Machine dimensions(LxWxH) m*m*m 10.7x2.4x2.8
Machine weight Ton 44

Detail Pictures
OUCO 1000T PET PVC Servo Injection Moulding Machine SGS

OUCO 1000T PET PVC Servo Injection Moulding Machine SGS

Company Profile

OUCO 1000T PET PVC Servo Injection Moulding Machine SGS

OUCO 1000T PET PVC Servo Injection Moulding Machine SGS

OUCO 1000T PET PVC Servo Injection Moulding Machine SGS
