OUCO HS 530T Screw Barrel Injection Molding Machine Large Mold Opening Stroke
OUCO HS 530T Screw Barrel Injection Molding Machine Large Mold Opening Stroke
Specifications
Brand Name :
OUCO
Model Number :
OUCO-HS-530T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
OUCO-HS 530T High Power High Speed Injection Molding Machine With Large Mold Opening Stroke
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

OUCO-HS 530T High Power High Speed Injection Molding Machine With Large Mold Opening Stroke

OUCO designed the Outflip crankshaft for the HS-530T, This allows us to have a lot more opening stroke compared to the normal design, so customers can choose a model with less clamping force, which can save them a lot of money. The four cylinders on our crankshaft can move in a straight line with good synchronization, which reduces power consumption.

Product Advantages

Straight pressed outward curved center clamping makes the template mold not deformed and transmits 100% clamping force of the mold.

Extra large module capacity design.

Cooperation with well-known hydraulic system manufacturers, high flow, low noise, stable performance.

Full module lubrication system, automatic lubrication, easy to operate and extend the life of the injection molding machine

Parameters

MODEL HS-530T
CLAMPING UNIT clamping force (kN) 5300
Tie bar distance W×L (mm) 860*760
Max.Daylight(mm) 1000
Max. mold thickness (mm) 800
Min. mold thickness(mm) 300
Platen Dimensions W×L (mm) 860*760
Ejector Stroke(mm) 210
Ejector Force(Kn) 110
Ejector Quantily 1+12
Injection Unit Screw Diameter(mm) 100
Screw L/D ratio 22
Theoretical injection volume (cm3) 3332
Shot Weight (PS) g 3057
Injection Pressure(MPa) 113
Injection Speed (g/s) 3057
Injection Rate (cm3/s) 1247
Screw Speed (rpm) 0-200
Other Motor Power (Kw) 95
pump capacity(ml/r) 125+125
Heater Power (Kw) 41
Machine Weight (Ton) 19
Machine size L×W×H (m*m*m) 8.7*2.0*2.1

Detail Pictures

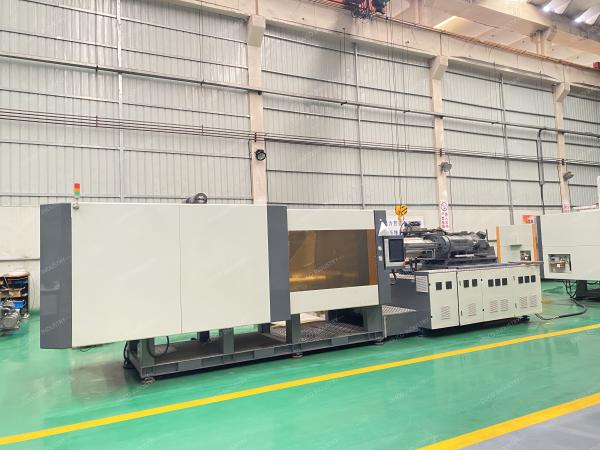

OUCO HS 530T Screw Barrel Injection Molding Machine Large Mold Opening Stroke

Company Profile

OUCO HS 530T Screw Barrel Injection Molding Machine Large Mold Opening Stroke

OUCO HS 530T Screw Barrel Injection Molding Machine Large Mold Opening Stroke

OUCO HS 530T Screw Barrel Injection Molding Machine Large Mold Opening Stroke
