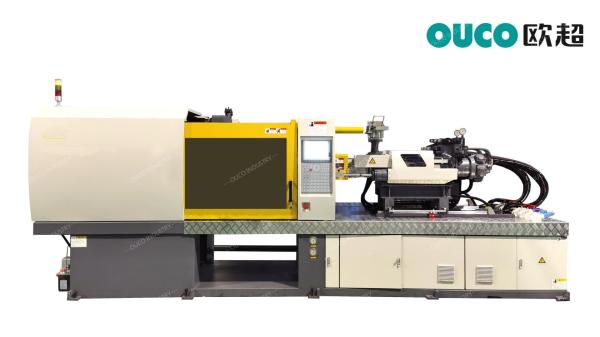

Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine
Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine
Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine
Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine
Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine
Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine
Specifications
Brand Name :
OUCO
Model Number :
OUCO-CWI-220GF
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
Durable And High Precision GF Series Injection Molding Machine CWI-220GF
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

Durable And High Precision GF Series Injection Molding Machine CWI-220GF

Ouchao is very strict in assembly and manufactured according to ISO9001:2005 quality control quality management system, so it can greatly increase the service life and equipment stability of the injection molding machine. Comprehensively understand the various needs of customers and provide feasible solutions to help customers choose the right model

Product Advantages

OUCO Plastic Machinery has a group of service team with rich experience and after-sales engineers with practical experience and assist customers in installation, commissioning and guidance in training operation and maintenance personnel, Lifetime maintenance of the machine, adequate supply of spare parts guarantee.

Parameters

MODEL CWI-220GF
CLAMPING UNIT clamping force (kN) 2200
Tie bar distance W×L (mm) 570*570
Max.Daylight(mm) 550
Max. mold thickness (mm) 600
Min. mold thickness(mm) 220
Platen Dimensions W×L (mm) 830*830
Ejector Stroke(mm) 170
Ejector Force(Kn) 80
Ejector Quantily 9
Injection unit 650I 860I
Injection Unit Screw Diameter(mm) 40 45 45 50
Screw L/D ratio 24 21 23 21
Theoretical injection volume (cm3) 251 318 358 442
Shot Weight (PS) g 231 292 329 406
Injection Pressure(MPa) 256 202 256 207
Injection Speed (mm/s) 228 180
Injection Rate (cm3/s) 286 363 286 354
Screw Speed (rpm) 400 350
Other Motor Power (Kw) 48
pump capacity(L/min) 275
Heater Power (Kw) 10.9 13
Machine Weight (kg) 7.5
Machine size L×W×H (mm) 5830*1640*1870

Detail Pictures

Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine

Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine
Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine

Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine

Company Profile

Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine

Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine

Durable Servo Motor Injection Molding Machine GF Series Injection Molding Machine
