Specifications
Brand Name :
OUCO
Model Number :
OUCO-CWI-350GB
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
1 months
Packaging Details :
Nude
Product Name :
350 Ton Injection Blow Molding Machine With Plastic Melting Fast Screw
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

350 Ton Injection Blow Molding Machine With Plastic Melting Fast Screw

The plasticizing unit adopts high-quality material barrel and screw, the plastic melts quickly and reduces the melting time. The design of the connection between the nozzle and the front flange is located inside, which makes the machine and the mold have a better connection, and it is not easy to leak during injection molding, and it can be injected at high speed even under high pressure.

Product parameters

ModelCWI-280GBCWI-350GB
Clamping Device锁模力 KnClamping Force28003500
拉杆间距 mmSpace Between Tie-bars630×630710×710
开模最大开距 mmClamping Stroke600680
最大模厚 mmMould Thickness Max650720
最小模厚 mmMould Thickness Min240260
模板尺寸 mmSize of Platen915×9151020×1020
顶出长度 mmEjector Stroke170200
顶出力 KnEjector Force8080
顶针数Ejector Quantily1313
1100D1700D1700D2800D
Injection Device螺杆直径 mmScrew Diameter5055605570606570707580
螺杆长径比Screw L/D ratio23.32123.12119.522.82119.522.32119.8
理论射胶容积 cm3Shot Size48758982096211158209621115138515901809
注射重量 (PS)gShot Weight44854275488510267548851026127414621664
注塑压力 MpaInjection Pressure231191215183158215183158204178156
注射速度 mm/sInjection Speed1289512195
注塑速率 cm3/sInjection Rate251304268315365341400464365419477
螺杆最大转速 rpmScrew Speed220180200160
Else油泵电机功率 KwMotor Power3648
油泵排量 L/min 220275
电热功率 KwHeater Power15.922.422.430.2
机器净重 tonMachine Weight11.813
机器尺寸(长×宽×高) mmMachine Dimension6375×1650×22506750×1920×2350

Advantage of the improved clamping unit and machine structure:
Platen design by finite element analysis to eliminate deformation and fracture and optimise toggle locking system.


Vertical screen can display more data in the main screen simultaneously, different from traditional display

SGS 350 Ton Injection Blow Molding Machine Plastic Melting Fast Screw
SGS 350 Ton Injection Blow Molding Machine Plastic Melting Fast Screw

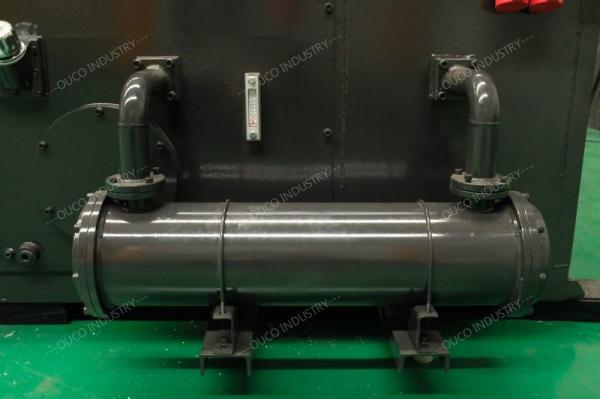

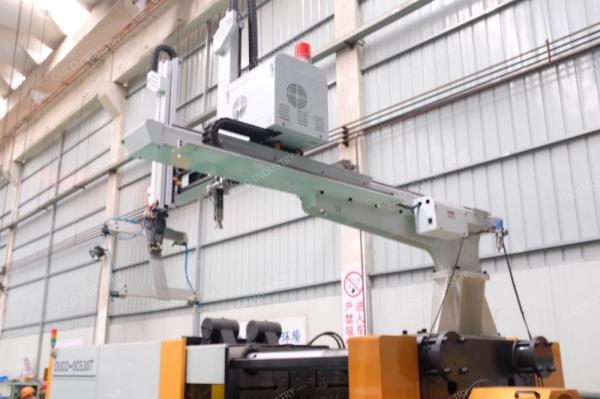

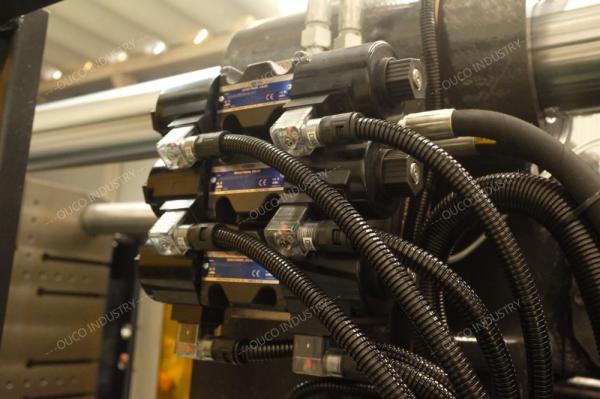

Detail Pictures
