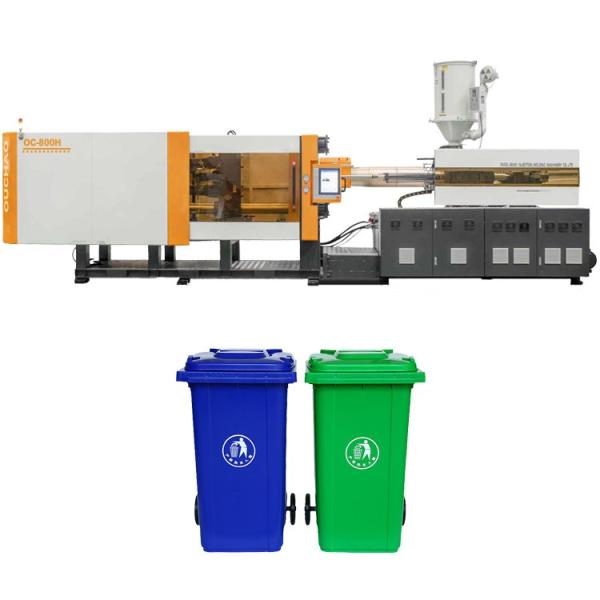

OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
Specifications
Brand Name :
OUCO
Model Number :
OCM-800S
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans

OUCO is people-oriented, focuses on scientific and technological innovation, and constantly introduces advanced talents to energize the enterprise. With simple and practical design, it becomes your right-hand man for injection molding manufacturing. We are experienced in machining and have our own finishing center equipment. with more than 30 years of experience, we integrate design, production and manufacturing to provide you with a complete set of perfect quality services. Our models range from 280T-800T, your satisfaction is our goal!
Features and advantages:
1. The whole machine model is designed according to ergonomics, the machine appearance and operation performance is more humanized.
2. After the optimization of the whole machine, the opening and locking speed is faster, smoother, and the rigidity of the whole machine has been greatly improved.
3. The injection table base adopts whole casting molding, which is suitable for plasticizing components with different L/D ratios and makes the modular combination of the machine more convenient.
The structure design of enlarged injection cylinder or double injection cylinder can effectively prevent the nozzle from leaking.

Product Advantages

1. Advantages of the template: The rigidity of the template and connecting rod is further improved to meet the production requirements under high strength, high load and high precision conditions. Meanwhile, it is compatible with the ejector rod design of forced reset mold.
2. Advantages of injection table: The movable bridge type injection table base is suitable for plasticizing parts with different L/D ratios.
3. Advantage of injection guide sleeve: All the injection guide sleeve adopts non-lubricated graphite sleeve, which reduces the frequency of adding lubricant to the sleeve and effectively improves the cleanliness of the injected parts.
4. Advantages of computer: The whole series adopt Taiwan industrial automation control system, which can accurately control the production process and monitor in real time.

Parameters

MODEL OCM-800S
Clamping force (kN) 800
Space between tie bar (mm*mm) 1070*970
Max. mold thickness (mm) 1200
Min. mold thickness(mm) 500
Opening stroke (mm) 2500
Ejector stroke(mm) 280
Ejector force forward(Kn) 212
Screw diameter(mm) 75
Screw L/D ratio 21
Theoretical injection volume (cm3) 1590
Shot weight (PS) g 1462
Injection pressure(MPa) 178
Injection speed (mm/s) 170
Injection rate (g/s) 750
Motor power (Kw) 107.5
Oil tank capacity(L) 900
Heater power (Kw) 30.02
Machine Weight (kg) 35
Machine size L×W×H (mm) 9400*2600*2600

Detail Pictures
OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash CansOUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash CansOUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans

OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
Company Profile
OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
OUCO 800T Orange Servo Motor Injection Molding Machine For Manufacturing Trash Cans
