Specifications
Brand Name :
OUCO
Model Number :
OUCO-600T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
Wuxi,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 Months
Packaging Details :
Nude
Product Name :
600 T Servo Motor Injection Molding Machine Factory With Excellent Acceleration Performance
Plastic Processed :
PP,PC,PVC
Applicable :
Manufacturing Plant,Food&Beverage
Type :
Automation
Warranty :
1 Year
Machinery :
Provided
Selling Points :
Competitive Price
Video Outgoing-inspection :
Provided
Machine Style :
Horizontal
Condition :
New
Lead Time :
About 50 Days
Description

600 T Servo Motor Injection Molding Machine Factory With Excellent Acceleration Performance

OUCO is a factory focusing on the research and development of small injection molding machines. The injection molding machines we produce are efficient, energy-saving and intelligent equipment.

The Advantage Of OUCO Machine

1. Modular injection unit with excellent acceleration performance

2. High-speed machine tool high stiffness clamping unit.

3. High response and low noise hydraulic system.

4. Optimized control system with good response and accuracy for hybrid motors

Technical Parameter

OUCO-600T
Clamping Unit
Clamping force kN 6000
Moving mould-plate stroke mm 870
Max.Mould height mm 900
Min.Mould height mm 350
Space between tie-bars mm 900x850
Hydraulic ejector force kN 200
Hydraulic ejector stroke mm 260
Ejector number n 17
Injection Unit i1600 I2300 I2700
Screw diameter mm 60 65 70 65 70 75 70 75 80
Screw LD ratio LD 21.6 20 20 21.5 20 20 21.4 20 20
lnjection capacity in theory Cm³ 791 929 1078 1128 1308 1502 1308.47 1502.07 1709.03
Injection weight(PS) g 720 845 980 1027 1191 1367 1190.71 1366.89 1555.21
Injection pressure bar 2133 1800 1552 2088 1800 1568 2066.33 1800 1582.03
Injection velocity mm/s 350 350 350
Plasticizing capacity g/s 75 90 105 90 105 120 112 125 145
Screw speed rpm 400 400 400
Other
Pump pressure MPa 17.5
Motor/Driving power kW 45(注)+30(熔)+30+30(油) 45(注)+30(熔)+30+30(油) 45(注)+30(熔)+30+30(油)
Heating capacity kW 28 30 34.86
Machine dimension m 8.79x2.14x2.57 9.51x2.27x2.65 9.61x3.34x2.83
Machine weight t 26 28 29
oil tank capacity L 969

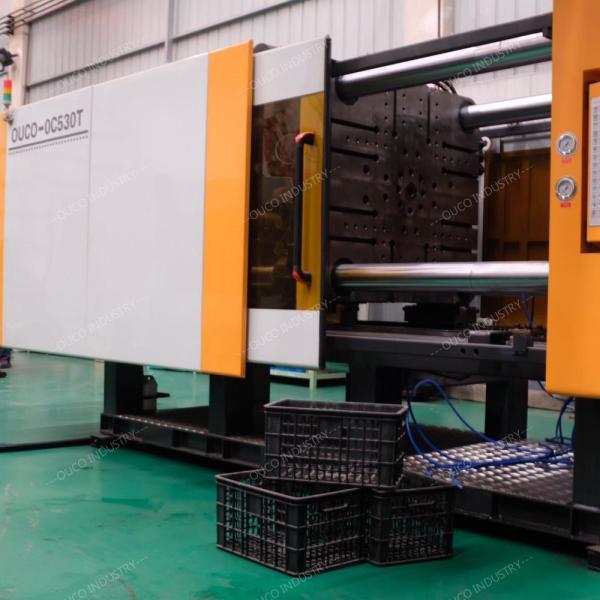

Detail Pictures

SGS 600 Ton Automated Injection Molding Machine Excellent Acceleration Performance

SGS 600 Ton Automated Injection Molding Machine Excellent Acceleration Performance
