Specifications
Brand Name :
OUCO
Model Number :
OUCO-520T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
Wuxi,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
520 T Servo Hybrid Injection Molding Machine With Ultra-High Rigidity Square Plate + Tie Bar Structure Design
Plastic Processed :
PP,PC,PVC
Applicable :
Manufacturing Plant,Food&Beverage
Type :
Automation
Warranty :
1 Year
Machinery :
Provided
Selling Points :
Competitive Price
Video Outgoing-inspection :
Provided
Machine Style :
Horizontal
Condition :
New
Lead Time :
About 50 Days
Description

520 T Servo Hybrid Injection Molding Machine With Ultra-High Rigidity Square Plate + Tie Bar Structure Design

Product details

The series hybrid injection molding machine is based on all-electric injection molding machine (injection rate: 500mm/s) and high-speed machine . It combines with the clamping parts of the high-speed machine and the injection parts of the all-electric machine, taking into account the need for energy saving and environmental protection. It meets the requirements of this product for large clamping force and high performance injection unit. (Mold opening and filling are performed simultaneously.

Product Description:

1. Modular injection unit with excellent acceleration performance

2. High-speed machine tool high stiffness clamping unit.

3. High response and low noise hydraulic system.

4. Optimized control system with good response and accuracy for hybrid motors

The above translation results are from Youdao Neural Network Translation (YNMT) - General Domain

Sentence-by-sentence comparison

Technical Parameter

OUCO-520T
Clamping Unit
Clamping force kN 5200
Moving mould-plate stroke mm 780
Max.Mould height mm 800
Min.Mould height mm 320
Space between tie-bars mm 820x770
Hydraulic ejector force kN 197
Hydraulic ejector stroke mm 200
Ejector number n 13
Injection Unit i1400 i1600 I2300
Screw diameter mm 55 60 60 60 65 70 65 70 75
Screw LD ratio LD 21.8 20 20 21.6 20 20 21.5 20 20
lnjection capacity in theory Cm³ 665 791 929 791 929 1078 1128 1308 1502
Injection weight(PS) g 605 720 845 720 845 980 1027 1191 1367
Injection pressure bar 2142 1800 1534 2113 1800 1552 2088 1800 1568
Injection velocity mm/s 350 350 350
Plasticizing capacity g/s 60 75 90 75 90 105 90 105 120
Screw speed rpm 400 400 400
Other
Pump pressure MPa 17.5
Motor/Driving power kW 45(注)+23(熔)+23+23(油) 445(注)+23(熔)+23+23(油) 45(注)+23(熔)+23+23(油)
Heating capacity kW 28 28 28
Machine dimension m 8.13x2.09x2.32 8.23x2.00x2.06 8.48x2.00x2.15
Machine weight t 17.5 22.3 23
oil tank capacity L 650

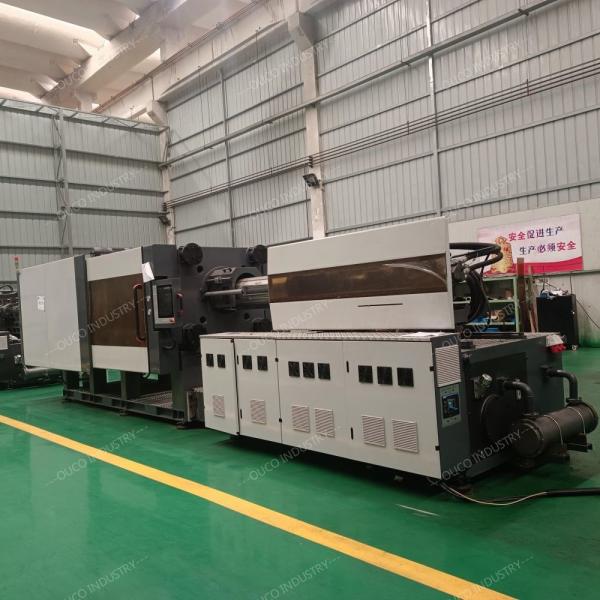

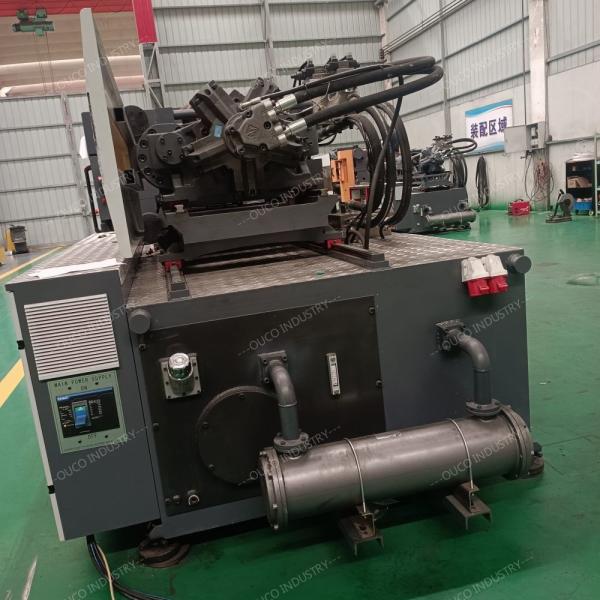

Detail Pictures

520 T Hybrid Servo Motor Injection Molding Machine Ultra High Rigidity Square Plate

520 T Hybrid Servo Motor Injection Molding Machine Ultra High Rigidity Square Plate
