Specifications
Brand Name :
OUCO
Model Number :
OUCO-350T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
HIGH Speed Small Injection Molding Machine for Sale, Standard Electrical
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

HIGH Speed Small Injection Molding Machine for Sale, Standard Electrical

Product Details: The series hybrid injection molding machine is based on all-electric injection molding machine (injection rate: 500mm/s) and high-speed machine . It combines with the clamping parts of the high-speed machine and the injection parts of the all-electric machine, taking into account the need for energy saving and environmental protection. It meets the requirements of this product for large clamping force and high performance injection unit. (Mold opening and filling are performed simultaneously.)

Product Description

1. Modular injection unit with excellent acceleration performance

2. High-speed machine tool high stiffness clamping unit.

3. High response and low noise hydraulic system.

4. Optimized control system with good response and accuracy for hybrid motors

Product Parameters

OUCO-350T
Clamping Unit
Clamping force kN 3500
Moving mould-plate stroke mm 630
Max.Mould height mm 650
Min.Mould height mm 250
Space between tie-bars mm 710x660
Hydraulic ejector force kN 137
Hydraulic ejector stroke mm 180
Ejector number n 13
Injection Unit i900 i1000 i1400
Screw diameter mm 45 50 55 50 55 60 55 60 65
Screw LD ratio LD 22.2 20 20 22 20 20 21.8 20 20
lnjection capacity in theory Cm³ 381 471 570 471 570 678 665 791 929
Injection weight(PS) g 347 428 518 428 518 617 605 720 845
Injection pressure bar 2469 2000 1653 2178 1800 1513 2142 1800 1534
Injection velocity mm/s 350 350 350
Plasticizing capacity g/s 30 42 50 42 50 60 50 60 75
Screw speed rpm 400 400 400
Other
Pump pressure MPa 17.5
Motor/Driving power kW 37(注)+23(熔)+23(油) 37(注)+23(熔)+23(油) 37(注)+23(熔)+23(油)
Heating capacity kW 16.83 20.3 24.3
Machine dimension m 7.32x1.88x2.21 7.32x1.88x2.21 7.32x1.88x2.28
Machine weight t 13.2 13.5 14.1
oil tank capacity L 530

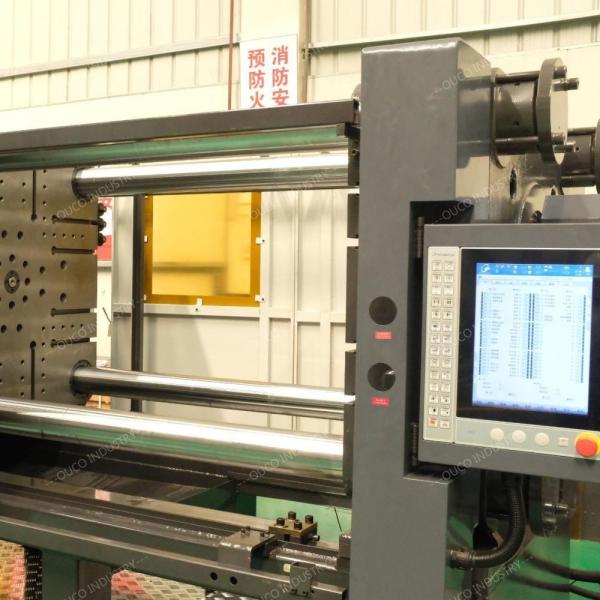

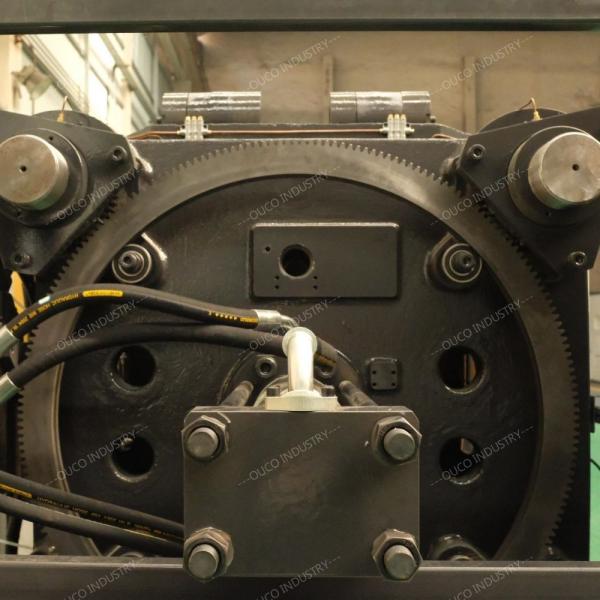

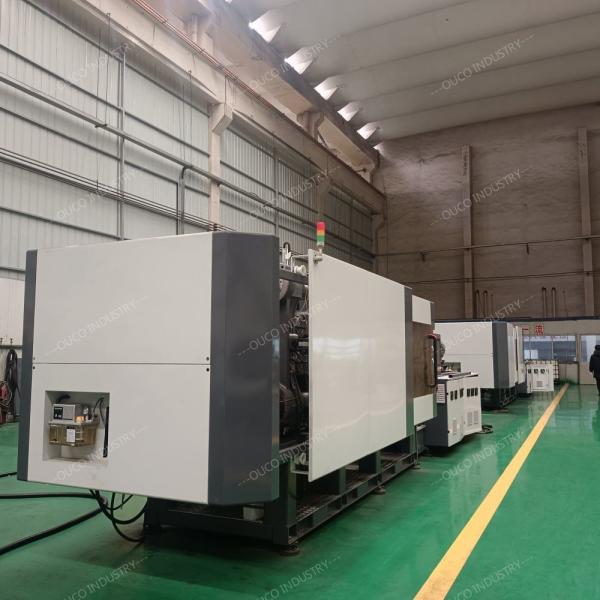

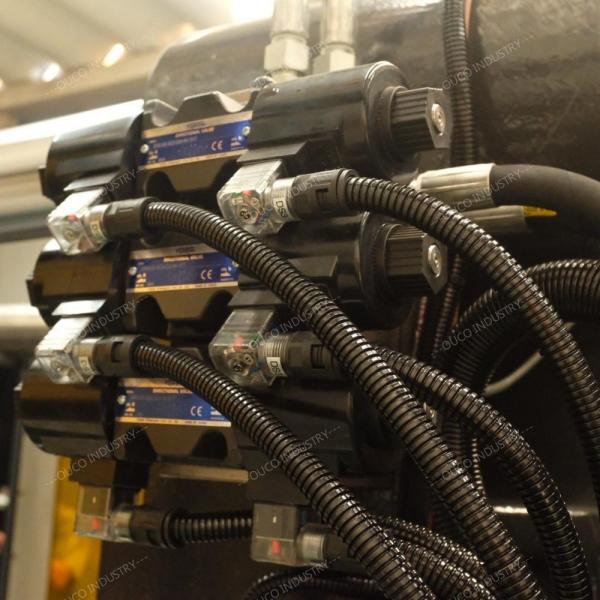

Detail Pictures

High Speed SGS Servo Motor Injection Molding Machine Standard ElectricalHigh Speed SGS Servo Motor Injection Molding Machine Standard Electrical

High Speed SGS Servo Motor Injection Molding Machine Standard Electrical

High Speed SGS Servo Motor Injection Molding Machine Standard Electrical

Company Profile

High Speed SGS Servo Motor Injection Molding Machine Standard Electrical

High Speed SGS Servo Motor Injection Molding Machine Standard Electrical

High Speed SGS Servo Motor Injection Molding Machine Standard Electrical
