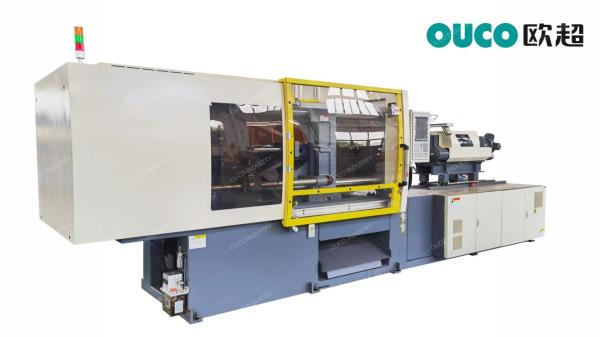

5-Stage Segmented Precision Fast High Speed Injection Molding Machine CWI-180GF
5-Stage Segmented Precision Fast High Speed Injection Molding Machine CWI-180GF
Specifications
Brand Name :
OUCO
Model Number :
OUCO-CWI-180GF
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
5-stage Segmented Precision Fast Injection Molding Machine CWI-180GF
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

5-stage Segmented Precision Fast Injection Molding Machine CWI-180GF

OUCO CWI-180GF adopt the linear displacement sensor of Italian Gefran brand and open/close mold and injection are controlled by five stages, so it can make our GF series injection molding machine's action precision very accurate. Our formwork is lubricated with glycerin, so it is not easy to have glue leakage. High pressure and high speed production environment will not easily cause cracking of the premise.

Product Advantages

Our European computer control unit has high speed CPU and DSP module and it increases high control to analogue output module, back plane module, bus module etc. and has fast response.

Parameters

MODEL CWI-180GF
CLAMPING UNIT clamping force (kN) 1800
Tie bar distance W×L (mm) 520
Max.Daylight(mm) 450
Max. mold thickness (mm) 520
Min. mold thickness(mm) 170
Platen Dimensions W×L (mm) 680*680
Ejector Stroke(mm) 140
Ejector Force(Kn) 53
Ejector Quantily 5
Injection unit 420I 650I
Injection Unit Screw Diameter(mm) 35 40 40 45
Screw L/D ratio 24 21 24 21
Theoretical injection volume (cm3) 163 214 251 318
Shot Weight (PS) g 150 196 231 293
Injection Pressure(MPa) 256 196 256 202
Injection Speed (mm/s) 238 182
Injection Rate (cm3/s) 229 229 229 290
Screw Speed (rpm) 400 400
Other Motor Power (Kw) 36
pump capacity(L/min) 220
Heater Power (Kw) 8.9 10.9
Machine Weight (kg) 6.5
Machine size L×W×H (mm) 5455x1620x1820
